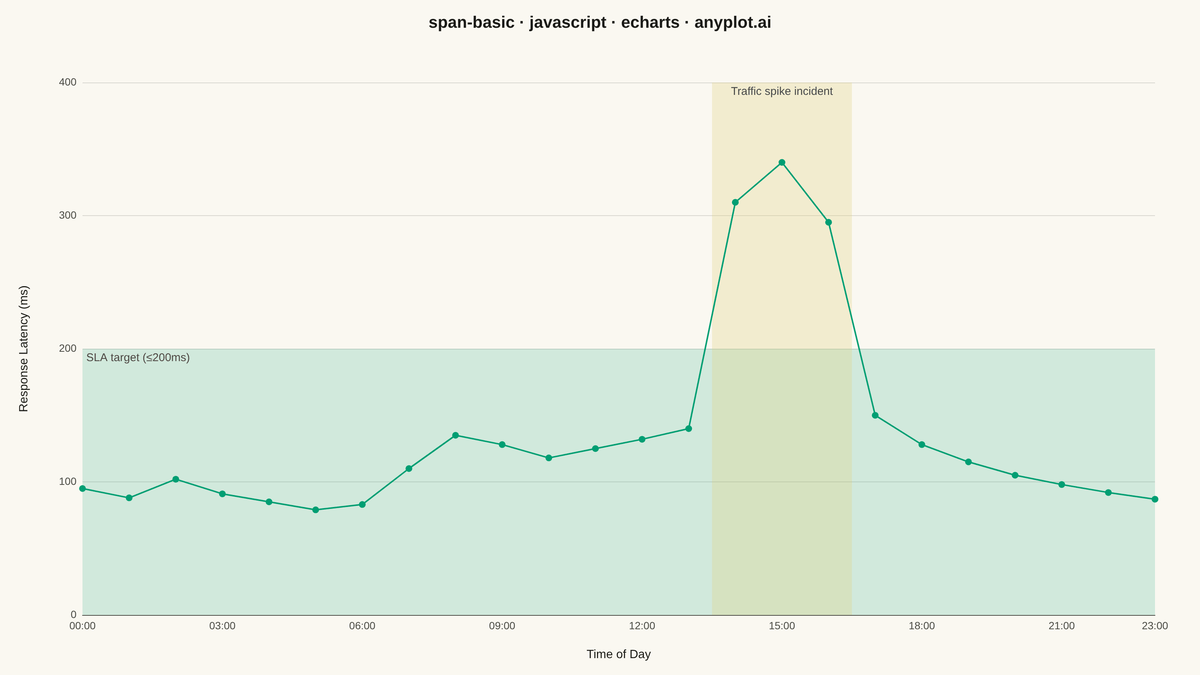

A span plot highlights a specific region of interest on a chart using a shaded rectangular area that spans the full height or width of the plot. Vertical spans mark ranges along the x-axis (e.g., time periods), while horizontal spans mark ranges along the y-axis (e.g., value thresholds). The semi-transparent fill allows underlying data to remain visible while drawing attention to the highlighted region.
// anyplot.ai
// span-basic: Basic Span Plot (Highlighted Region)
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-07-25
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ---------------------------------------
// Hourly server response latency (ms) over one day, with a traffic-spike incident.
const hours = Array.from({ length: 24 }, (_, i) => i);
const latencyMs = [
95, 88, 102, 91, 85, 79, 83, 110, 135, 128, 118, 125, 132, 140, 310, 340, 295,
150, 128, 115, 105, 98, 92, 87,
];
const readings = hours.map((h, i) => [h, latencyMs[i]]);
// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -----------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "span-basic · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22 },
},
grid: { left: 110, right: 60, top: 110, bottom: 80 },
xAxis: {
type: "value",
name: "Time of Day",
nameLocation: "middle",
nameGap: 45,
nameTextStyle: { color: t.ink, fontSize: 16 },
min: 0,
max: 23,
interval: 3,
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: (v) => `${String(Math.round(v)).padStart(2, "0")}:00`,
},
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
name: "Response Latency (ms)",
nameLocation: "middle",
nameGap: 70,
nameTextStyle: { color: t.ink, fontSize: 16 },
min: 0,
max: 400,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { show: false },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
type: "line",
data: readings,
symbol: "circle",
symbolSize: 9,
lineWidth: 3,
itemStyle: { color: t.palette[0] },
lineStyle: { color: t.palette[0] },
markArea: {
silent: true,
label: { show: true, formatter: "{b}", color: t.inkSoft, fontSize: 15 },
data: [
[
{
name: "SLA target (≤200ms)",
yAxis: 0,
label: { position: "insideTopLeft" },
itemStyle: { color: t.palette[0], opacity: 0.16 },
},
{ yAxis: 200 },
],
[
{
name: "Traffic spike incident",
xAxis: 13.5,
label: { position: "insideTop" },
itemStyle: { color: t.amber, opacity: 0.28 },
},
{ xAxis: 16.5 },
],
],
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/span-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "span-basic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/span-basic/javascript/echarts",
"hub": "https://anyplot.ai/span-basic",
"code_json": "https://api.anyplot.ai/specs/span-basic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/span-basic",

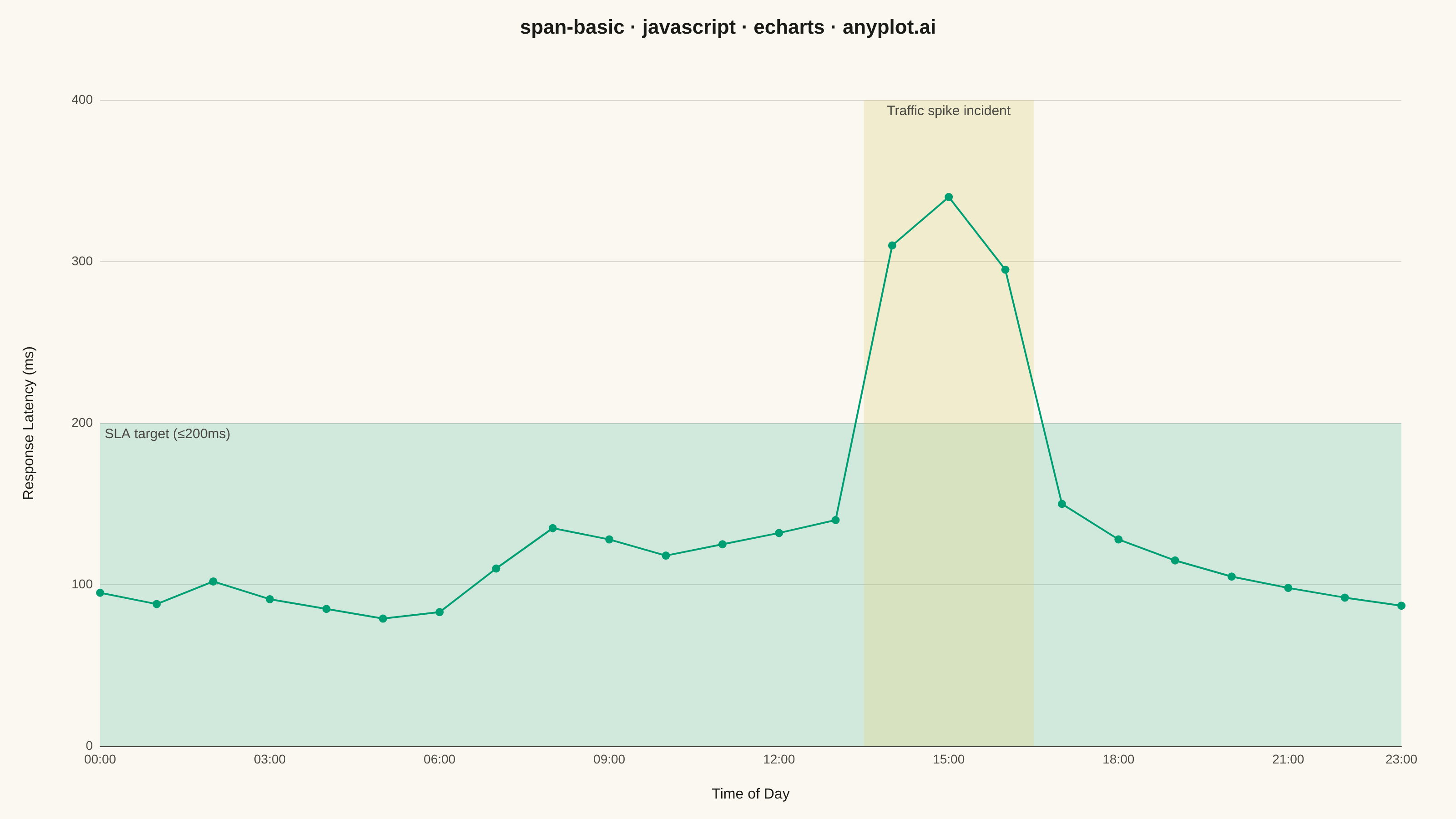

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/span-basic/javascript/echarts/plot-light.png",

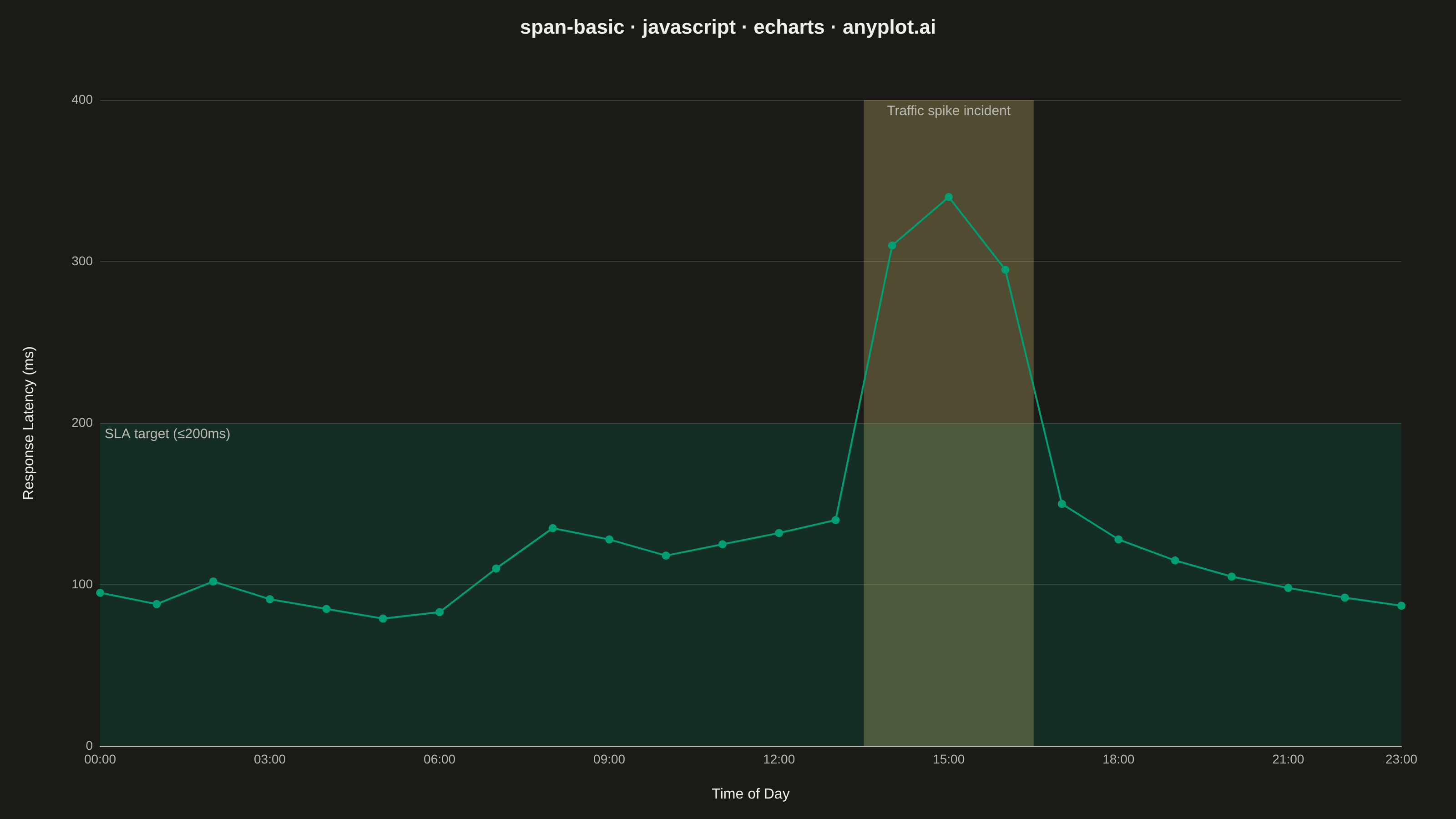

"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/span-basic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/span-basic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/span-basic/javascript/echarts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Span Plot (Highlighted Region) on anyplot.ai.
