Basic Swarm Plot — lets-plot

A swarm plot (beeswarm plot) displays individual data points for categorical comparisons, with points spread horizontally to avoid overlap. This reveals the full distribution shape and density while preserving exact values - combining the benefits of strip plots (individual points) and violin plots (density visualization). Ideal when you need to see every observation rather than just summary statistics.

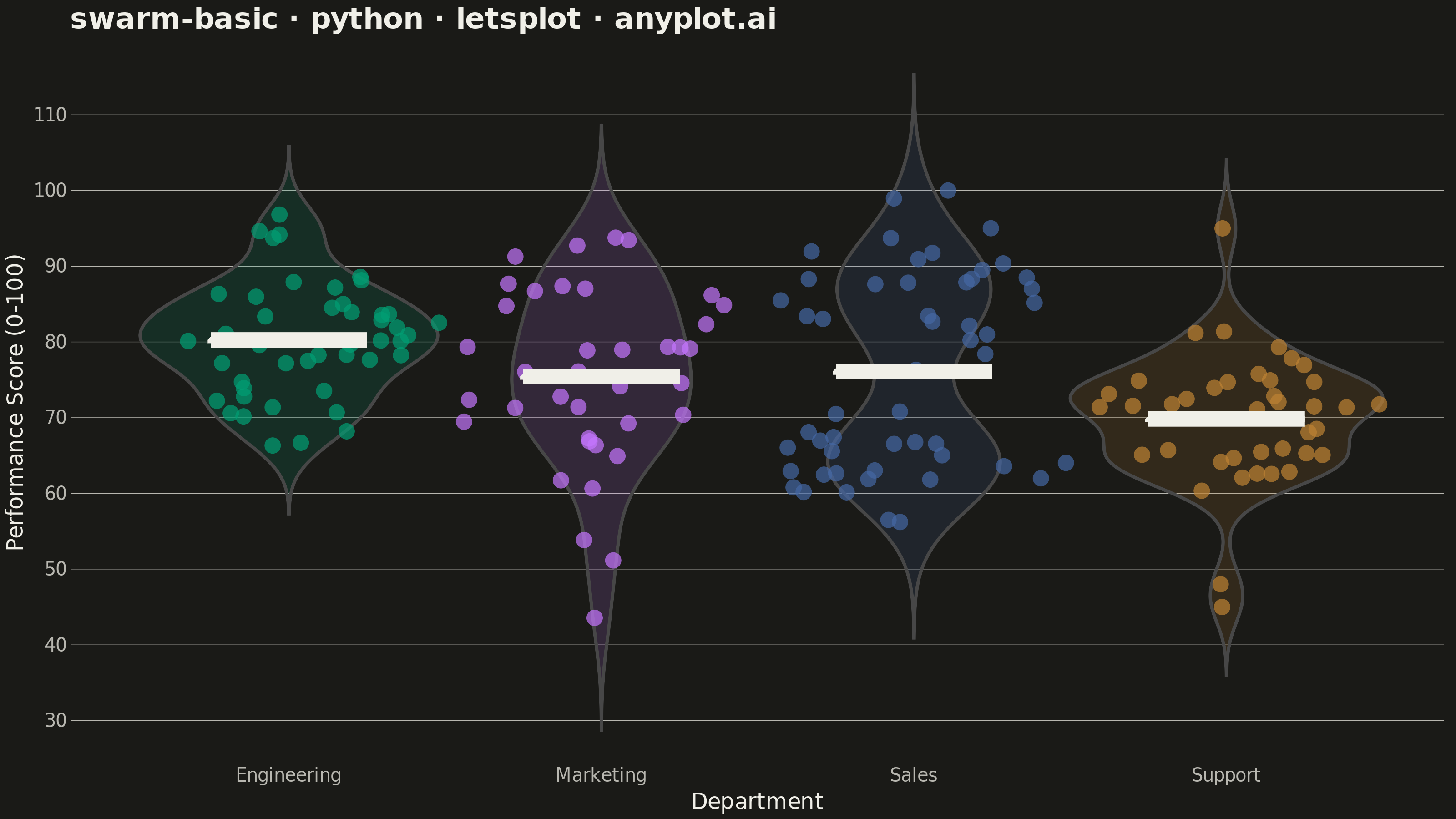

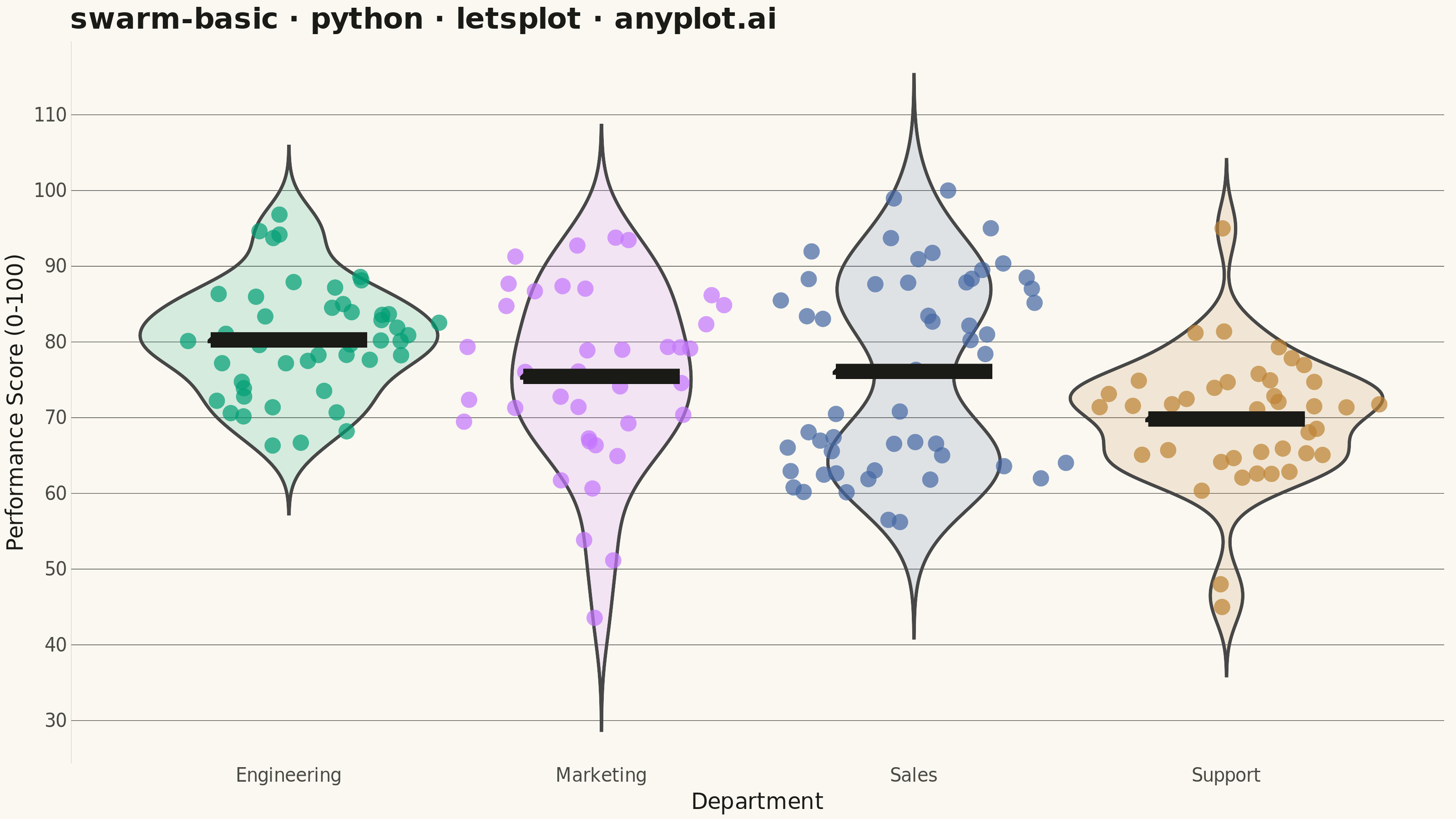

Basic Swarm Plot rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
swarm-basic: Basic Swarm Plot
Library: letsplot 4.11.0 | Python 3.13.14
Quality: 93/100 | Updated: 2026-07-26
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_crossbar,
    geom_sina,
    geom_violin,
    ggplot,
    ggsave,
    ggsize,
    labs,
    scale_color_manual,
    scale_fill_manual,
    theme,
    theme_minimal,
)


LetsPlot.setup_html()

# Theme-adaptive chrome tokens (Imprint palette + surface tokens)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data - Performance scores across departments
np.random.seed(42)

departments = ["Engineering", "Marketing", "Sales", "Support"]
n_per_group = [45, 38, 52, 40]

data = []
for dept, n in zip(departments, n_per_group, strict=True):
    if dept == "Engineering":
        # Higher scores, moderate spread
        scores = np.random.normal(82, 8, n)
    elif dept == "Marketing":
        # Mid-range scores, wider spread
        scores = np.random.normal(75, 12, n)
    elif dept == "Sales":
        # Bimodal distribution (high and low performers)
        scores = np.concatenate([np.random.normal(65, 6, n // 2), np.random.normal(88, 5, n - n // 2)])
    else:  # Support
        # Lower average, tight distribution with some outliers
        scores = np.concatenate([np.random.normal(70, 6, n - 3), [45, 48, 95]])

    scores = np.clip(scores, 0, 100)
    for score in scores:
        data.append({"Department": dept, "Performance Score": score})

df = pd.DataFrame(data)

# Calculate means for each department
means = df.groupby("Department")["Performance Score"].mean().reset_index()
means.columns = ["Department", "mean"]

title = "swarm-basic · python · letsplot · anyplot.ai"

# Plot
plot = (
    ggplot(df, aes(x="Department", y="Performance Score"))
    + geom_violin(aes(fill="Department"), alpha=0.15, trim=False, show_legend=False)
    + geom_sina(aes(color="Department", fill="Department"), size=4, alpha=0.7, seed=42, scale="width")
    + geom_crossbar(aes(x="Department", y="mean", ymin="mean", ymax="mean"), data=means, width=0.5, size=1.5, color=INK)
    + scale_color_manual(values=IMPRINT_PALETTE)
    + scale_fill_manual(values=IMPRINT_PALETTE)
    + labs(x="Department", y="Performance Score (0-100)", title=title)
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_border=element_blank(),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        plot_title=element_text(size=16, face="bold", color=INK),
        axis_title=element_text(size=12, color=INK),
        axis_text=element_text(size=10, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        legend_position="none",
        panel_grid_major_x=element_blank(),
        panel_grid_minor=element_blank(),
        panel_grid_major_y=element_line(color=INK_SOFT, size=0.3),
    )
    + ggsize(800, 450)
)

# Save PNG (scale=4 gives 3200x1800)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)

# Save HTML for interactive version
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Basic Swarm Plot on anyplot.ai.
