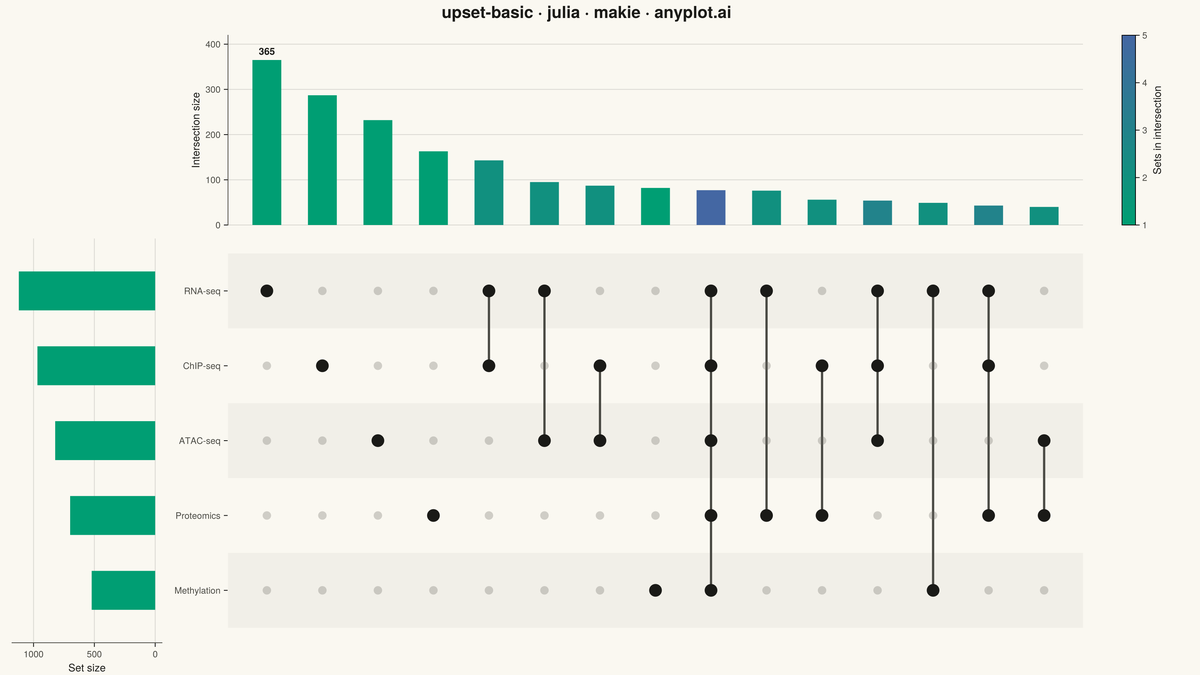

An UpSet plot visualizes intersections of multiple sets using a matrix-based layout that scales far better than Venn diagrams beyond 3 sets. A horizontal bar chart shows individual set sizes, a dot-matrix indicates which sets participate in each intersection, and a vertical bar chart above shows the intersection cardinality. This is the modern standard for set intersection analysis, making complex overlaps between many sets immediately readable.
# anyplot.ai
# upset-basic: UpSet Plot for Multi-Set Intersection Analysis
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 96/100 | Created: 2026-09-09
using CairoMakie
using Colors
using Random
Random.seed!(42)
# --- Theme tokens (see prompts/default-style-guide.md "Theme-adaptive Chrome") ---
const THEME = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const INK_MUTED = THEME == "light" ? colorant"#6B6A63" : colorant"#A8A79F"
const GRID_RGBA = RGBAf(INK.r, INK.g, INK.b, 0.15)
# Imprint palette (see prompts/default-style-guide.md "Categorical Palette")
const BRAND = colorant"#009E73" # position 1 — ALWAYS first series
const IMPRINT_SEQ = cgrad([colorant"#009E73", colorant"#4467A3"]) # sequential — degree encoding
# --- Data: differential-expression gene sets across sequencing experiments ---
# Most genes are assay-specific hits (drawn independently per set), but a
# "pan-omics" subset of broadly-active genes shows up across most assays —
# a realistic biological pattern that also produces genuine degree-4/5
# intersections rather than the top-15 being dominated by degree <= 3.
set_names = ["RNA-seq", "ChIP-seq", "ATAC-seq", "Proteomics", "Methylation"]
n_sets = length(set_names)
n_genes = 3000
membership_probs = [0.34, 0.27, 0.21, 0.16, 0.11]
hub_frac = 0.10 # fraction of genes that are broadly-active "pan-omics" hits
hub_prob = 0.75 # per-set membership probability for those hub genes
membership = falses(n_genes, n_sets)
for i in 1:n_genes
is_hub = rand() < hub_frac
for j in 1:n_sets
p = is_hub ? hub_prob : membership_probs[j]
membership[i, j] = rand() < p
end
end
keep = [any(view(membership, i, :)) for i in 1:n_genes]
membership = membership[keep, :]
n_elements = size(membership, 1)
# Sort sets by total size (largest drawn at the top of the matrix)
set_sizes = vec(sum(membership, dims = 1))
set_order = sortperm(set_sizes, rev = true)
set_names_sorted = set_names[set_order]
set_sizes_sorted = set_sizes[set_order]
membership = membership[:, set_order]
set_y = [n_sets - k + 1 for k in 1:n_sets] # top row = largest set
# Count occurrences of each membership pattern, keep the top 15 by size
combo_counts = Dict{Vector{Bool}, Int}()
for i in 1:n_elements
key = membership[i, :]
combo_counts[key] = get(combo_counts, key, 0) + 1
end
combos = collect(keys(combo_counts))
counts = [combo_counts[c] for c in combos]
combo_order = sortperm(counts, rev = true)
n_show = min(15, length(combos))
top_combos = combos[combo_order[1:n_show]]
top_counts = counts[combo_order[1:n_show]]
degrees = [sum(c) for c in top_combos]
deg_min, deg_max = extrema(degrees)
deg_span = max(deg_max - deg_min, 1)
bar_colors = [get(IMPRINT_SEQ, (d - deg_min) / deg_span) for d in degrees]
# --- Figure ---------------------------------------------------------------
fig = Figure(
resolution = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
Label(
fig[0, 1:3],
"upset-basic · julia · makie · anyplot.ai",
fontsize = 22,
font = :bold,
color = INK,
)
ax_bars = Axis(
fig[1, 2];
ylabel = "Intersection size",
ylabelcolor = INK,
ylabelsize = 14,
yticklabelcolor = INK_SOFT,
yticklabelsize = 12,
xticksvisible = false,
xticklabelsvisible = false,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
bottomspinevisible = false,
leftspinecolor = INK_SOFT,
ygridcolor = GRID_RGBA,
ygridvisible = true,
xgridvisible = false,
)
ax_setbars = Axis(
fig[2, 1];
xlabel = "Set size",
xlabelcolor = INK,
xlabelsize = 14,
xticklabelcolor = INK_SOFT,
xticklabelsize = 12,
yticksvisible = false,
yticklabelsvisible = false,
xreversed = true,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinevisible = false,
bottomspinecolor = INK_SOFT,
xgridcolor = GRID_RGBA,
xgridvisible = true,
ygridvisible = false,
)
ax_matrix = Axis(
fig[2, 2];
yticks = (1:n_sets, reverse(set_names_sorted)),
yticklabelcolor = INK_SOFT,
yticklabelsize = 12,
xticksvisible = false,
xticklabelsvisible = false,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinevisible = false,
bottomspinevisible = false,
ygridvisible = false,
xgridvisible = false,
)
linkxaxes!(ax_bars, ax_matrix)
linkyaxes!(ax_setbars, ax_matrix)
xlims!(ax_matrix, 0.3, n_show + 0.7)
ylims!(ax_matrix, 0.3, n_sets + 0.7)
# Intersection size bars — colored by degree (how many sets overlap)
barplot!(ax_bars, 1:n_show, top_counts; color = bar_colors, width = 0.65)
ylims!(ax_bars, 0, maximum(top_counts) * 1.15)
# Callout on the single largest intersection to sharpen the "aha"
text!(
ax_bars, 1, top_counts[1];
text = string(top_counts[1]),
align = (:center, :bottom),
offset = (0, 4),
fontsize = 13,
color = INK,
font = :bold,
)
# Set size bars — single series, brand color
barplot!(ax_setbars, set_y, set_sizes_sorted; direction = :x, color = BRAND, width = 0.65)
# Alternating row bands for readability
for k in 1:n_sets
if isodd(k)
hspan!(ax_matrix, set_y[k] - 0.5, set_y[k] + 0.5; color = (INK, 0.04))
end
end
# Dot matrix — connecting lines first, then non-member and member dots
for j in 1:n_show
combo = top_combos[j]
member_rows = [set_y[k] for k in 1:n_sets if combo[k]]
if length(member_rows) >= 2
lines!(ax_matrix, fill(j, 2), [minimum(member_rows), maximum(member_rows)];
color = INK_SOFT, linewidth = 3)
end
end
member_x = Float64[]; member_yv = Float64[]
absent_x = Float64[]; absent_yv = Float64[]
for j in 1:n_show, k in 1:n_sets
combo = top_combos[j]
if combo[k]
push!(member_x, j); push!(member_yv, set_y[k])
else
push!(absent_x, j); push!(absent_yv, set_y[k])
end
end
scatter!(ax_matrix, absent_x, absent_yv; color = (INK_MUTED, 0.3), markersize = 16)
scatter!(ax_matrix, member_x, member_yv; color = INK, markersize = 24)
Colorbar(
fig[1, 3];
limits = (deg_min, deg_max),
colormap = IMPRINT_SEQ,
label = "Sets in intersection",
labelcolor = INK,
labelsize = 14,
ticklabelcolor = INK_SOFT,
ticklabelsize = 12,
ticks = deg_min:deg_max,
width = 18,
)
colsize!(fig.layout, 1, Relative(0.14))
colsize!(fig.layout, 2, Relative(0.80))
colsize!(fig.layout, 3, Relative(0.06))
rowsize!(fig.layout, 1, Relative(0.32))
rowsize!(fig.layout, 2, Relative(0.68))
# --- Save -------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
