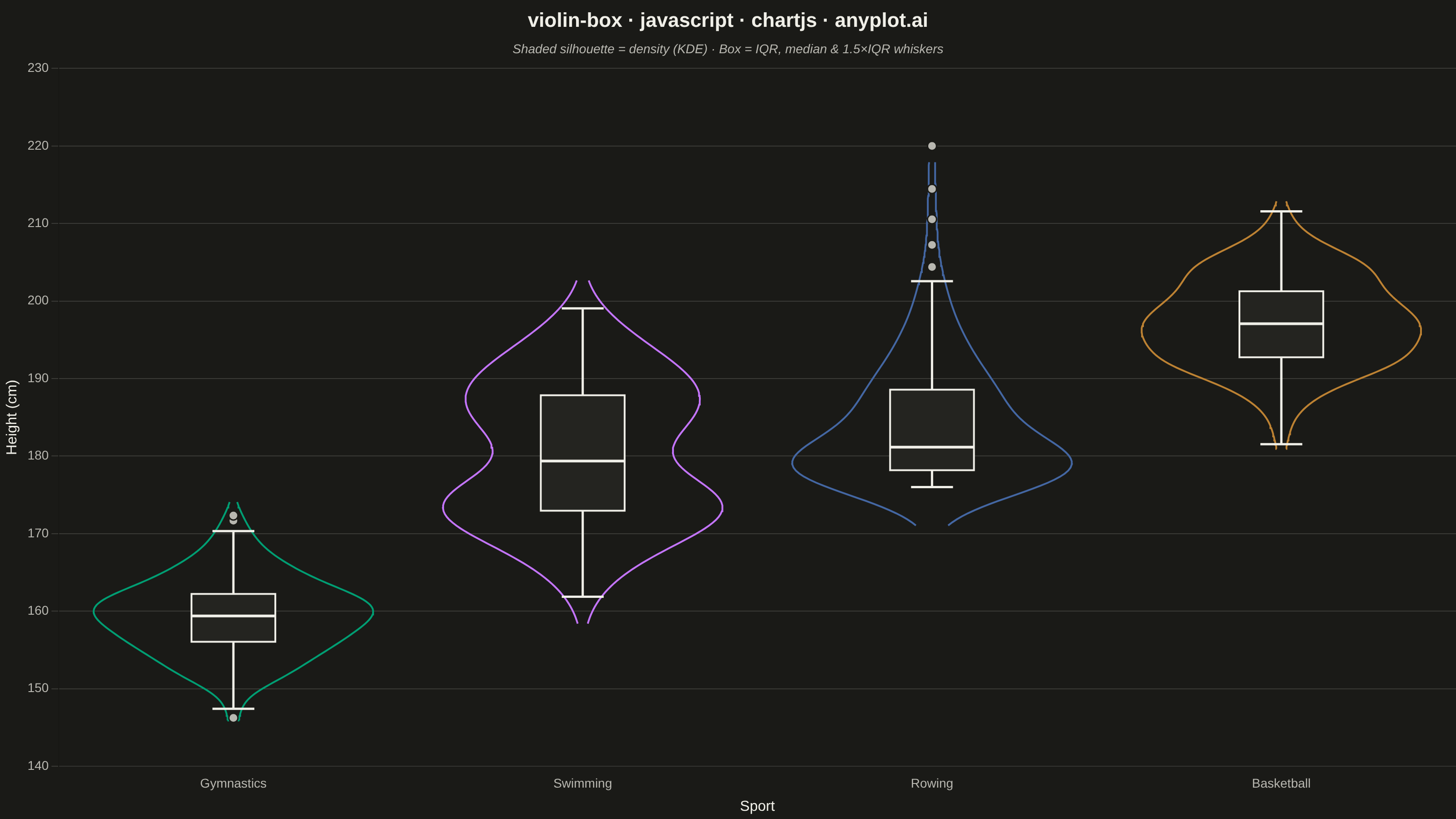

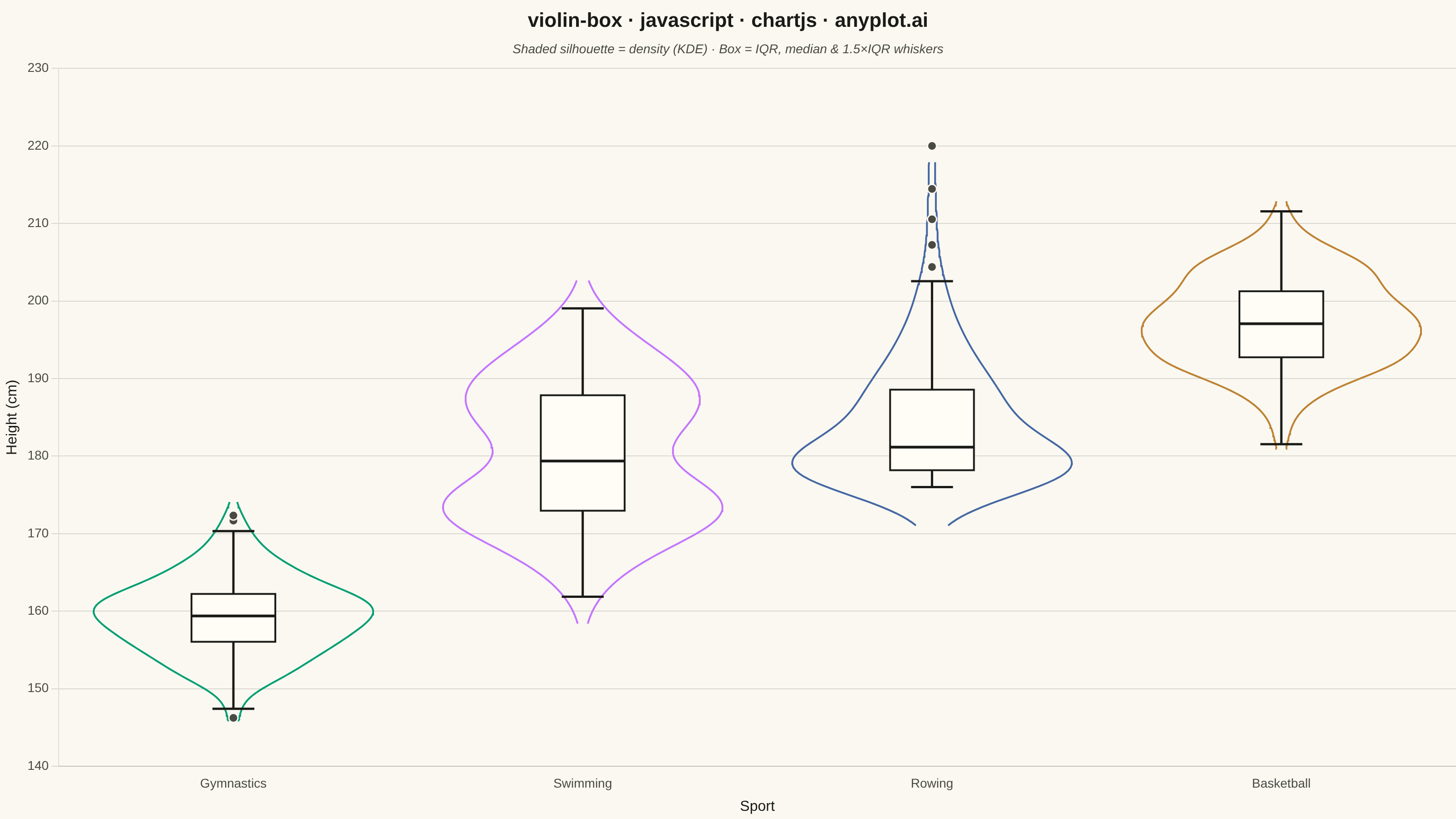

A violin plot with an embedded box plot inside, combining the distribution shape visualization (KDE) with traditional quartile statistics. Shows both the probability density and summary statistics in one plot.
// anyplot.ai
// violin-box: Violin Plot with Embedded Box Plot
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 95/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// --- Deterministic PRNG (LCG) + samplers ------------------------------------
function makeLcg(seed) {
let state = seed >>> 0;
return function next() {
state = (Math.imul(1664525, state) + 1013904223) >>> 0;
return state / 4294967296;
};
}
function randNormal(rng, mean, std) {
const u1 = Math.max(rng(), 1e-9);
const u2 = rng();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * std;
}
function randExponential(rng, rate) {
return -Math.log(1 - rng()) / rate;
}
function clamp(value, min, max) {
return Math.min(max, Math.max(min, value));
}
// --- Data: adult height (cm) across 4 sports, each a distinct shape --------
const rng = makeLcg(2026);
const sampleSize = 140;
function sampleGroup(generator) {
return Array.from({ length: sampleSize }, generator).map((v) => clamp(v, 140, 220));
}
const sportGroups = [
{ name: "Gymnastics", values: sampleGroup(() => randNormal(rng, 159, 5)) },
{
name: "Swimming",
values: sampleGroup(() => (rng() < 0.5 ? randNormal(rng, 173, 4) : randNormal(rng, 188, 4))),
},
{ name: "Rowing", values: sampleGroup(() => 176 + randExponential(rng, 1 / 9)) },
{ name: "Basketball", values: sampleGroup(() => randNormal(rng, 198, 6)) },
];
// --- Stats helpers -----------------------------------------------------------
function std(values, m) {
const variance = values.reduce((sum, v) => sum + (v - m) ** 2, 0) / (values.length - 1);
return Math.sqrt(variance);
}
function mean(values) {
return values.reduce((sum, v) => sum + v, 0) / values.length;
}
function silvermanBandwidth(values) {
return 1.06 * std(values, mean(values)) * values.length ** (-1 / 5);
}
function gaussianKde(values, evalPoints, bandwidth) {
const norm = 1 / (values.length * bandwidth * Math.sqrt(2 * Math.PI));
return evalPoints.map((point) => {
let sum = 0;
for (const v of values) {
const u = (point - v) / bandwidth;
sum += Math.exp(-0.5 * u * u);
}
return sum * norm;
});
}
function quantile(sortedValues, q) {
const idx = q * (sortedValues.length - 1);
const lower = Math.floor(idx);
const upper = Math.ceil(idx);
if (lower === upper) return sortedValues[lower];
return sortedValues[lower] + (sortedValues[upper] - sortedValues[lower]) * (idx - lower);
}
// --- Build the KDE silhouette + embedded box/whisker stats per group -------
const gridSize = 120;
const maxHalfWidth = 0.4; // groups are spaced 1 unit apart on the x-axis
const boxHalfWidth = 0.12; // fixed, narrower than the violin envelope
const violins = sportGroups.map((group, i) => {
const catX = i + 1;
const sorted = [...group.values].sort((a, b) => a - b);
const bandwidth = silvermanBandwidth(sorted);
const pad = bandwidth * 1.5;
const yMin = quantile(sorted, 0.01) - pad;
const yMax = quantile(sorted, 0.99) + pad;
const step = (yMax - yMin) / (gridSize - 1);
const evalPoints = Array.from({ length: gridSize }, (_, j) => yMin + j * step);
const density = gaussianKde(sorted, evalPoints, bandwidth);
const scale = maxHalfWidth / Math.max(...density);
const q1 = quantile(sorted, 0.25);
const median = quantile(sorted, 0.5);
const q3 = quantile(sorted, 0.75);
const iqr = q3 - q1;
const loBound = q1 - 1.5 * iqr;
const hiBound = q3 + 1.5 * iqr;
const inRange = sorted.filter((v) => v >= loBound && v <= hiBound);
const whiskerLo = inRange.length ? inRange[0] : q1;
const whiskerHi = inRange.length ? inRange[inRange.length - 1] : q3;
const outliers = sorted.filter((v) => v < whiskerLo || v > whiskerHi);
return {
catX,
left: evalPoints.map((y, j) => ({ x: catX - density[j] * scale, y })),
right: evalPoints.map((y, j) => ({ x: catX + density[j] * scale, y })),
stats: { q1, median, q3, whiskerLo, whiskerHi, outliers },
};
});
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
function hexToRgba(hex, alpha) {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
// --- Datasets: mirrored fill areas (the violin silhouette) -----------------
const datasets = [];
violins.forEach((violin, i) => {
const color = t.palette[i % t.palette.length];
const leftIdx = datasets.length;
datasets.push({
data: violin.left,
borderColor: color,
borderWidth: 2,
pointRadius: 0,
fill: false,
tension: 0,
});
datasets.push({
data: violin.right,
borderColor: color,
backgroundColor: hexToRgba(color, 0.3),
borderWidth: 2,
pointRadius: 0,
fill: leftIdx,
tension: 0,
});
});
// Round to clean tick bounds based on the raw (clamped) data range so a
// single skewed group's KDE padding can't dictate the shared axis extent.
const rawValues = sportGroups.flatMap((group) => group.values);
const rawMin = Math.min(...rawValues);
const rawMax = Math.max(...rawValues);
const axisPad = (rawMax - rawMin) * 0.08;
const yAxisMin = Math.floor((rawMin - axisPad) / 5) * 5;
const yAxisMax = Math.ceil((rawMax + axisPad) / 5) * 5;
// --- Embedded box plot: hand-drawn on top of the violin silhouettes --------
// Chart.js has no built-in violin or box-plot type; the box/whisker/outlier
// geometry inside each violin is drawn by hand with the canvas API in a
// plugin hook, using the same linear x/y scales the violin datasets sit on —
// no external chart type or plugin package.
const embeddedBoxPlugin = {
id: "embeddedBox",
afterDatasetsDraw(chart) {
const { ctx, scales } = chart;
violins.forEach((violin) => {
const s = violin.stats;
const cx = scales.x.getPixelForValue(violin.catX);
const halfWidthPx =
scales.x.getPixelForValue(violin.catX + boxHalfWidth) - scales.x.getPixelForValue(violin.catX);
const yQ1 = scales.y.getPixelForValue(s.q1);
const yQ3 = scales.y.getPixelForValue(s.q3);
const yMed = scales.y.getPixelForValue(s.median);
const yWhiskerLo = scales.y.getPixelForValue(s.whiskerLo);
const yWhiskerHi = scales.y.getPixelForValue(s.whiskerHi);
// Whiskers
ctx.save();
ctx.strokeStyle = t.ink;
ctx.lineWidth = 2.5;
ctx.beginPath();
ctx.moveTo(cx, yQ3);
ctx.lineTo(cx, yWhiskerHi);
ctx.moveTo(cx - halfWidthPx * 0.5, yWhiskerHi);
ctx.lineTo(cx + halfWidthPx * 0.5, yWhiskerHi);
ctx.moveTo(cx, yQ1);
ctx.lineTo(cx, yWhiskerLo);
ctx.moveTo(cx - halfWidthPx * 0.5, yWhiskerLo);
ctx.lineTo(cx + halfWidthPx * 0.5, yWhiskerLo);
ctx.stroke();
// Quartile box — opaque elevated fill so it reads as a distinct layer
// sitting inside the translucent violin, per the spec's "box plot
// centered inside violin" requirement.
ctx.fillStyle = t.elevatedBg;
ctx.strokeStyle = t.ink;
ctx.lineWidth = 2;
ctx.fillRect(cx - halfWidthPx, yQ3, halfWidthPx * 2, yQ1 - yQ3);
ctx.strokeRect(cx - halfWidthPx, yQ3, halfWidthPx * 2, yQ1 - yQ3);
// Median line
ctx.strokeStyle = t.ink;
ctx.lineWidth = 3;
ctx.beginPath();
ctx.moveTo(cx - halfWidthPx, yMed);
ctx.lineTo(cx + halfWidthPx, yMed);
ctx.stroke();
ctx.restore();
// Outliers
ctx.save();
ctx.fillStyle = t.inkSoft;
ctx.strokeStyle = t.pageBg;
ctx.lineWidth = 1.5;
s.outliers.forEach((v) => {
const cy = scales.y.getPixelForValue(v);
ctx.beginPath();
ctx.arc(cx, cy, 5, 0, 2 * Math.PI);
ctx.fill();
ctx.stroke();
});
ctx.restore();
});
},
};
// --- Chart -------------------------------------------------------------------
new Chart(canvas, {
type: "line",
data: { datasets },
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "violin-box · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
},
subtitle: {
display: true,
text: "Shaded silhouette = density (KDE) · Box = IQR, median & 1.5×IQR whiskers",
color: t.inkSoft,
font: { size: 14, style: "italic" },
padding: { bottom: 12 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
type: "linear",
min: 0.5,
max: sportGroups.length + 0.5,
afterBuildTicks: (axis) => {
axis.ticks = sportGroups.map((_, i) => ({ value: i + 1 }));
},
ticks: {
color: t.inkSoft,
font: { size: 14 },
callback: (value) => sportGroups[Math.round(value) - 1]?.name ?? "",
},
grid: { display: false },
title: { display: true, text: "Sport", color: t.ink, font: { size: 16 } },
},
y: {
min: yAxisMin,
max: yAxisMax,
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
title: { display: true, text: "Height (cm)", color: t.ink, font: { size: 16 } },
},
},
},
plugins: [embeddedBoxPlugin],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/violin-box/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
