Violin Plot with Embedded Box Plot — ggplot2

A violin plot with an embedded box plot inside, combining the distribution shape visualization (KDE) with traditional quartile statistics. Shows both the probability density and summary statistics in one plot.

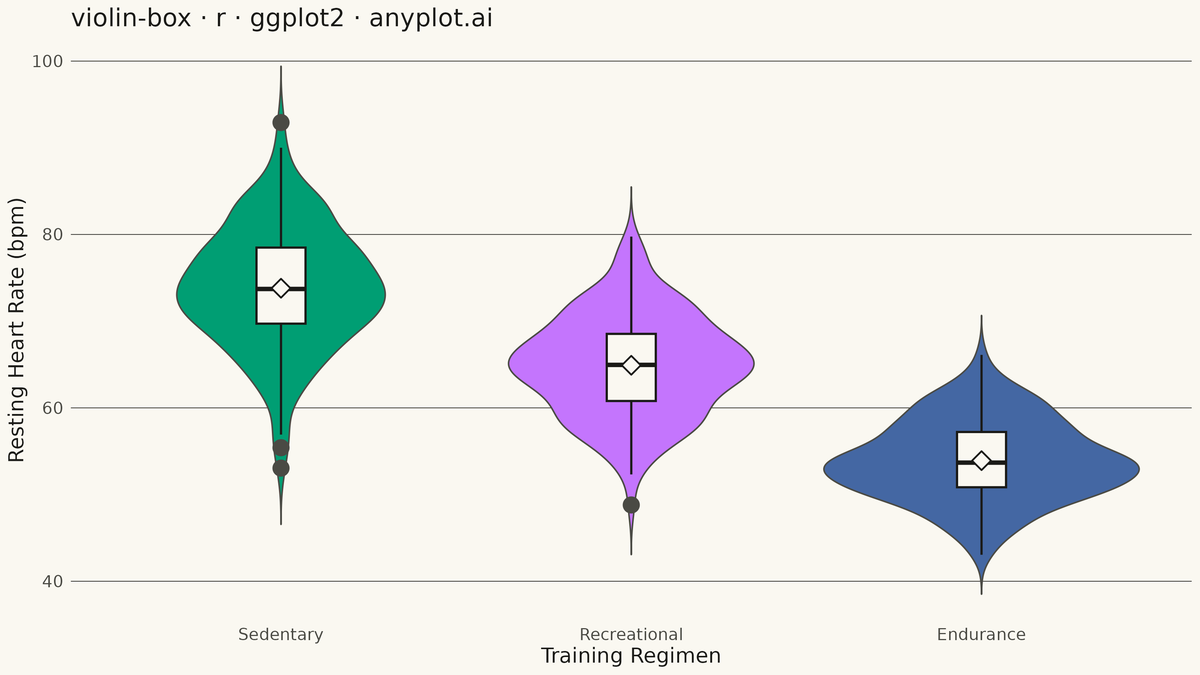

Violin Plot with Embedded Box Plot rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' violin-box: Violin Plot with Embedded Box Plot
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 91/100 | Created: 2026-09-09

library(ggplot2)
library(dplyr)
library(ragg)

set.seed(42)

# --- Theme tokens -----------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
IMPRINT_PALETTE <- c("#009E73", "#C475FD", "#4467A3", "#BD8233",
                     "#AE3030", "#2ABCCD", "#954477", "#99B314")

# --- Data ---------------------------------------------------------------
# Resting heart rate (bpm) across three training regimens
df <- bind_rows(
  tibble::tibble(group = "Sedentary",   value = rnorm(150, mean = 74, sd = 7)),
  tibble::tibble(group = "Recreational", value = rnorm(150, mean = 65, sd = 6)),
  tibble::tibble(group = "Endurance",   value = rnorm(150, mean = 54, sd = 5))
) %>%
  mutate(group = factor(group, levels = c("Sedentary", "Recreational", "Endurance")))

title_text <- "violin-box · r · ggplot2 · anyplot.ai"

# --- Plot -----------------------------------------------------------------
p <- ggplot(df, aes(x = group, y = value, fill = group)) +
  geom_violin(color = INK_SOFT, linewidth = 0.35, width = 0.9, trim = FALSE) +
  geom_boxplot(width = 0.14, color = INK, fill = PAGE_BG,
               outlier.color = INK_SOFT, outlier.size = 3.2,
               linewidth = 0.5) +
  stat_summary(fun = mean, geom = "point", shape = 23, size = 3,
               color = INK, fill = PAGE_BG, stroke = 0.6) +
  scale_fill_manual(values = IMPRINT_PALETTE) +
  labs(
    title = title_text,
    x = "Training Regimen",
    y = "Resting Heart Rate (bpm)"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background   = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background  = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major.x = element_blank(),
    panel.grid.minor  = element_blank(),
    panel.grid.major.y = element_line(color = INK, linewidth = 0.15),
    axis.title        = element_text(color = INK, size = 10),
    axis.text         = element_text(color = INK_SOFT, size = 8),
    axis.ticks        = element_blank(),
    plot.title        = element_text(color = INK, size = 12),
    legend.position   = "none"
  )

# --- Save -------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/violin-box/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "violin-box",
  "language": "r",
  "library": "ggplot2",
  "page": "https://anyplot.ai/violin-box/r/ggplot2",
  "hub": "https://anyplot.ai/violin-box",
  "code_json": "https://api.anyplot.ai/specs/violin-box/ggplot2/code",
  "spec_json": "https://api.anyplot.ai/specs/violin-box",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/violin-box/r/ggplot2/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/violin-box/r/ggplot2/plot-dark.png",
  "quality_score": 91.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Violin Plot with Embedded Box Plot on anyplot.ai.
