Violin Plot with Embedded Box Plot — plotnine

A violin plot with an embedded box plot inside, combining the distribution shape visualization (KDE) with traditional quartile statistics. Shows both the probability density and summary statistics in one plot.

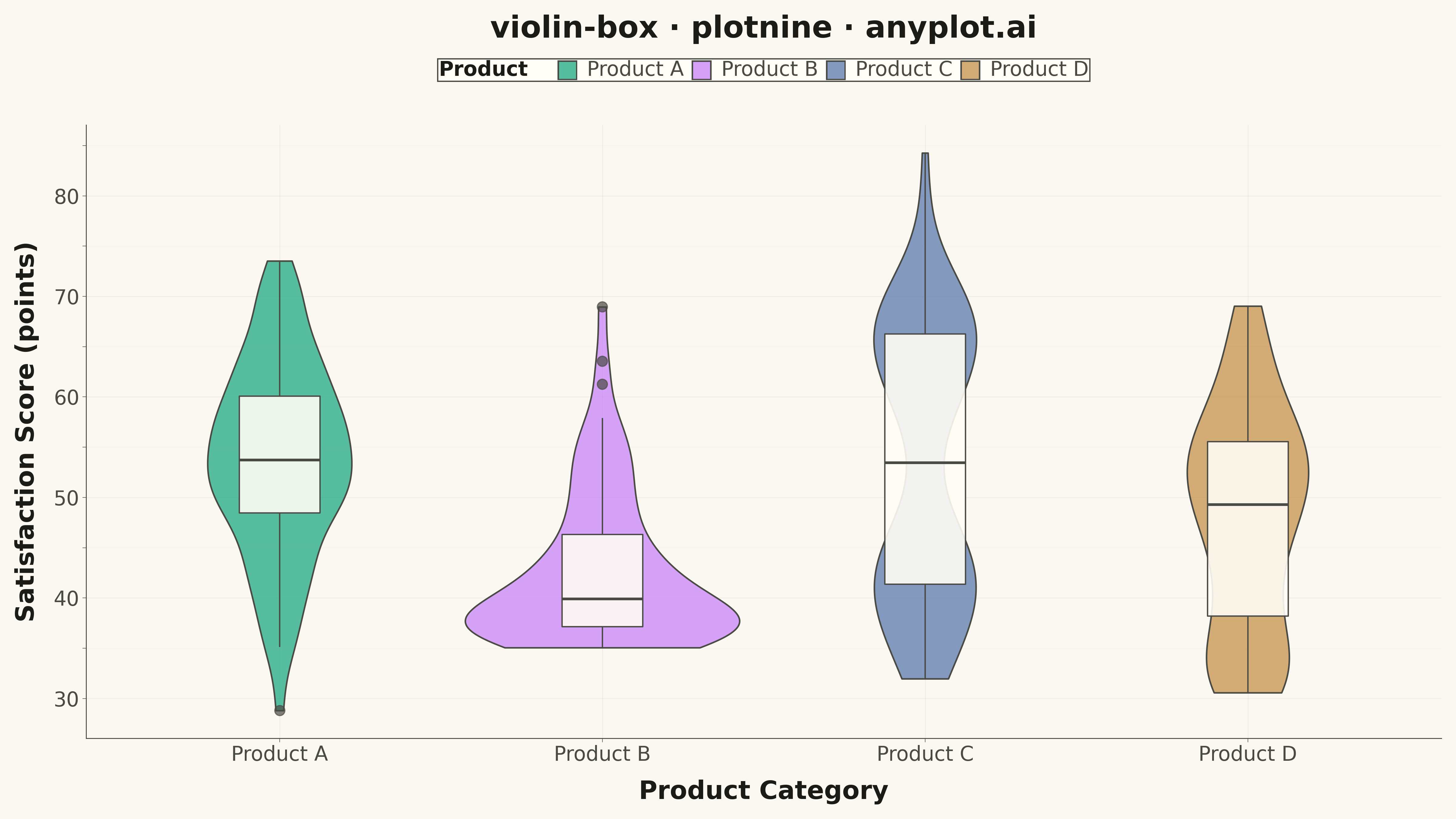

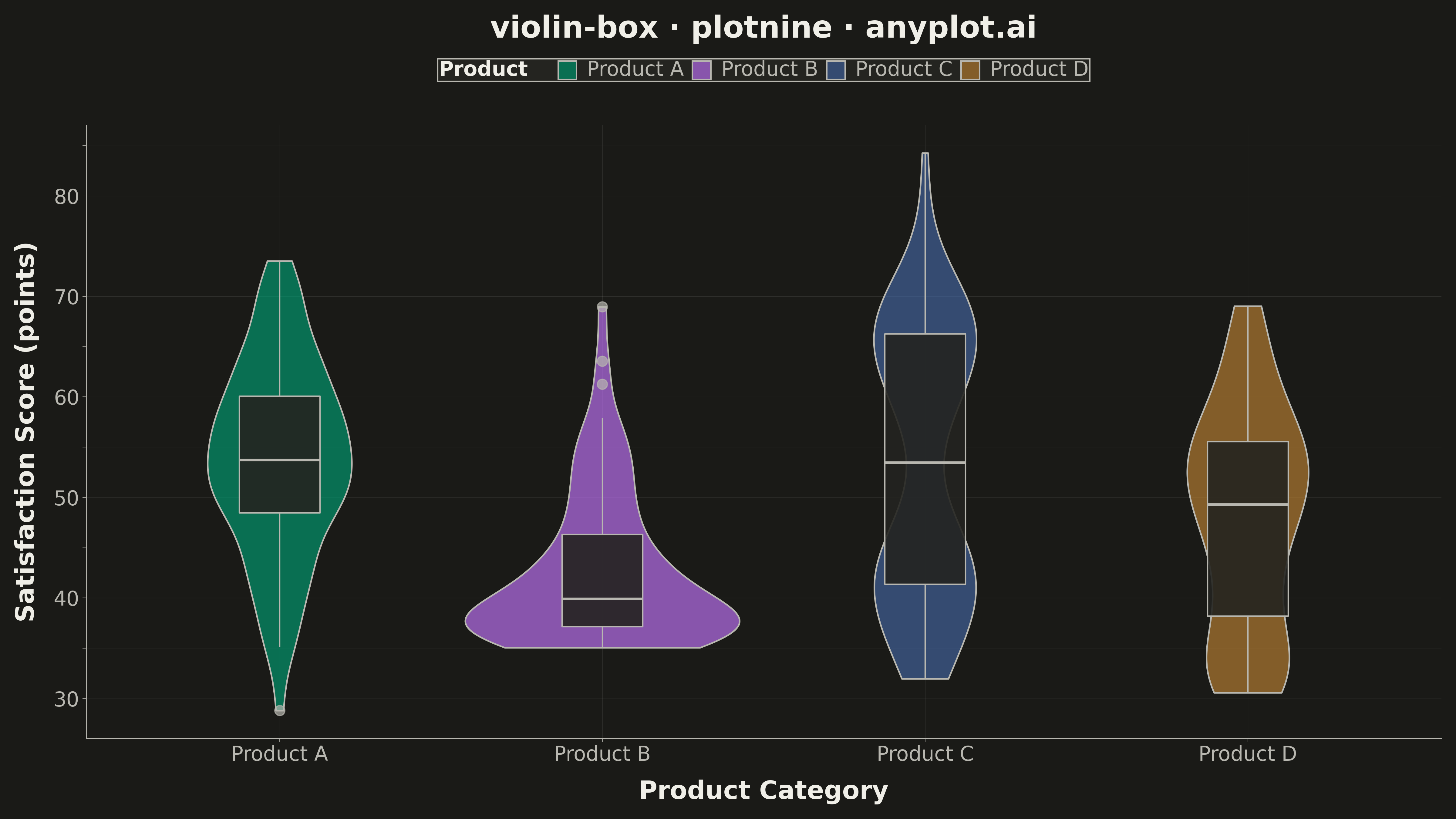

Violin Plot with Embedded Box Plot rendered with plotnine

Renders

Python source (plotnine)

""" anyplot.ai
violin-box: Violin Plot with Embedded Box Plot
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 87/100 | Updated: 2026-05-12
"""

import importlib
import os
import sys


# Avoid importing from local directory
for path in list(sys.path):
    if "violin-box" in path or "implementations" in path:
        sys.path.remove(path)

np = importlib.import_module("numpy")
pd = importlib.import_module("pandas")
plotnine = importlib.import_module("plotnine")

THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data
np.random.seed(42)
n_per_group = 80

data = pd.DataFrame(
    {
        "Value": np.concatenate(
            [
                np.random.normal(55, 10, n_per_group),
                np.random.exponential(8, n_per_group) + 35,
                np.concatenate([np.random.normal(40, 5, n_per_group // 2), np.random.normal(65, 5, n_per_group // 2)]),
                np.random.uniform(30, 70, n_per_group),
            ]
        ),
        "Group": ["Product A"] * n_per_group
        + ["Product B"] * n_per_group
        + ["Product C"] * n_per_group
        + ["Product D"] * n_per_group,
    }
)

# Plot
anyplot_theme = plotnine.theme(
    plot_background=plotnine.element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=plotnine.element_rect(fill=PAGE_BG, color=None),
    panel_grid_major=plotnine.element_line(color=INK, size=0.3, alpha=0.10),
    panel_grid_minor=plotnine.element_line(color=INK, size=0.2, alpha=0.05),
    panel_border=plotnine.element_blank(),
    axis_title=plotnine.element_text(color=INK, size=20, weight="bold"),
    axis_text=plotnine.element_text(color=INK_SOFT, size=16),
    axis_line_x=plotnine.element_line(color=INK_SOFT, size=0.7),
    axis_line_y=plotnine.element_line(color=INK_SOFT, size=0.7),
    axis_ticks=plotnine.element_line(color=INK_SOFT, size=0.4),
    axis_ticks_length=3,
    plot_title=plotnine.element_text(color=INK, size=24, weight="bold"),
    legend_background=plotnine.element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=plotnine.element_text(color=INK_SOFT, size=16),
    legend_title=plotnine.element_text(color=INK, size=16, weight="bold"),
    figure_size=(16, 9),
)

plot = (
    plotnine.ggplot(data, plotnine.aes(x="Group", y="Value", fill="Group"))
    + plotnine.geom_violin(alpha=0.65, color=INK_SOFT, size=0.7, width=0.85)
    + plotnine.geom_boxplot(
        width=0.25, alpha=0.9, color=INK_SOFT, fill=ELEVATED_BG, size=0.6, outlier_size=4, outlier_alpha=0.7
    )
    + plotnine.scale_fill_manual(values=IMPRINT, name="Product", guide=plotnine.guide_legend(nrow=1))
    + plotnine.labs(title="violin-box · plotnine · anyplot.ai", x="Product Category", y="Satisfaction Score (points)")
    + anyplot_theme
    + plotnine.theme(legend_position="top", legend_direction="horizontal")
)

# Save to script directory
script_dir = os.path.dirname(os.path.abspath(__file__))
output_path = os.path.join(script_dir, f"plot-{THEME}.png")
plot.save(output_path, dpi=300, verbose=False)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/violin-box/plotnine/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "violin-box",
  "language": "python",
  "library": "plotnine",
  "page": "https://anyplot.ai/violin-box/python/plotnine",
  "hub": "https://anyplot.ai/violin-box",
  "code_json": "https://api.anyplot.ai/specs/violin-box/plotnine/code",
  "spec_json": "https://api.anyplot.ai/specs/violin-box",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/violin-box/python/plotnine/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/violin-box/python/plotnine/plot-dark.png",
  "quality_score": 87.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Violin Plot with Embedded Box Plot on anyplot.ai.
