Violin Plot with Embedded Box Plot — Plotly

A violin plot with an embedded box plot inside, combining the distribution shape visualization (KDE) with traditional quartile statistics. Shows both the probability density and summary statistics in one plot.

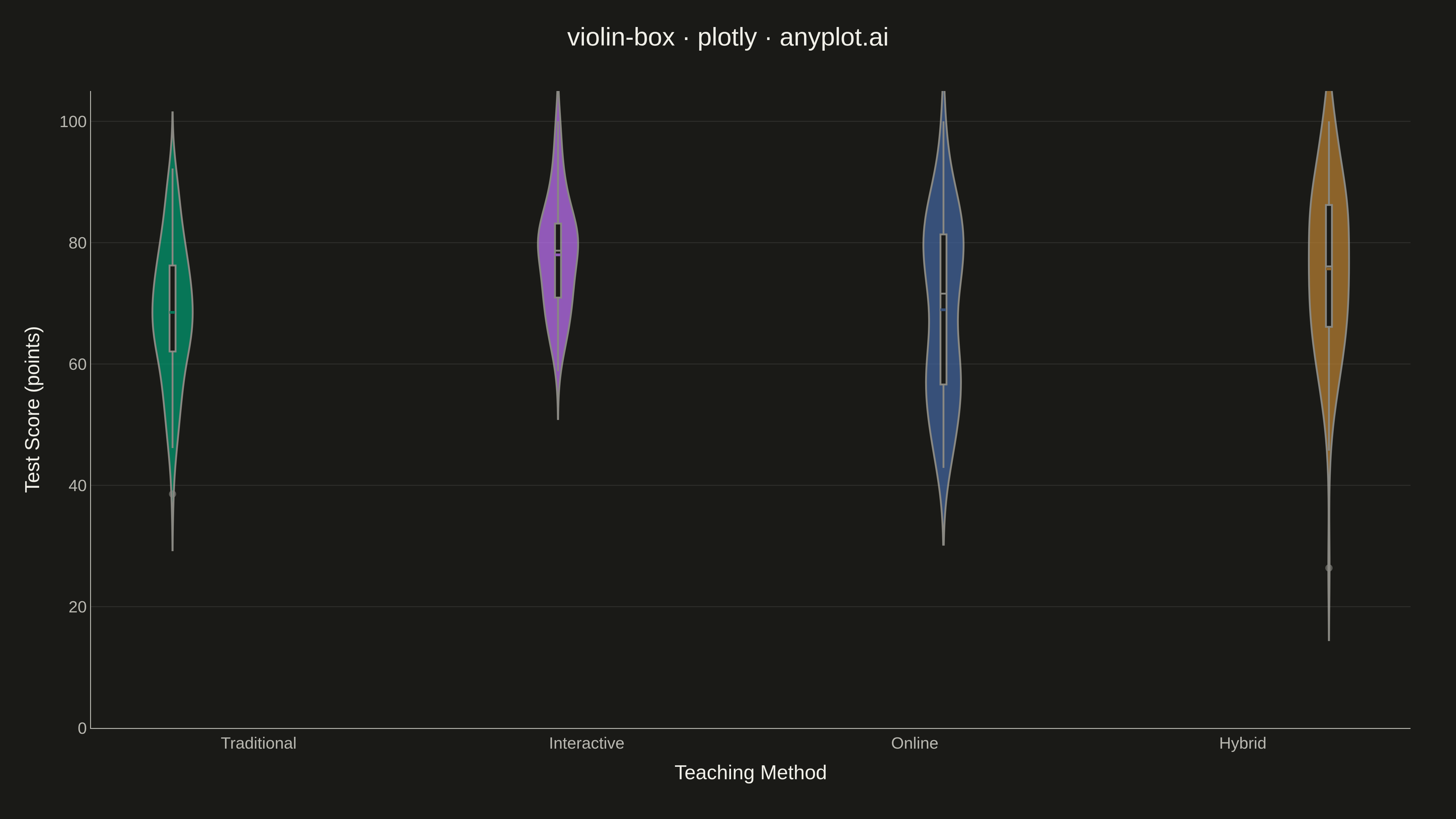

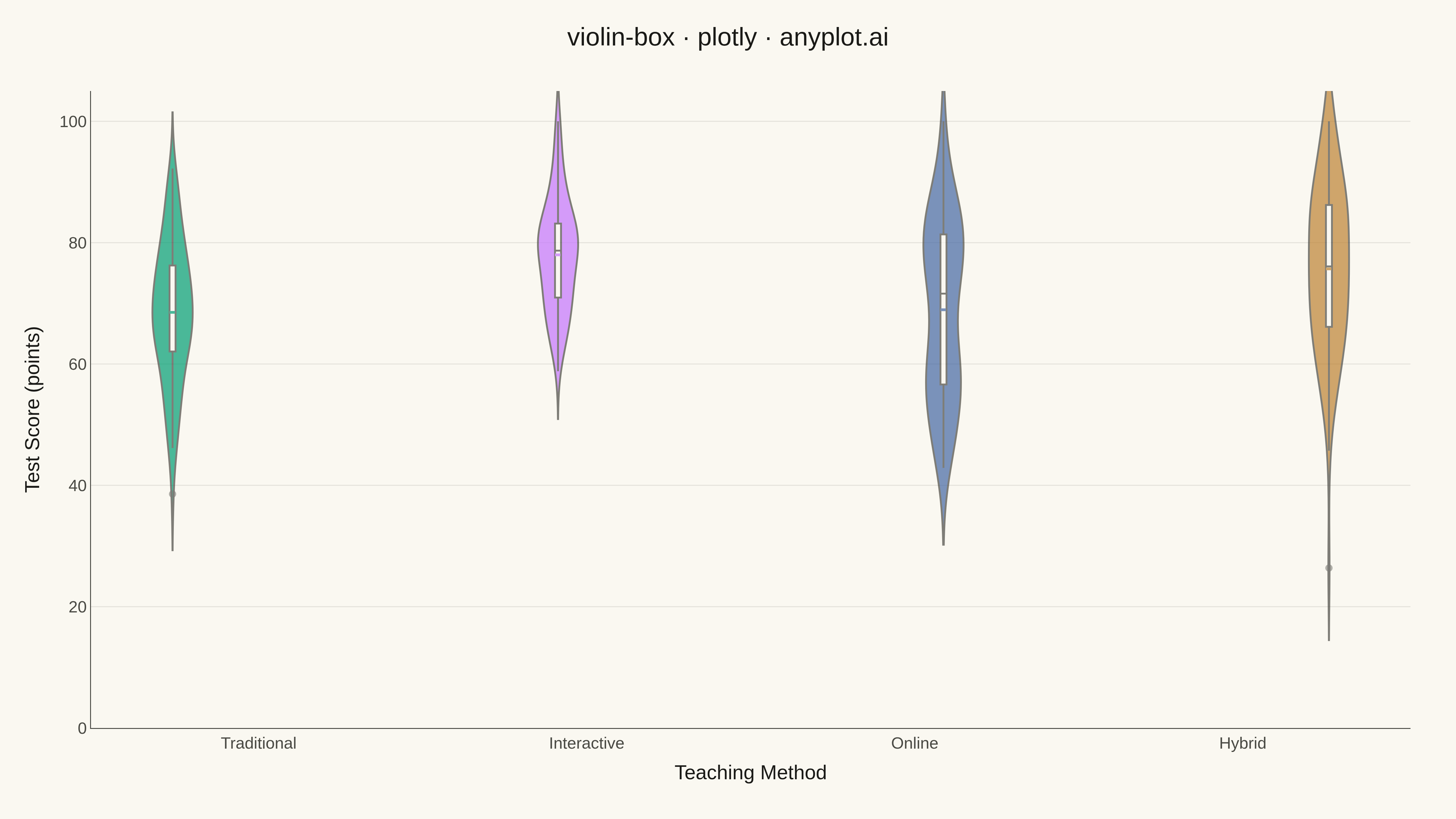

Violin Plot with Embedded Box Plot rendered with Plotly

Python source (Plotly)

""" anyplot.ai
violin-box: Violin Plot with Embedded Box Plot
Library: plotly 6.7.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-12
"""

import importlib
import os
import sys


# Avoid importing from local directory
for path in list(sys.path):
    if "violin-box" in path or "implementations" in path:
        sys.path.remove(path)

go = importlib.import_module("plotly.graph_objects")
np = importlib.import_module("numpy")

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette — first series is always #009E73
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data — Test scores across different teaching methods
np.random.seed(42)

groups = ["Traditional", "Interactive", "Online", "Hybrid"]
data = {
    "Traditional": np.random.normal(70, 12, 80),
    "Interactive": np.random.normal(78, 10, 85),
    "Online": np.concatenate([np.random.normal(55, 8, 40), np.random.normal(80, 7, 45)]),
    "Hybrid": np.random.normal(75, 15, 90),
}

# Clip to realistic test score range (0-100)
for group in groups:
    data[group] = np.clip(data[group], 0, 100)

# Plot
fig = go.Figure()

for i, group in enumerate(groups):
    fig.add_trace(
        go.Violin(
            y=data[group],
            name=group,
            box_visible=True,
            meanline_visible=True,
            fillcolor=IMPRINT[i],
            opacity=0.7,
            line={"color": INK_SOFT, "width": 2},
            points="outliers",
            pointpos=0,
            marker={"size": 8, "color": INK_SOFT, "opacity": 0.6},
            box={"fillcolor": PAGE_BG, "line": {"color": INK_SOFT, "width": 2}, "width": 0.15},
            meanline={"color": IMPRINT[i], "width": 3},
        )
    )

# Style
fig.update_layout(
    title={
        "text": "violin-box · plotly · anyplot.ai",
        "font": {"size": 28, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "title": {"text": "Teaching Method", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "showgrid": False,
        "linecolor": INK_SOFT,
    },
    yaxis={
        "title": {"text": "Test Score (points)", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "gridcolor": GRID,
        "gridwidth": 1,
        "range": [0, 105],
        "linecolor": INK_SOFT,
    },
    template="plotly_white",
    showlegend=False,
    plot_bgcolor=PAGE_BG,
    paper_bgcolor=PAGE_BG,
    margin={"l": 100, "r": 50, "t": 100, "b": 100},
    violingap=0.3,
    violinmode="group",
)

# Save
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Violin Plot with Embedded Box Plot on anyplot.ai.
