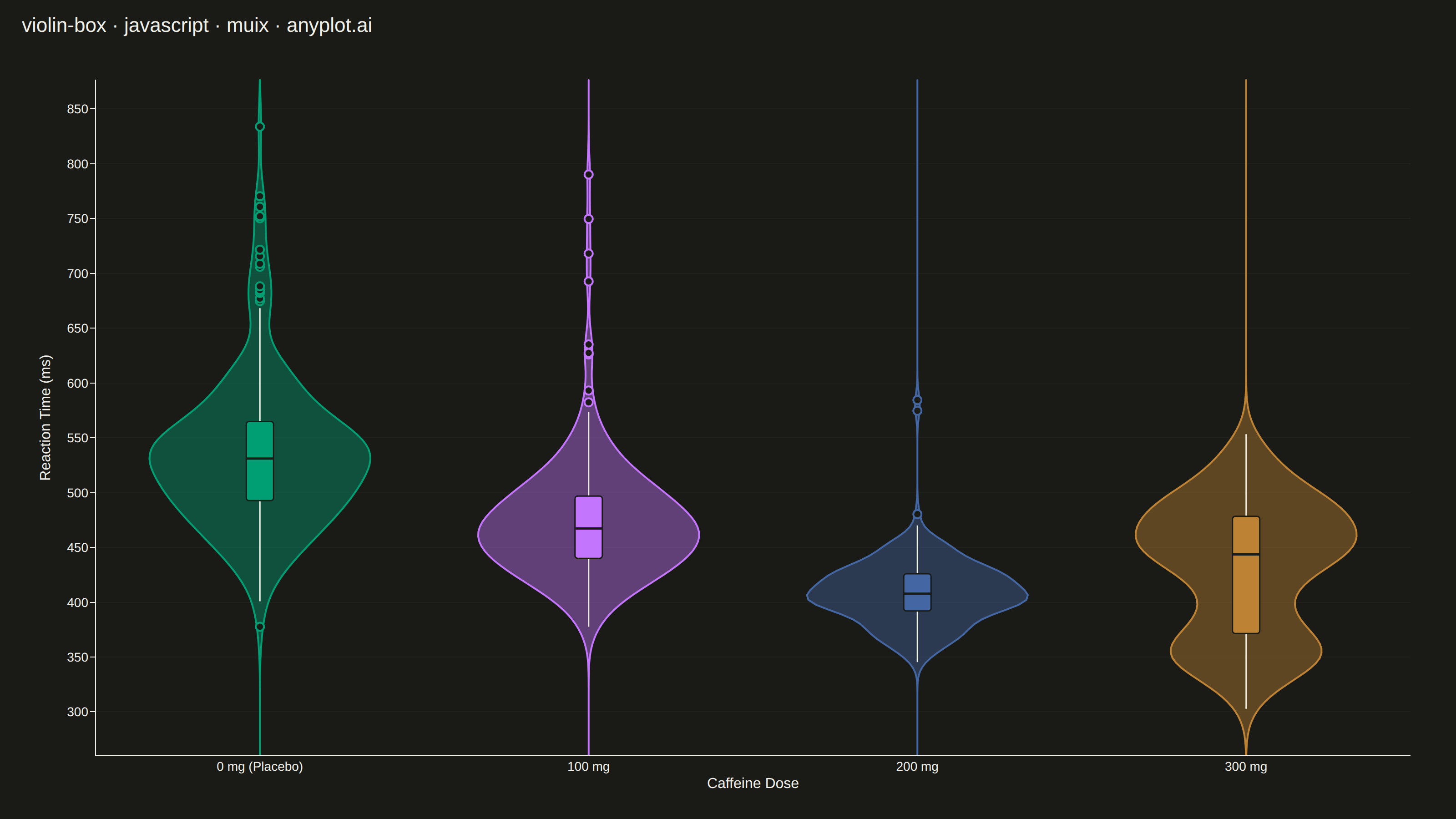

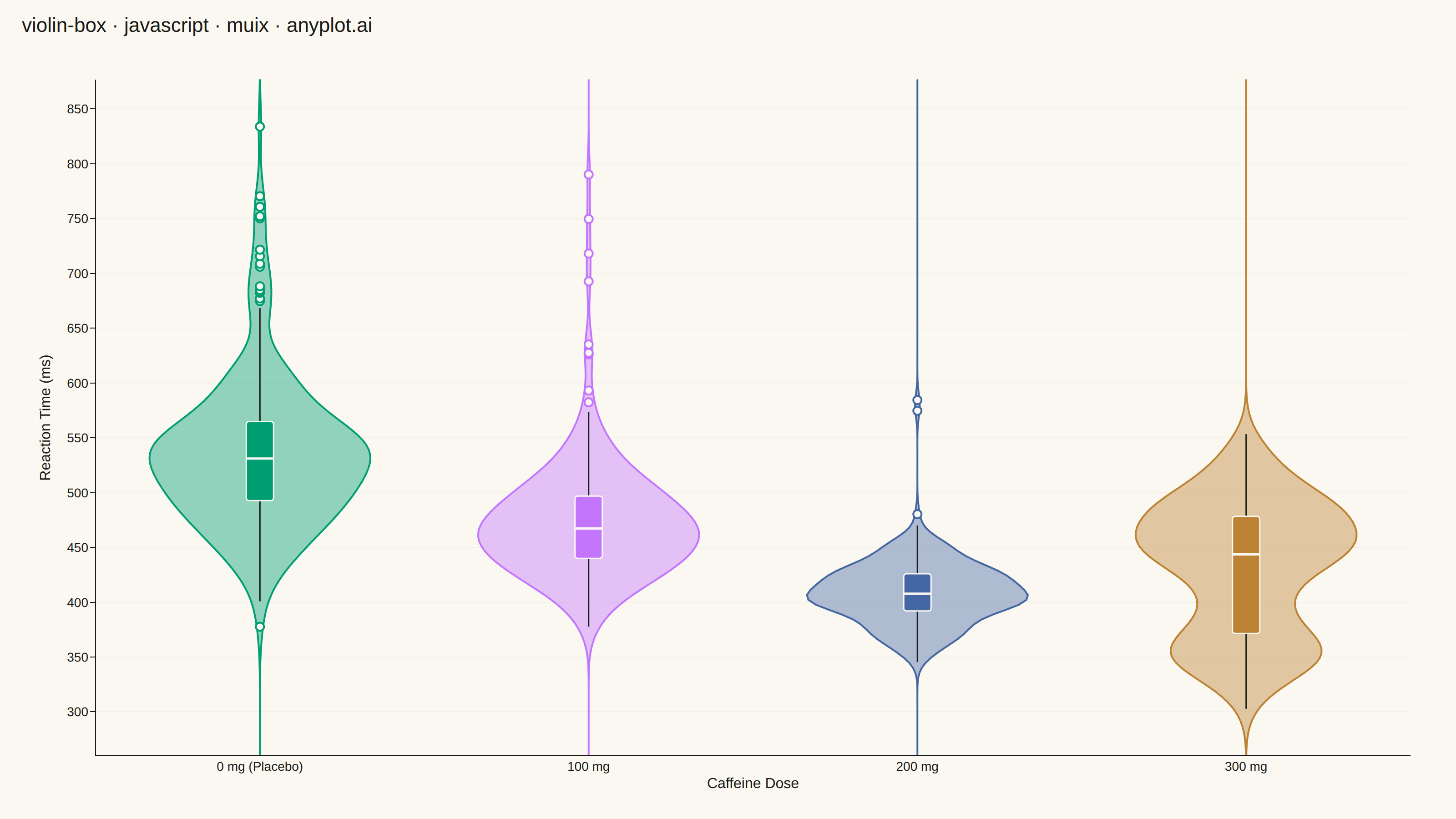

A violin plot with an embedded box plot inside, combining the distribution shape visualization (KDE) with traditional quartile statistics. Shows both the probability density and summary statistics in one plot.
// anyplot.ai
// violin-box: Violin Plot with Embedded Box Plot
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-09
import { ChartContainer } from "@mui/x-charts/ChartContainer";
import { ChartsGrid } from "@mui/x-charts/ChartsGrid";
import { ChartsXAxis } from "@mui/x-charts/ChartsXAxis";
import { ChartsYAxis } from "@mui/x-charts/ChartsYAxis";
import { useXScale, useYScale } from "@mui/x-charts/hooks";
const t = window.ANYPLOT_TOKENS;
const TITLE = "violin-box · javascript · muix · anyplot.ai";
const TITLE_HEIGHT = 56;
// --- Data (in-memory, deterministic LCG — no seeded RNG in the browser) -----
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
function randomNormal(rand, mean, stdDev) {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * stdDev;
}
const rand = lcg(7);
// Simple-reaction-time experiment across 4 caffeine-dosage conditions. The
// shapes are deliberately different: placebo carries a slow right-skewed
// "attention lapse" tail, 200mg is the tight, fast optimum, and 300mg turns
// bimodal (impulsive-fast vs. normal-latency) — the overstimulation pattern
// the Yerkes-Dodson law predicts. A plain box plot's median alone would hide
// that split; the violin's KDE makes it visible while the embedded box still
// reports the quartiles.
function sampleReactionTime(dose) {
let v;
if (dose === "300 mg") {
v = rand() < 0.35 ? randomNormal(rand, 350, 22) : randomNormal(rand, 465, 34);
} else {
const base = { "0 mg (Placebo)": 515, "100 mg": 468, "200 mg": 408 }[dose];
const std = { "0 mg (Placebo)": 52, "100 mg": 40, "200 mg": 26 }[dose];
v = randomNormal(rand, base, std);
const lapseProb = { "0 mg (Placebo)": 0.06, "100 mg": 0.03, "200 mg": 0.01 }[dose];
if (rand() < lapseProb) v += 130 + rand() * 110;
}
return Math.max(220, v);
}
const N_PER_GROUP = 240;
const categories = ["0 mg (Placebo)", "100 mg", "200 mg", "300 mg"];
const valuesByCategory = categories.map((dose) => Array.from({ length: N_PER_GROUP }, () => sampleReactionTime(dose)));
const allValues = valuesByCategory.flat();
const dataMin = Math.min(...allValues);
const dataMax = Math.max(...allValues);
const yPad = (dataMax - dataMin) * 0.08;
const Y_MIN = dataMin - yPad;
const Y_MAX = dataMax + yPad;
// --- Quartile stats (Tukey whiskers, 1.5×IQR) with explicit outlier points --
function quantile(sorted, q) {
const pos = (sorted.length - 1) * q;
const base = Math.floor(pos);
const rest = pos - base;
return base + 1 < sorted.length ? sorted[base] + rest * (sorted[base + 1] - sorted[base]) : sorted[base];
}
function boxStats(values) {
const sorted = [...values].sort((a, b) => a - b);
const q1 = quantile(sorted, 0.25);
const median = quantile(sorted, 0.5);
const q3 = quantile(sorted, 0.75);
const iqr = q3 - q1;
const lowerFence = q1 - 1.5 * iqr;
const upperFence = q3 + 1.5 * iqr;
const inliers = sorted.filter((v) => v >= lowerFence && v <= upperFence);
const outliers = sorted.filter((v) => v < lowerFence || v > upperFence);
return {
q1,
median,
q3,
whiskerLow: inliers.length ? inliers[0] : q1,
whiskerHigh: inliers.length ? inliers[inliers.length - 1] : q3,
outliers,
};
}
const statsByCategory = valuesByCategory.map(boxStats);
// --- Gaussian KDE per group, Silverman bandwidth, normalized to its own peak
// so each violin shows shape (including 300mg's bimodal split), not sample n.
const GRID_N = 140;
const grid = Array.from({ length: GRID_N }, (_, k) => Y_MIN + (k * (Y_MAX - Y_MIN)) / (GRID_N - 1));
function stdOf(values) {
const m = values.reduce((a, b) => a + b, 0) / values.length;
const variance = values.reduce((a, b) => a + (b - m) ** 2, 0) / (values.length - 1);
return Math.sqrt(variance);
}
function kde(values) {
const n = values.length;
const bandwidth = 0.9 * stdOf(values) * Math.pow(n, -0.2);
const raw = grid.map((gy) => values.reduce((sum, v) => sum + Math.exp(-0.5 * ((gy - v) / bandwidth) ** 2), 0));
const peak = Math.max(...raw);
return raw.map((v) => v / peak);
}
const densityByCategory = valuesByCategory.map(kde);
// --- Mirrored violin (KDE on both sides) + inner quartile box + outliers ---
// The community package (7.29.1) has no violin/box-plot component. A custom
// SVG layer positioned via the chart's own band/linear scale hooks reproduces
// one while staying entirely within the community ChartContainer surface —
// the documented "composition" technique for chart types MUI X doesn't ship.
function ViolinBoxes() {
const xScale = useXScale();
const yScale = useYScale();
const bandwidth = xScale.bandwidth();
const violinHalfWidth = bandwidth * 0.42;
const boxHalfWidth = Math.min(15, bandwidth * 0.09);
return (
<g>
{categories.map((cat, i) => {
const color = t.palette[i % t.palette.length];
const center = xScale(cat) + bandwidth / 2;
const density = densityByCategory[i];
const leftSide = grid.map((gy, k) => `${center - density[k] * violinHalfWidth},${yScale(gy)}`);
const rightSide = grid.map((gy, k) => `${center + density[k] * violinHalfWidth},${yScale(gy)}`).reverse();
const violinPath = `M${leftSide.join(" L")} L${rightSide.join(" L")} Z`;
const { q1, median, q3, whiskerLow, whiskerHigh, outliers } = statsByCategory[i];
return (
<g key={cat}>
<path d={violinPath} fill={color} fillOpacity={0.42} stroke={color} strokeWidth={2} strokeLinejoin="round" />
<line x1={center} x2={center} y1={yScale(whiskerLow)} y2={yScale(whiskerHigh)} stroke={t.ink} strokeWidth={1.5} />
<rect
x={center - boxHalfWidth}
y={yScale(q3)}
width={boxHalfWidth * 2}
height={Math.max(1, yScale(q1) - yScale(q3))}
fill={color}
stroke={t.pageBg}
strokeWidth={1.5}
rx={3}
/>
<line
x1={center - boxHalfWidth}
x2={center + boxHalfWidth}
y1={yScale(median)}
y2={yScale(median)}
stroke={t.pageBg}
strokeWidth={2.5}
/>
{outliers.map((v, j) => (
<circle key={j} cx={center} cy={yScale(v)} r={4.5} fill={t.pageBg} stroke={color} strokeWidth={2} />
))}
</g>
);
})}
</g>
);
}
export default function Chart() {
const chartHeight = window.ANYPLOT_SIZE.height - TITLE_HEIGHT;
return (
<div style={{ width: window.ANYPLOT_SIZE.width, height: window.ANYPLOT_SIZE.height }}>
<div
style={{
height: TITLE_HEIGHT,
lineHeight: `${TITLE_HEIGHT}px`,
paddingLeft: 24,
fontSize: 22,
fontWeight: 500,
color: t.ink,
}}
>
{TITLE}
</div>
<ChartContainer
width={window.ANYPLOT_SIZE.width}
height={chartHeight}
series={[]}
skipAnimation
margin={{ top: 32, right: 50, bottom: 70, left: 105 }}
xAxis={[
{
id: "doses",
data: categories,
scaleType: "band",
label: "Caffeine Dose",
labelStyle: { fontSize: 16 },
tickLabelStyle: { fontSize: 14 },
},
]}
yAxis={[
{
id: "reaction",
min: Y_MIN,
max: Y_MAX,
label: "Reaction Time (ms)",
labelStyle: { fontSize: 16 },
tickLabelStyle: { fontSize: 14 },
tickFontSize: 34,
},
]}
>
<ChartsGrid
horizontal
sx={{
"& .MuiChartsGrid-line": {
stroke: t.grid,
opacity: 0.2,
},
}}
/>
<ViolinBoxes />
<ChartsXAxis axisId="doses" disableTicks />
<ChartsYAxis axisId="reaction" />
</ChartContainer>
</div>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/violin-box/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
