Violin Plot with Embedded Box Plot — Makie.jl

A violin plot with an embedded box plot inside, combining the distribution shape visualization (KDE) with traditional quartile statistics. Shows both the probability density and summary statistics in one plot.

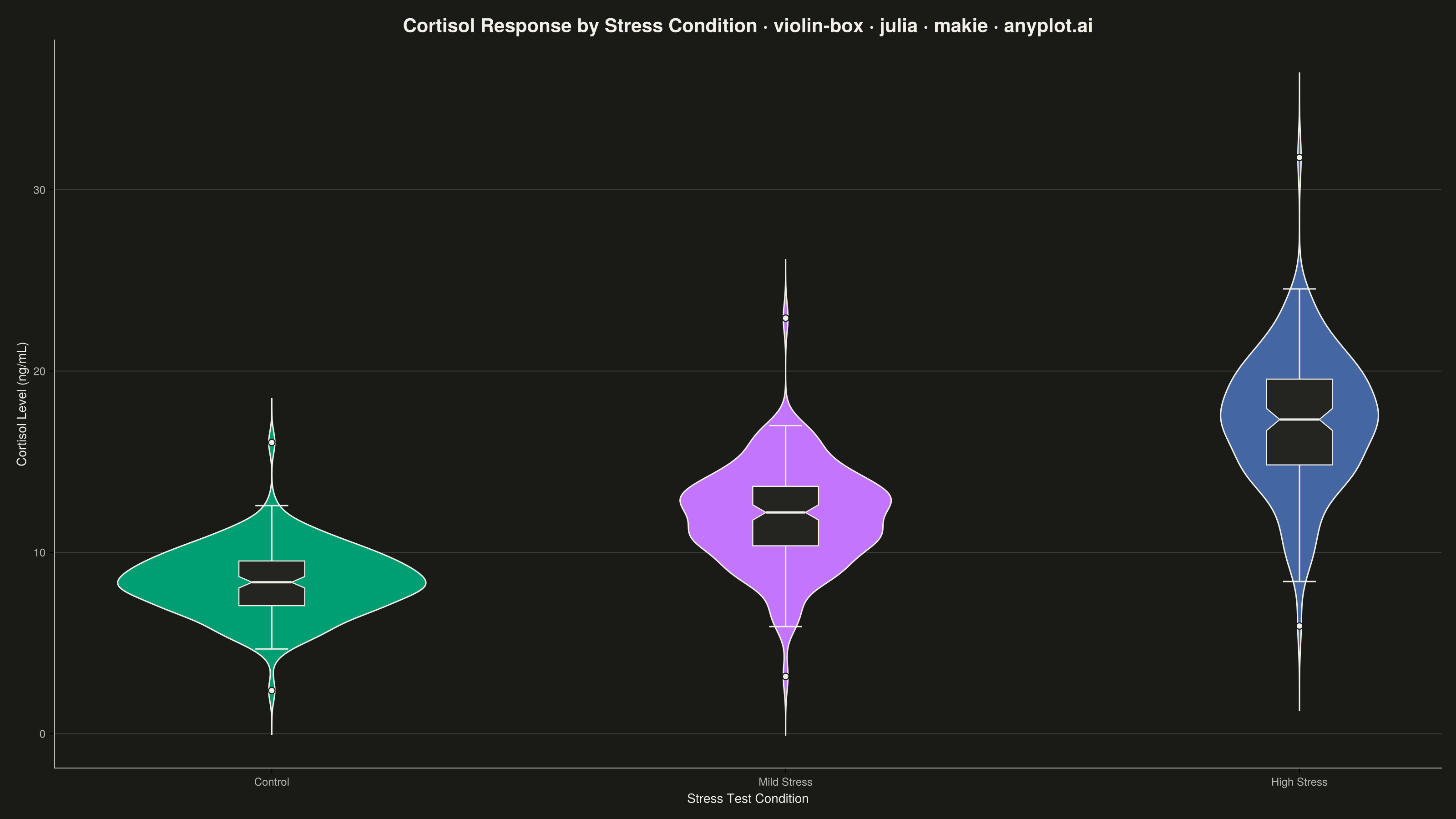

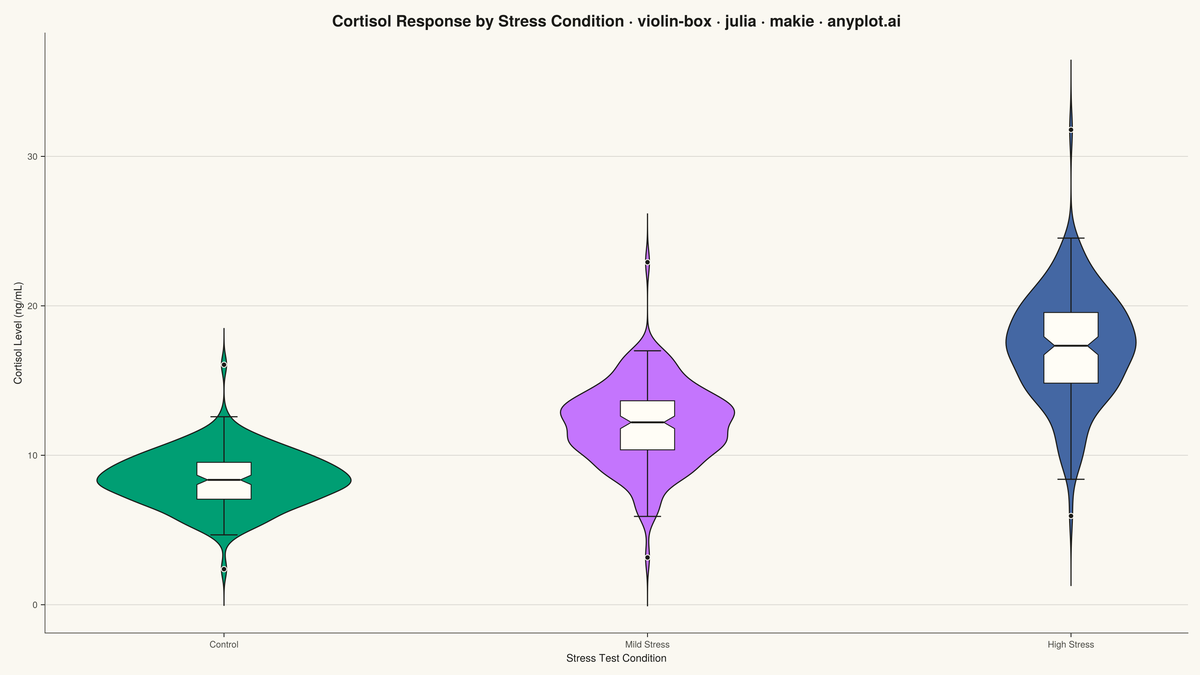

Violin Plot with Embedded Box Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# violin-box: Violin Plot with Embedded Box Plot
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 88/100 | Created: 2026-09-09

using CairoMakie
using Colors
using Random

Random.seed!(42)

# --- Theme tokens -----------------------------------------------------------
const THEME       = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG      = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG  = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK          = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT     = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const GRID_COLOR   = RGBAf(INK.r, INK.g, INK.b, 0.15)

# Imprint categorical palette — first series is ALWAYS brand green
const IMPRINT_PALETTE = [
    colorant"#009E73",  # 1 — Control
    colorant"#C475FD",  # 2 — Mild Stress
    colorant"#4467A3",  # 3 — High Stress
]

# --- Data ---------------------------------------------------------------
# Salivary cortisol response (ng/mL) under three lab-controlled stress conditions
groups = ["Control", "Mild Stress", "High Stress"]
n_per_group = 150
group_means = [8.5, 12.0, 17.5]
group_sds = [1.8, 2.6, 3.4]

group_index = Int[]
cortisol_level = Float64[]
for (i, (mean_level, sd_level)) in enumerate(zip(group_means, group_sds))
    append!(group_index, fill(i, n_per_group))
    append!(cortisol_level, mean_level .+ sd_level .* randn(n_per_group))
    # A couple of real physiological outliers per group (hyper- / non-responders)
    append!(group_index, fill(i, 2))
    append!(cortisol_level, [mean_level + 4.2 * sd_level, mean_level - 3.4 * sd_level])
end
violin_colors = [IMPRINT_PALETTE[i] for i in group_index]

# --- Plot -----------------------------------------------------------------
title_text = "Cortisol Response by Stress Condition · violin-box · julia · makie · anyplot.ai"

fig = Figure(size = (1600, 900), fontsize = 14, backgroundcolor = PAGE_BG)

ax = Axis(
    fig[1, 1];
    title             = title_text,
    titlesize         = 21,
    titlecolor        = INK,
    xlabel            = "Stress Test Condition",
    ylabel            = "Cortisol Level (ng/mL)",
    xlabelsize        = 14,
    ylabelsize        = 14,
    xlabelcolor       = INK,
    ylabelcolor       = INK,
    xticks            = (1:3, groups),
    xticklabelsize    = 12,
    yticklabelsize    = 12,
    xticklabelcolor   = INK_SOFT,
    yticklabelcolor   = INK_SOFT,
    backgroundcolor   = PAGE_BG,
    topspinevisible   = false,
    rightspinevisible = false,
    leftspinecolor    = INK_SOFT,
    bottomspinecolor  = INK_SOFT,
    xgridvisible      = false,
    ygridcolor        = GRID_COLOR,
    yminorgridvisible = false,
)

violin!(
    ax, group_index, cortisol_level;
    color = violin_colors, strokecolor = INK, strokewidth = 1.5,
    width = 0.75, show_median = false,
)
boxplot!(
    ax, group_index, cortisol_level;
    width = 0.16, color = ELEVATED_BG, strokecolor = INK, strokewidth = 1.2,
    mediancolor = INK, medianlinewidth = 2.5,
    whiskercolor = INK, whiskerwidth = 0.5, whiskerlinewidth = 1.5,
    show_notch = true, notchwidth = 0.6,
    outliercolor = INK, outlierstrokecolor = PAGE_BG, outlierstrokewidth = 1.2,
    markersize = 10, show_outliers = true,
)

# --- Save -------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/violin-box/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "violin-box",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/violin-box/julia/makie",
  "hub": "https://anyplot.ai/violin-box",
  "code_json": "https://api.anyplot.ai/specs/violin-box/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/violin-box",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/violin-box/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/violin-box/julia/makie/plot-dark.png",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Violin Plot with Embedded Box Plot on anyplot.ai.
