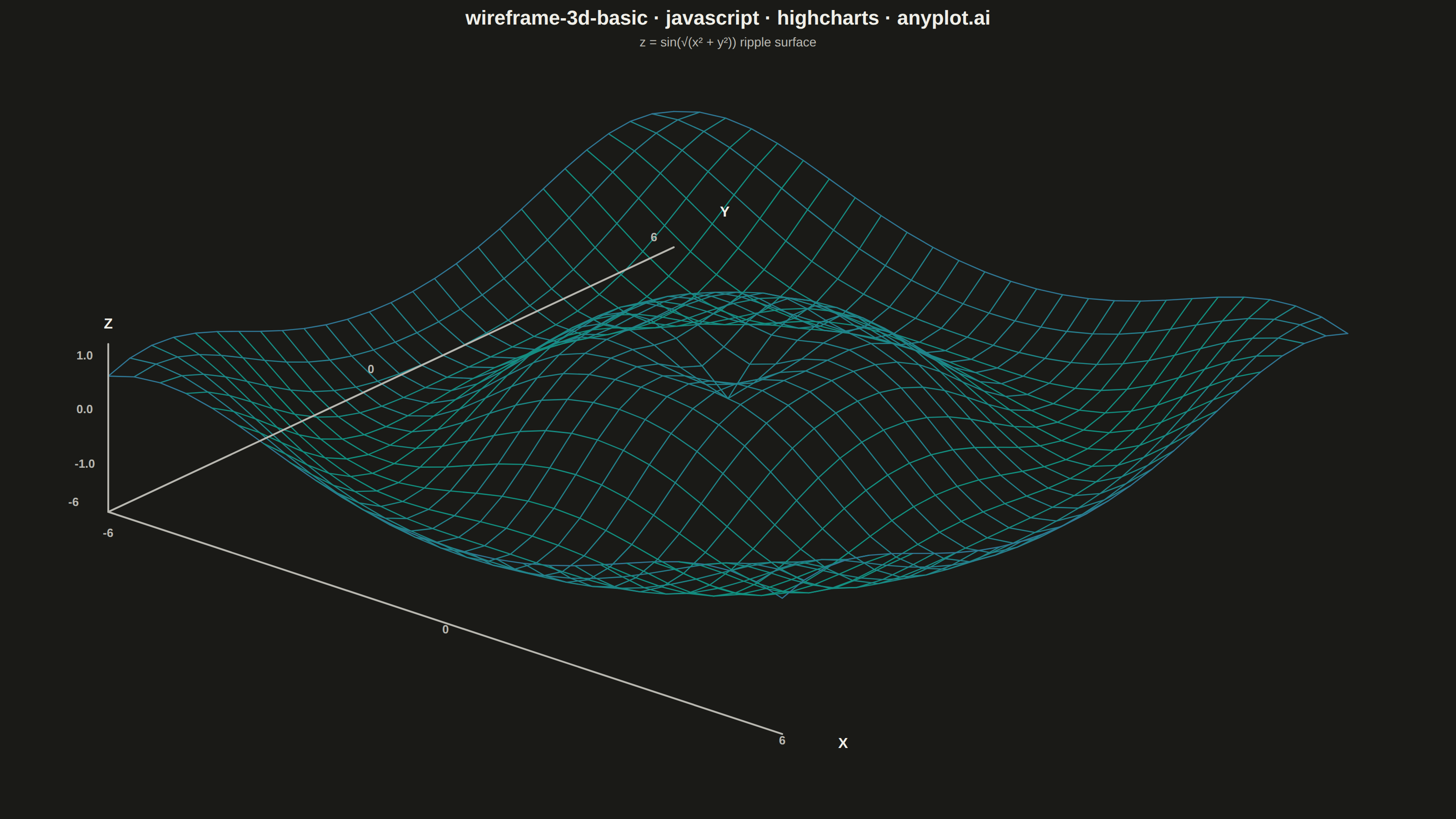

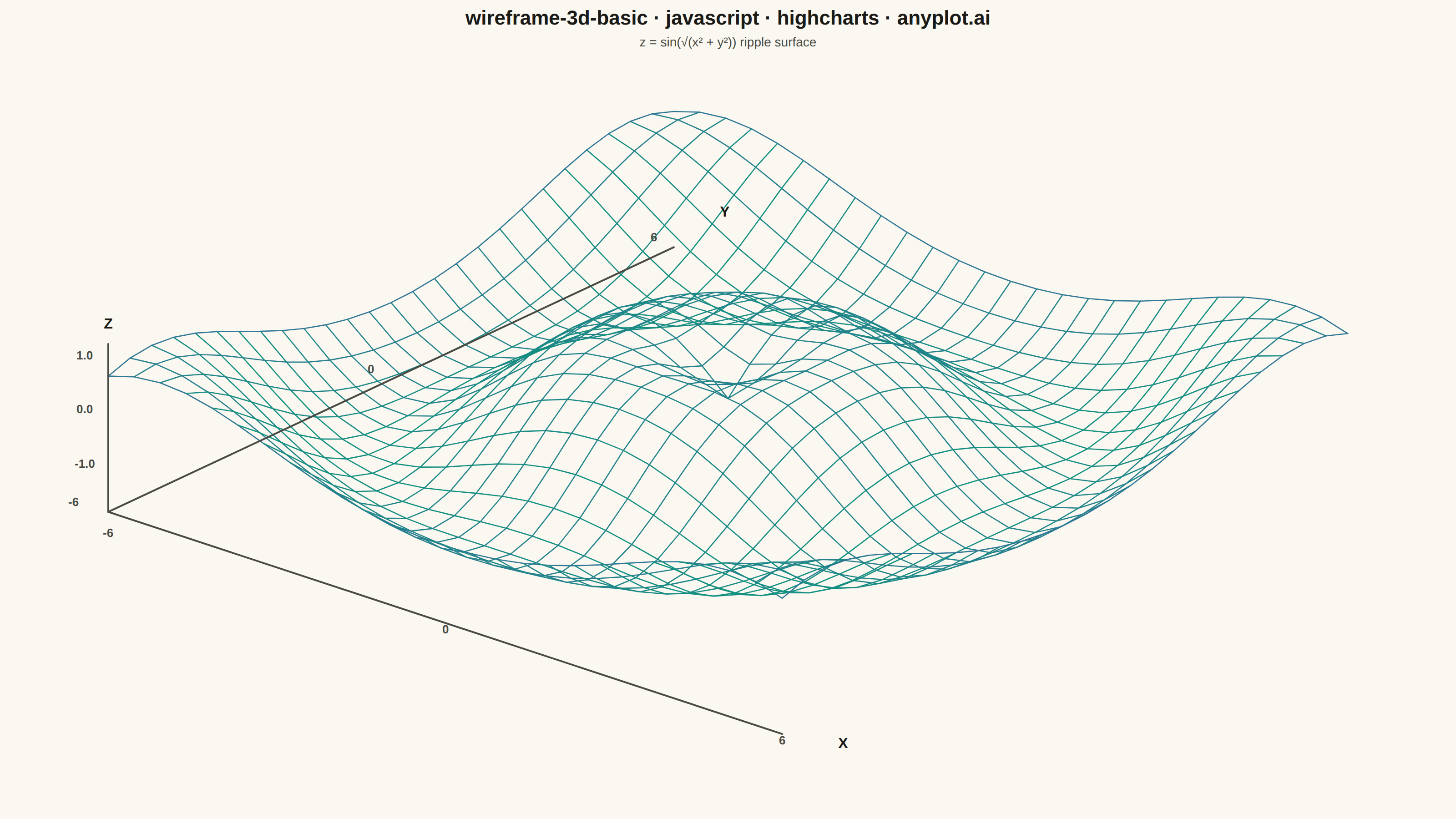

A 3D wireframe plot displays a mathematical surface as a mesh of lines connecting grid points in three-dimensional space. Unlike solid surface plots, wireframes render only the edges between grid points, creating a see-through visualization that reveals the underlying structure and allows viewing parts of the surface that would otherwise be hidden. This makes wireframes ideal for understanding the topology and shape of 3D functions.
// anyplot.ai
// wireframe-3d-basic: Basic 3D Wireframe Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.1
// Quality: 83/100 | Created: 2026-08-04
const t = window.ANYPLOT_TOKENS;
// --- Data: ripple surface z = sin(sqrt(x^2 + y^2)) on a 27x27 grid ---------
const GRID_N = 27;
const RANGE = 6;
const grid = Array.from({ length: GRID_N }, (_, i) => -RANGE + (2 * RANGE * i) / (GRID_N - 1));
const zAt = (x, y) => Math.sin(Math.sqrt(x * x + y * y));
const zGrid = grid.map((y) => grid.map((x) => zAt(x, y)));
let zMin = Infinity;
let zMax = -Infinity;
zGrid.forEach((row) =>
row.forEach((z) => {
if (z < zMin) zMin = z;
if (z > zMax) zMax = z;
})
);
// --- 3D -> 2D orthographic projection (elevation 28°, azimuth 40°) ---------
// Highcharts core has no chart3d/highcharts-3d module, so the mesh is
// projected by hand into plain (x, y) screen coordinates and drawn as
// ordinary `line` series — the same math a native 3D engine applies before
// rasterizing, just computed here instead of in an unavailable add-on.
const ELEV = (28 * Math.PI) / 180;
const AZIM = (40 * Math.PI) / 180;
const cosAz = Math.cos(AZIM);
const sinAz = Math.sin(AZIM);
const cosEl = Math.cos(ELEV);
const sinEl = Math.sin(ELEV);
const project = (x, y, z) => {
const xr = x * cosAz + y * sinAz;
const yr = -x * sinAz + y * cosAz;
const zScreen = yr * sinEl + z * cosEl;
return [xr, zScreen];
};
// --- Color: height-based gradient along the imprint_seq colormap -----------
const hexToRgb = (hex) => {
const n = parseInt(hex.slice(1), 16);
return [(n >> 16) & 255, (n >> 8) & 255, n & 255];
};
const seqLo = hexToRgb(t.seq[0]);
const seqHi = hexToRgb(t.seq[1]);
const heightColor = (z) => {
const f = (z - zMin) / (zMax - zMin);
const r = Math.round(seqLo[0] + (seqHi[0] - seqLo[0]) * f);
const g = Math.round(seqLo[1] + (seqHi[1] - seqLo[1]) * f);
const b = Math.round(seqLo[2] + (seqHi[2] - seqLo[2]) * f);
return `rgb(${r}, ${g}, ${b})`;
};
// --- Mesh: one line series per grid row and per grid column ----------------
const projected = grid.map((y, iy) => grid.map((x, ix) => project(x, y, zGrid[iy][ix])));
const meshSeries = [];
grid.forEach((_, iy) => {
const avgZ = zGrid[iy].reduce((a, b) => a + b, 0) / GRID_N;
meshSeries.push({
type: "line",
data: projected[iy],
color: heightColor(avgZ),
lineWidth: 1.3,
marker: { enabled: false },
enableMouseTracking: false,
showInLegend: false,
});
});
grid.forEach((_, ix) => {
const colZs = grid.map((_, iy) => zGrid[iy][ix]);
const avgZ = colZs.reduce((a, b) => a + b, 0) / GRID_N;
const colPoints = grid.map((_, iy) => projected[iy][ix]);
meshSeries.push({
type: "line",
data: colPoints,
color: heightColor(avgZ),
lineWidth: 1.3,
marker: { enabled: false },
enableMouseTracking: false,
showInLegend: false,
});
});
// --- Axis frame: an L-shaped X/Y/Z reference resting below the surface -----
const floorZ = zMin - (zMax - zMin) * 0.35;
const topZ = zMax + (zMax - zMin) * 0.2;
const corner = project(-RANGE, -RANGE, floorZ);
const xEnd = project(RANGE, -RANGE, floorZ);
const yEnd = project(-RANGE, RANGE, floorZ);
const zEnd = project(-RANGE, -RANGE, topZ);
const axisFrameSeries = [
{ type: "line", data: [corner, xEnd], color: t.inkSoft, lineWidth: 2, marker: { enabled: false }, enableMouseTracking: false, showInLegend: false },
{ type: "line", data: [corner, yEnd], color: t.inkSoft, lineWidth: 2, marker: { enabled: false }, enableMouseTracking: false, showInLegend: false },
{ type: "line", data: [corner, zEnd], color: t.inkSoft, lineWidth: 2, marker: { enabled: false }, enableMouseTracking: false, showInLegend: false },
];
// --- Axis ticks + titles as labeled points (core dataLabels, no modules) ---
// The three axes share one corner, so ticks placed there are offset in
// different directions per axis (down / left / left) to keep the labels from
// stacking on top of each other. The two "-RANGE" ticks (one per axis) sit
// exactly on top of that shared corner point, so they get an extra push
// beyond the normal offset to stay independently legible.
const tickVals = [-RANGE, 0, RANGE];
const tickPoints = [];
tickVals.forEach((v) => {
const [sx, sy] = project(v, -RANGE, floorZ);
const cornerBoost = v === -RANGE ? 16 : 0;
tickPoints.push({ x: sx, y: sy, name: String(v), dataLabels: { x: 0, y: 18 + cornerBoost } });
});
tickVals.forEach((v) => {
const [sx, sy] = project(-RANGE, v, floorZ);
const cornerBoost = v === -RANGE ? 16 : 0;
tickPoints.push({ x: sx, y: sy, name: String(v), dataLabels: { x: -22 - cornerBoost, y: 0 } });
});
[zMin, 0, zMax].forEach((v) => {
const [sx, sy] = project(-RANGE, -RANGE, v);
tickPoints.push({ x: sx, y: sy, name: v.toFixed(1), dataLabels: { x: -26, y: 0 } });
});
const [xTitleX, xTitleY] = project(RANGE * 1.18, -RANGE, floorZ);
const [yTitleX, yTitleY] = project(-RANGE, RANGE * 1.18, floorZ);
const [zTitleX, zTitleY] = project(-RANGE, -RANGE, topZ * 1.12);
const titlePoints = [
{ x: xTitleX, y: xTitleY, name: "X" },
{ x: yTitleX, y: yTitleY, name: "Y" },
{ x: zTitleX, y: zTitleY, name: "Z" },
];
const labelSeries = [
{
type: "scatter",
data: tickPoints,
marker: { enabled: false },
enableMouseTracking: false,
showInLegend: false,
dataLabels: {
enabled: true,
format: "{point.name}",
allowOverlap: true,
style: { color: t.inkSoft, fontSize: "13px", textOutline: "none" },
},
},
{
type: "scatter",
data: titlePoints,
marker: { enabled: false },
enableMouseTracking: false,
showInLegend: false,
dataLabels: {
enabled: true,
format: "{point.name}",
allowOverlap: true,
style: { color: t.ink, fontSize: "16px", fontWeight: "600", textOutline: "none" },
},
},
];
// --- Axis bounds: fit every projected coordinate with padding --------------
const allX = [];
const allY = [];
[...projected.flat(), corner, xEnd, yEnd, zEnd, ...tickPoints, ...titlePoints].forEach((p) => {
const px = Array.isArray(p) ? p[0] : p.x;
const py = Array.isArray(p) ? p[1] : p.y;
allX.push(px);
allY.push(py);
});
const padX = (Math.max(...allX) - Math.min(...allX)) * 0.08;
const padY = (Math.max(...allY) - Math.min(...allY)) * 0.08;
// --- Chart -------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "wireframe-3d-basic · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "z = sin(√(x² + y²)) ripple surface",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
visible: false,
min: Math.min(...allX) - padX,
max: Math.max(...allX) + padX,
startOnTick: false,
endOnTick: false,
},
yAxis: {
visible: false,
min: Math.min(...allY) - padY,
max: Math.max(...allY) + padY,
startOnTick: false,
endOnTick: false,
title: { text: null },
},
legend: { enabled: false },
tooltip: { enabled: false },
plotOptions: { series: { animation: false } },
series: [...meshSeries, ...axisFrameSeries, ...labelSeries],
});
Part of Basic 3D Wireframe Plot on anyplot.ai.
