Basic 3D Wireframe Plot — Plotly

A 3D wireframe plot displays a mathematical surface as a mesh of lines connecting grid points in three-dimensional space. Unlike solid surface plots, wireframes render only the edges between grid points, creating a see-through visualization that reveals the underlying structure and allows viewing parts of the surface that would otherwise be hidden. This makes wireframes ideal for understanding the topology and shape of 3D functions.

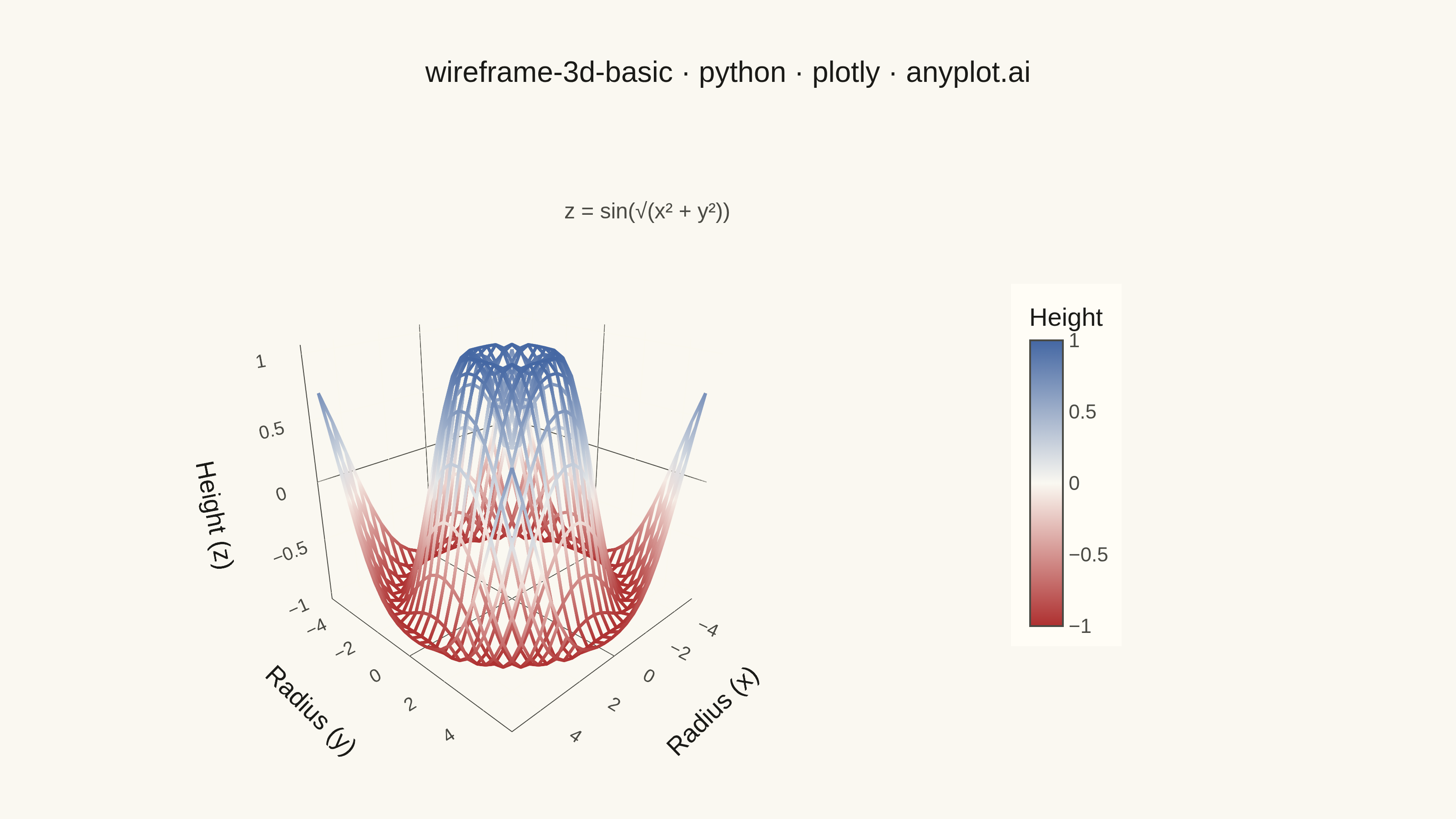

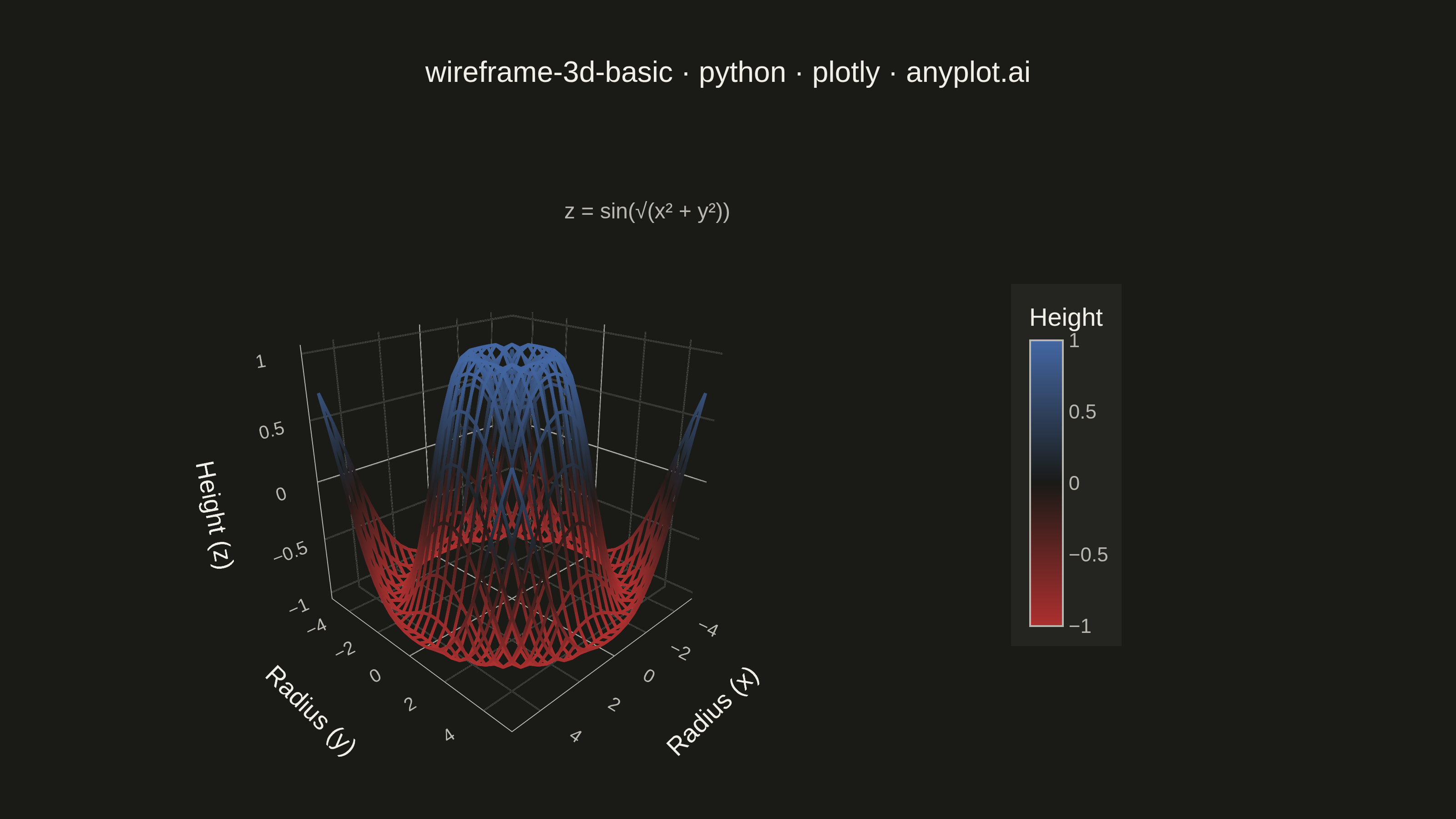

Basic 3D Wireframe Plot rendered with Plotly

Python source (Plotly)

""" anyplot.ai
wireframe-3d-basic: Basic 3D Wireframe Plot
Library: plotly 6.7.0 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-06
"""

import os

import numpy as np
import plotly.graph_objects as go


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - Create a 30x30 grid with ripple function z = sin(sqrt(x^2 + y^2))
x = np.linspace(-5, 5, 30)
y = np.linspace(-5, 5, 30)
X, Y = np.meshgrid(x, y)
R = np.sqrt(X**2 + Y**2)
Z = np.sin(R)

# Create wireframe using line traces with height-based coloring
fig = go.Figure()

# Add lines along x-direction (rows) with height-based coloring
for i in range(Z.shape[0]):
    z_values = Z[i, :]
    # Map Z values to colorscale (normalized between -1 and 1 for sin function)
    fig.add_trace(
        go.Scatter3d(
            x=X[i, :],
            y=Y[i, :],
            z=z_values,
            mode="lines",
            line={"color": z_values, "colorscale": "viridis", "showscale": False, "width": 3, "cmin": -1, "cmax": 1},
            showlegend=False,
            hovertemplate="<b>Point</b><br>X: %{x:.2f}<br>Y: %{y:.2f}<br>Z: %{z:.3f}<extra></extra>",
        )
    )

# Add lines along y-direction (columns) with height-based coloring
for j in range(Z.shape[1]):
    z_values = Z[:, j]
    fig.add_trace(
        go.Scatter3d(
            x=X[:, j],
            y=Y[:, j],
            z=z_values,
            mode="lines",
            line={"color": z_values, "colorscale": "viridis", "showscale": False, "width": 3, "cmin": -1, "cmax": 1},
            showlegend=False,
            hovertemplate="<b>Point</b><br>X: %{x:.2f}<br>Y: %{y:.2f}<br>Z: %{z:.3f}<extra></extra>",
        )
    )

# Layout for 4800x2700 px with 3D camera settings and theme-adaptive colors
fig.update_layout(
    title={"text": "wireframe-3d-basic · plotly · anyplot.ai", "font": {"size": 32, "color": INK}, "x": 0.5, "xanchor": "center"},
    scene={
        "xaxis": {
            "title": {"text": "Radius (x-coordinate)", "font": {"size": 22, "color": INK}},
            "tickfont": {"size": 16, "color": INK_SOFT},
            "gridcolor": "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)",
            "backgroundcolor": PAGE_BG,
        },
        "yaxis": {
            "title": {"text": "Radius (y-coordinate)", "font": {"size": 22, "color": INK}},
            "tickfont": {"size": 16, "color": INK_SOFT},
            "gridcolor": "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)",
            "backgroundcolor": PAGE_BG,
        },
        "zaxis": {
            "title": {"text": "Height: sin(√(x² + y²))", "font": {"size": 22, "color": INK}},
            "tickfont": {"size": 16, "color": INK_SOFT},
            "gridcolor": "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)",
            "backgroundcolor": PAGE_BG,
        },
        "camera": {
            "eye": {"x": 1.6, "y": 1.6, "z": 1.0}  # ~30° elevation, ~45° azimuth
        },
        "aspectmode": "cube",
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    margin={"l": 20, "r": 20, "t": 100, "b": 20},
)

# Save as PNG (4800x2700 px)
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)

# Save interactive HTML
fig.write_html(f"plot-{THEME}.html")

Part of Basic 3D Wireframe Plot on anyplot.ai.
