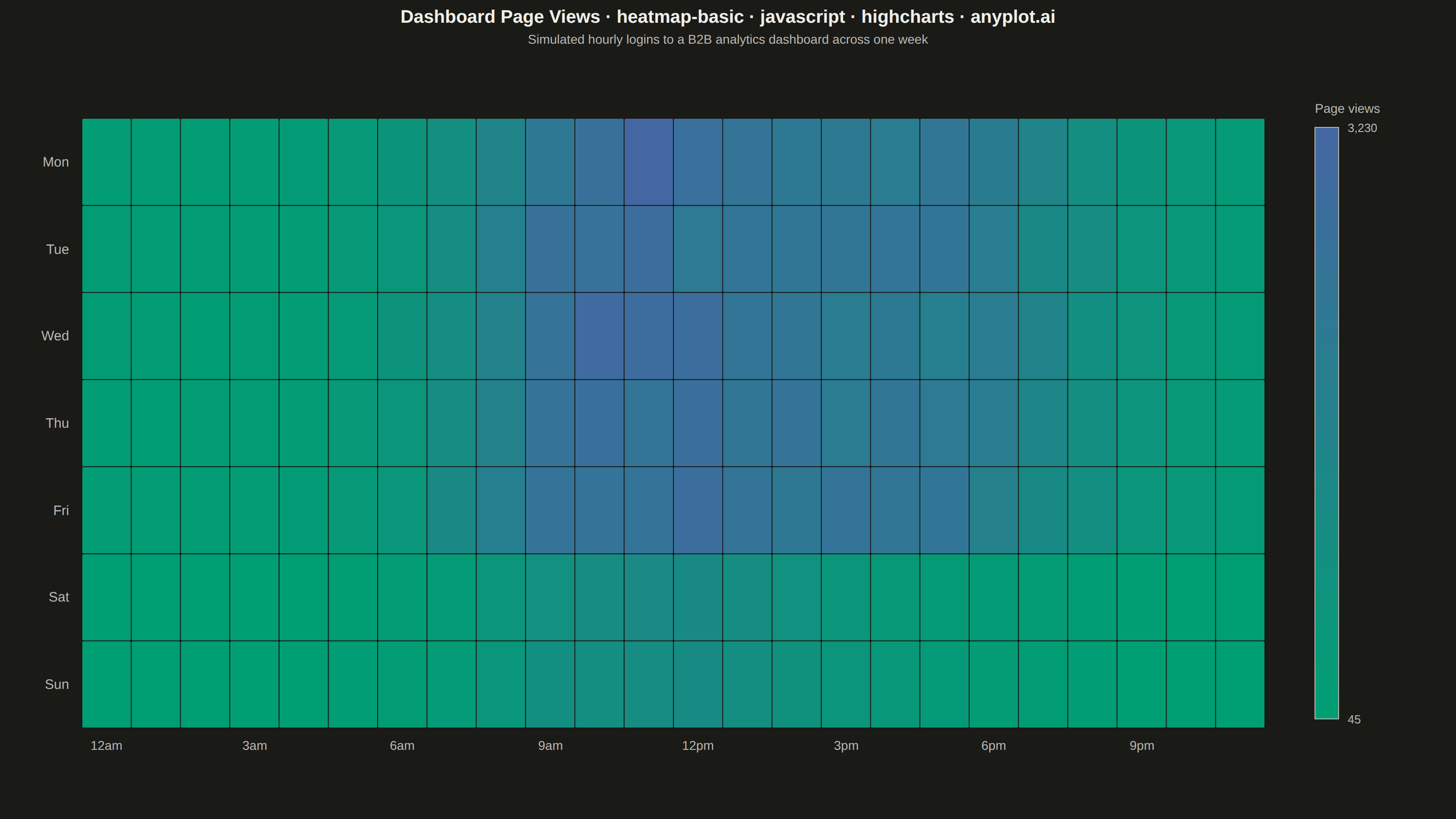

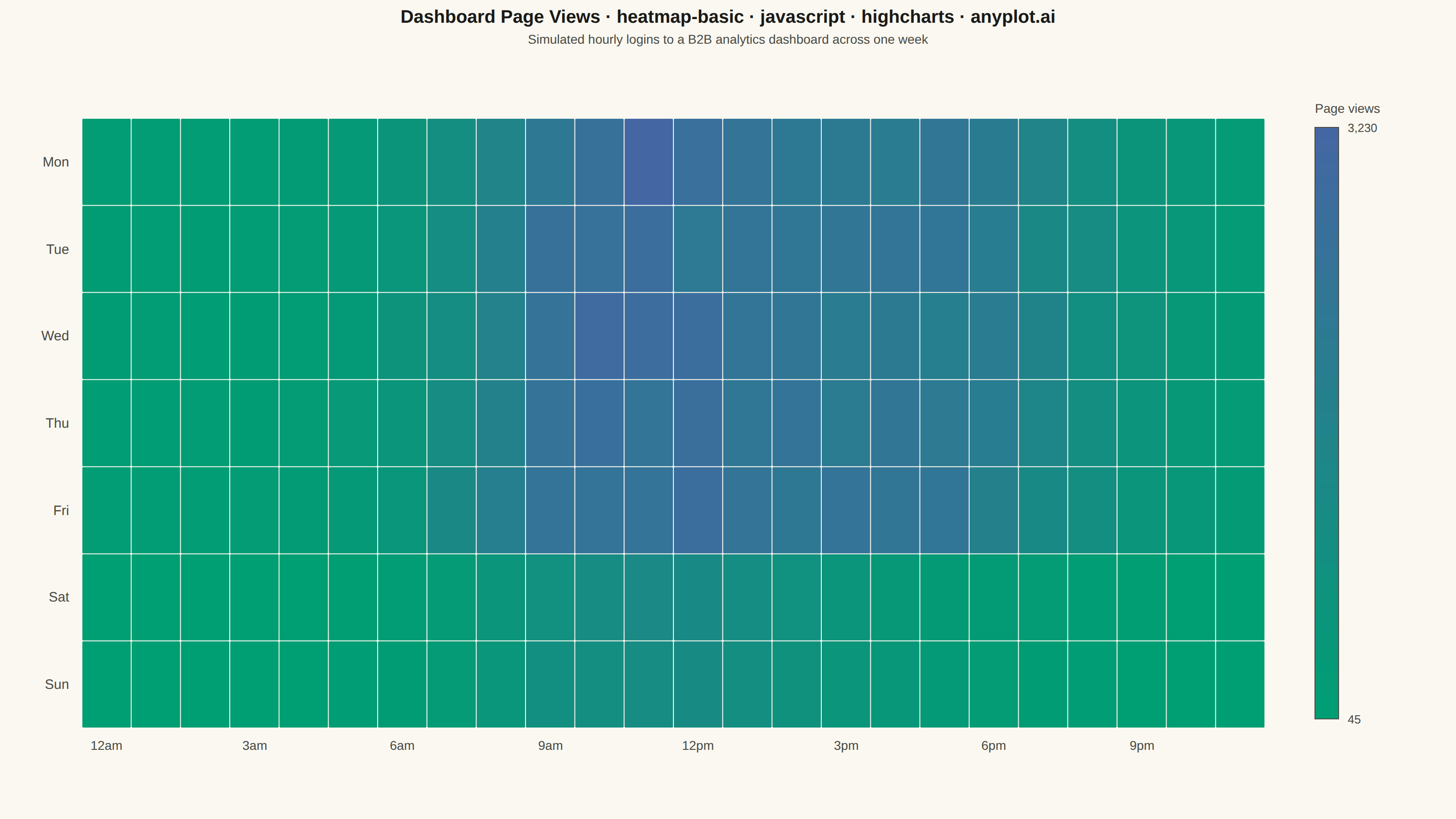

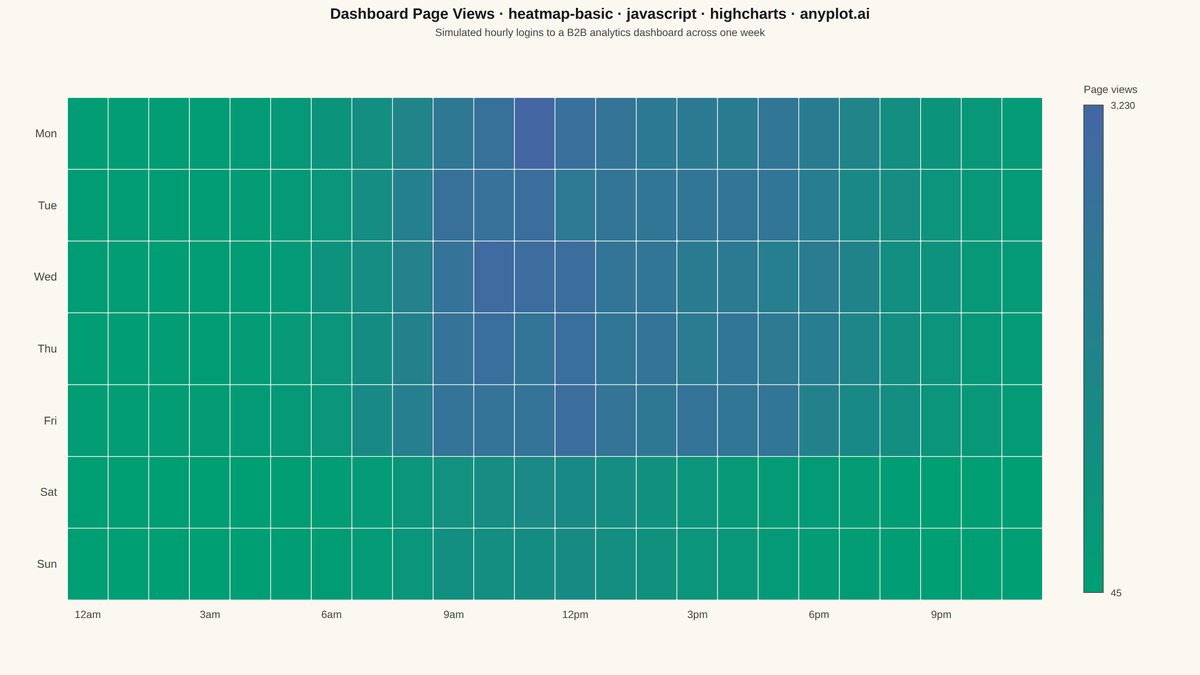

A heatmap displaying values in a matrix format using color intensity. Each cell's color represents the magnitude of the value, making it easy to identify patterns, clusters, and outliers in two-dimensional data. Essential for visualizing correlations, frequencies, and relationships between variables.
// anyplot.ai
// heatmap-basic: Basic Heatmap
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 86/100 | Created: 2026-08-20
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data: dashboard page views by day of week and hour of day -------------
// The core Highcharts bundle has no heatmap/colorAxis-mapping module loaded,
// so the grid is drawn cell-by-cell with the SVG renderer instead.
const DAYS = ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun'];
const HOURS = Array.from({ length: 24 }, (_, h) => h);
const HOUR_LABELS = HOURS.map((h) => (h === 0 ? '12am' : h < 12 ? `${h}am` : h === 12 ? '12pm' : `${h - 12}pm`));
const N_ROWS = DAYS.length;
const N_COLS = HOURS.length;
// Deterministic LCG — the browser has no seeded RNG.
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
// Two-Gaussian daily curve — a morning login peak and a late-afternoon peak,
// shifted and damped on weekends to mimic a B2B SaaS dashboard's usage rhythm.
function gaussian(x, center, width) {
return Math.exp(-((x - center) ** 2) / (2 * width * width));
}
function hourlyBase(hour, isWeekend) {
const morningPeak = isWeekend ? 11 : 10;
const afternoonPeak = isWeekend ? 14 : 16;
const morning = gaussian(hour, morningPeak, 2.2);
const afternoon = gaussian(hour, afternoonPeak, 3);
return 0.04 + 0.75 * morning + (isWeekend ? 0.3 : 0.65) * afternoon;
}
const PEAK_VIEWS = 3200;
const VIEWS = DAYS.map((_, row) => {
const isWeekend = row >= 5;
const dayFactor = isWeekend ? 0.4 : 1.0;
return HOURS.map((hour) => {
const base = hourlyBase(hour, isWeekend) * dayFactor;
const noise = 0.85 + rand() * 0.3;
return Math.round(base * PEAK_VIEWS * noise);
});
});
let minViews = Infinity;
let maxViews = -Infinity;
VIEWS.forEach((row) =>
row.forEach((v) => {
if (v < minViews) minViews = v;
if (v > maxViews) maxViews = v;
})
);
// --- Color: imprint_seq — single-polarity data (page views, always >= 0) ---
function hexToRgb(hex) {
return [parseInt(hex.slice(1, 3), 16), parseInt(hex.slice(3, 5), 16), parseInt(hex.slice(5, 7), 16)];
}
const SEQ_LO = hexToRgb(t.seq[0]); // #009E73
const SEQ_HI = hexToRgb(t.seq[1]); // #4467A3
function lerp(a, b, f) {
return a + (b - a) * f;
}
function viewsRgb(value) {
const f = (value - minViews) / (maxViews - minViews);
return [Math.round(lerp(SEQ_LO[0], SEQ_HI[0], f)), Math.round(lerp(SEQ_LO[1], SEQ_HI[1], f)), Math.round(lerp(SEQ_LO[2], SEQ_HI[2], f))];
}
function viewsFill(value) {
const [red, green, blue] = viewsRgb(value);
return `rgb(${red},${green},${blue})`;
}
// --- Title (fontsize scaled off the 67-char baseline) ----------------------
const TITLE_TEXT = 'Dashboard Page Views · heatmap-basic · javascript · highcharts · anyplot.ai';
const TITLE_FS = Math.max(Math.round(22 * Math.min(1, 67 / TITLE_TEXT.length)), 14);
// Fixed chart geometry (landscape canvas, harness-guaranteed 1600x900 CSS px)
// — a single source of truth for the margin, the grid, and the invisible
// hover layer below, so everything lines up without a runtime resync.
const CHART_MARGIN = [130, 210, 100, 90]; // [top, right, bottom, left]
const CELL_W = (window.ANYPLOT_SIZE.width - CHART_MARGIN[1] - CHART_MARGIN[3]) / N_COLS;
const CELL_H = (window.ANYPLOT_SIZE.height - CHART_MARGIN[0] - CHART_MARGIN[2]) / N_ROWS;
const MARKER_RADIUS = Math.max(Math.min(CELL_W, CELL_H) / 2 - 2, 3);
const drawn = [];
function clearDrawn() {
drawn.forEach((el) => {
try {
el.destroy();
} catch (_err) {
// already removed
}
});
drawn.length = 0;
}
function drawAll() {
const chart = this;
clearDrawn();
const r = chart.renderer;
const cellW = chart.plotWidth / N_COLS;
const cellH = chart.plotHeight / N_ROWS;
// Grid cells — full N_ROWS x N_COLS matrix, no masking needed (unlike a
// symmetric correlation matrix, this data has no mirror redundancy).
for (let row = 0; row < N_ROWS; row++) {
for (let col = 0; col < N_COLS; col++) {
const value = VIEWS[row][col];
const x = chart.plotLeft + col * cellW;
const y = chart.plotTop + row * cellH;
drawn.push(
r
.rect(x + 0.5, y + 0.5, cellW - 1, cellH - 1, 1)
.attr({ fill: viewsFill(value), stroke: 'none', zIndex: 2 })
.add()
);
}
}
// Row labels (left, right-aligned against the grid).
DAYS.forEach((lbl, row) => {
const cy = chart.plotTop + (row + 0.5) * cellH + 5;
drawn.push(
r
.text(lbl, chart.plotLeft - 14, cy)
.attr({ align: 'right', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '15px' })
.add()
);
});
// Column labels — every 3rd hour to avoid crowding 24 narrow columns.
HOUR_LABELS.forEach((lbl, col) => {
if (col % 3 !== 0) return;
const cx = chart.plotLeft + (col + 0.5) * cellW;
drawn.push(
r
.text(lbl, cx, chart.plotTop + chart.plotHeight + 24)
.attr({ align: 'center', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '14px' })
.add()
);
});
// Vertical colorbar in the freed right margin.
const barLeft = chart.plotLeft + chart.plotWidth + 55;
const barTop = chart.plotTop + 10;
const barWidth = 26;
const barHeight = chart.plotHeight - 20;
const segments = 50;
const segH = barHeight / segments;
for (let i = 0; i < segments; i++) {
const value = maxViews - ((maxViews - minViews) * i) / (segments - 1);
drawn.push(
r
.rect(barLeft, barTop + i * segH, barWidth, segH + 0.5)
.attr({ fill: viewsFill(value), zIndex: 2 })
.add()
);
}
drawn.push(
r
.rect(barLeft, barTop, barWidth, barHeight)
.attr({ fill: 'none', stroke: t.inkSoft, 'stroke-width': 1, zIndex: 2 })
.add()
);
[
[maxViews, 0],
[minViews, 1],
].forEach(([value, frac]) => {
drawn.push(
r
.text(Math.round(value).toLocaleString(), barLeft + barWidth + 10, barTop + frac * barHeight + 5)
.attr({ align: 'left', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '13px' })
.add()
);
});
drawn.push(
r
.text('Page views', barLeft, barTop - 16)
.attr({ align: 'left', zIndex: 2 })
.css({ color: t.inkSoft, fontSize: '14px', fontWeight: '500' })
.add()
);
}
// Invisible scatter layer aligned to each drawn cell so hovering exposes a
// real Highcharts tooltip — the core bundle has no heatmap/colorAxis module,
// but a matched-axis scatter series recovers native hover interactivity
// without disturbing the hand-drawn grid above it.
const cellPoints = [];
for (let row = 0; row < N_ROWS; row++) {
for (let col = 0; col < N_COLS; col++) {
cellPoints.push({ x: col, y: row, views: VIEWS[row][col], dayLabel: DAYS[row], hourLabel: HOUR_LABELS[col] });
}
}
Highcharts.chart('container', {
chart: {
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
margin: CHART_MARGIN,
events: { load: drawAll, redraw: drawAll },
},
credits: { enabled: false },
title: {
text: TITLE_TEXT,
style: { color: t.ink, fontSize: TITLE_FS + 'px', fontWeight: '600' },
},
subtitle: {
text: 'Simulated hourly logins to a B2B analytics dashboard across one week',
style: { color: t.inkSoft, fontSize: '14px' },
},
xAxis: { visible: false, min: -0.5, max: N_COLS - 0.5 },
yAxis: { visible: false, gridLineWidth: 0, min: -0.5, max: N_ROWS - 0.5, reversed: true },
legend: { enabled: false },
tooltip: {
enabled: true,
backgroundColor: t.elevatedBg,
borderColor: t.inkSoft,
borderRadius: 6,
style: { color: t.ink, fontSize: '13px' },
formatter: function () {
const p = this.point;
return `<b>${p.dayLabel} ${p.hourLabel}</b><br/>${p.views.toLocaleString()} views`;
},
},
plotOptions: {
series: { animation: false },
scatter: {
enableMouseTracking: true,
stickyTracking: false,
marker: {
enabled: true,
symbol: 'circle',
radius: MARKER_RADIUS,
fillColor: 'rgba(0,0,0,0.001)',
lineWidth: 0,
states: { hover: { enabled: false } },
},
},
},
series: [
{
type: 'scatter',
name: 'Page views',
data: cellPoints,
},
],
});
Part of Basic Heatmap on anyplot.ai.
