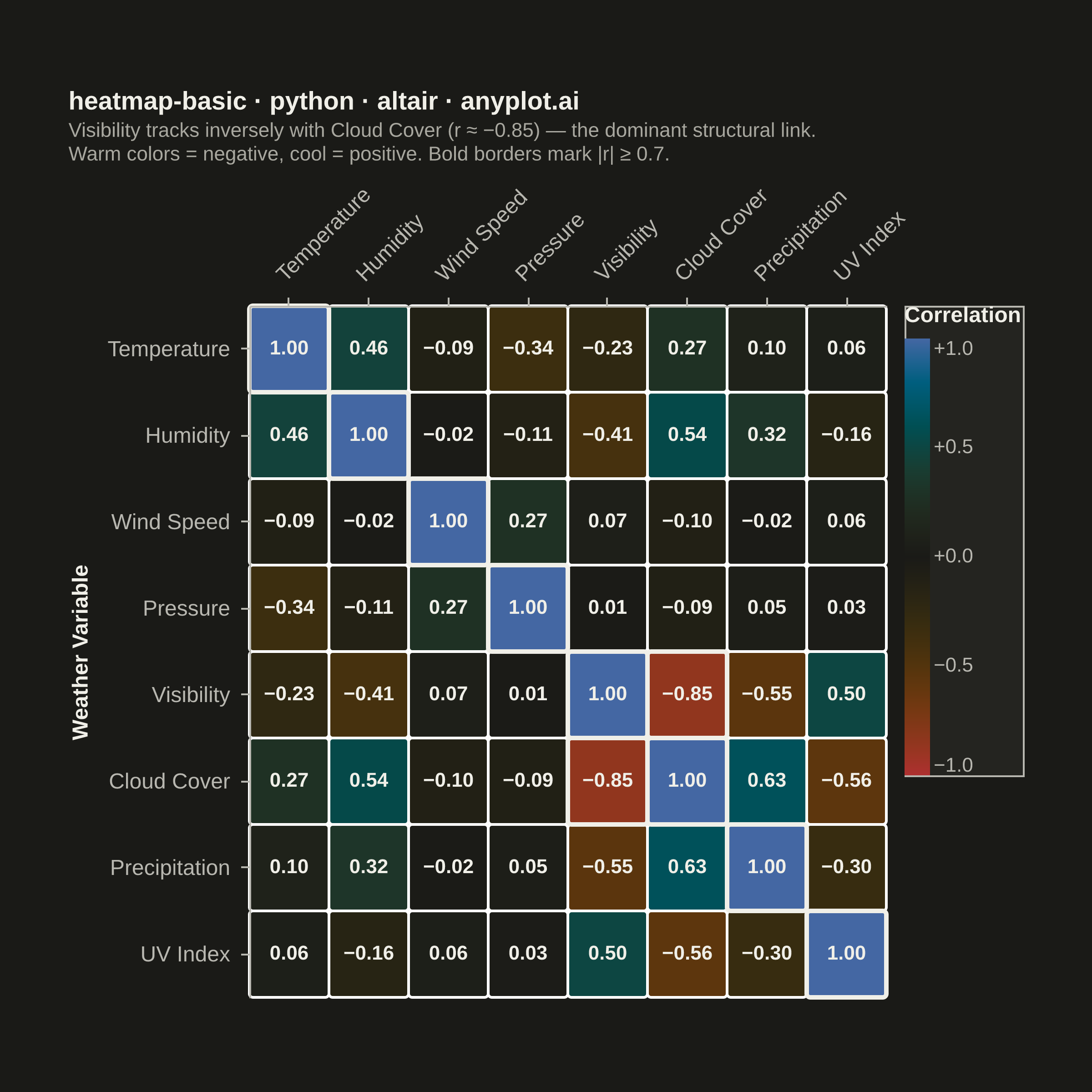

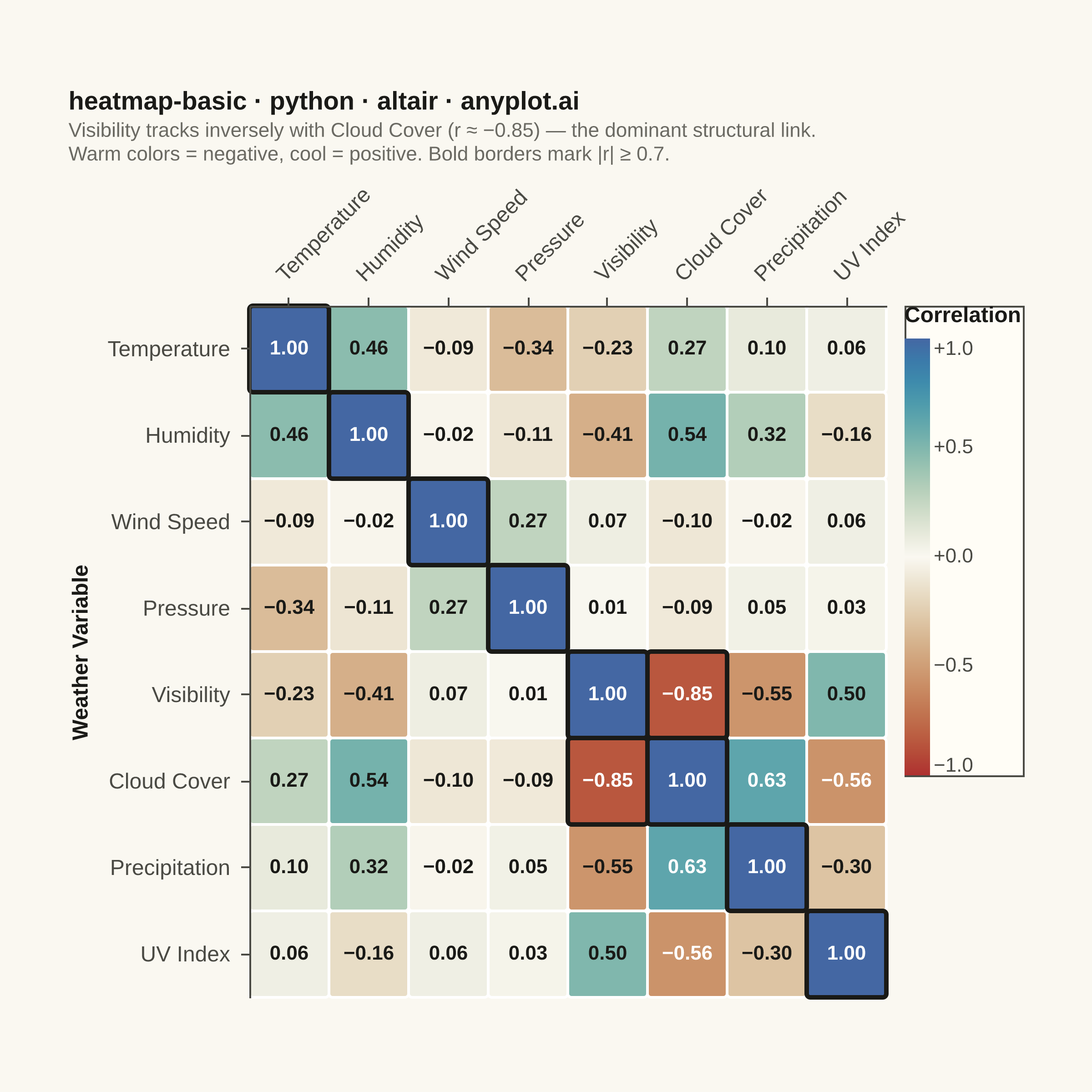

A heatmap displaying values in a matrix format using color intensity. Each cell's color represents the magnitude of the value, making it easy to identify patterns, clusters, and outliers in two-dimensional data. Essential for visualizing correlations, frequencies, and relationships between variables.
""" anyplot.ai
heatmap-basic: Basic Heatmap
Library: altair 6.1.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-28
"""
import os
import sys
# Remove current script directory to prevent self-import (file is named altair.py)
_here = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if p not in ("", ".") and os.path.abspath(p) != _here]
import altair as alt
import numpy as np
import pandas as pd
from PIL import Image
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Imprint diverging colormap midpoint — theme-adaptive
DIV_MID = "#FAF8F1" if THEME == "light" else "#1A1A17"
# Data — correlation matrix for 8 weather variables
np.random.seed(42)
variables = [
"Temperature",
"Humidity",
"Wind Speed",
"Pressure",
"Visibility",
"Cloud Cover",
"Precipitation",
"UV Index",
]
n_samples = 200
raw = np.random.randn(n_samples, len(variables))
# Inject realistic correlations; multiplier 1.2 on Visibility pushes it below -0.8
raw[:, 1] += raw[:, 0] * 0.6 # Humidity ~ Temperature
raw[:, 5] += raw[:, 1] * 0.7 # Cloud Cover ~ Humidity
raw[:, 6] += raw[:, 5] * 0.65 # Precipitation ~ Cloud Cover
raw[:, 4] -= raw[:, 5] * 1.2 # Visibility strongly inversely ~ Cloud Cover (< -0.8)
raw[:, 7] -= raw[:, 5] * 0.7 # UV Index inversely ~ Cloud Cover
raw[:, 7] += raw[:, 0] * 0.5 # UV Index ~ Temperature
raw[:, 3] -= raw[:, 0] * 0.4 # Pressure inversely ~ Temperature
raw[:, 2] += raw[:, 3] * 0.3 # Wind Speed ~ Pressure
corr = np.corrcoef(raw.T)
axis_order = list(variables)
df = pd.DataFrame(
[
{"Row": row_var, "Column": col_var, "value": round(corr[i, j], 2)}
for i, row_var in enumerate(variables)
for j, col_var in enumerate(variables)
]
)
# Title — 44 chars < 67 baseline → ratio = 1.0 → default fontSize 16
title_str = "heatmap-basic · python · altair · anyplot.ai"
# Text annotation color: all light on dark theme; adaptive on light theme
if THEME == "dark":
text_color_enc = alt.value("#F0EFE8")
else:
text_color_enc = (
alt.when((alt.datum.value > 0.55) | (alt.datum.value < -0.55))
.then(alt.value("#ffffff"))
.otherwise(alt.value(INK))
)
# Heatmap layer — Imprint diverging colormap (#AE3030 → midpoint → #4467A3)
heatmap = (
alt.Chart(df)
.mark_rect(stroke="#ffffff", strokeWidth=1.5, cornerRadius=2)
.encode(
x=alt.X(
"Column:N",
title=None,
sort=axis_order,
axis=alt.Axis(labelFontSize=12, labelAngle=-45, orient="top", labelPadding=6),
),
y=alt.Y(
"Row:N",
title="Weather Variable",
sort=axis_order,
axis=alt.Axis(labelFontSize=12, titleFontSize=12, labelPadding=6, titlePadding=8),
),
color=alt.Color(
"value:Q",
scale=alt.Scale(range=["#AE3030", DIV_MID, "#4467A3"], domain=[-1, 1], domainMid=0),
legend=alt.Legend(
title="Correlation",
titleFontSize=12,
labelFontSize=11,
gradientLength=240,
gradientThickness=14,
titlePadding=6,
offset=10,
direction="vertical",
values=[-1, -0.5, 0, 0.5, 1],
format="+.1f",
),
),
tooltip=[
alt.Tooltip("Column:N", title="Column"),
alt.Tooltip("Row:N", title="Row"),
alt.Tooltip("value:Q", title="Correlation", format=".2f"),
],
)
)
# Bold borders for strong correlations (|r| ≥ 0.7) — theme-adaptive stroke
highlight = (
alt.Chart(df)
.transform_filter((alt.datum.value >= 0.7) | (alt.datum.value <= -0.7))
.mark_rect(stroke=INK, strokeWidth=2.5, filled=False, cornerRadius=2)
.encode(x=alt.X("Column:N", sort=axis_order), y=alt.Y("Row:N", sort=axis_order))
)
# Cell value annotations
text = (
alt.Chart(df)
.mark_text(fontSize=11, fontWeight="bold")
.encode(
x=alt.X("Column:N", sort=axis_order),
y=alt.Y("Row:N", sort=axis_order),
text=alt.Text("value:Q", format=".2f"),
color=text_color_enc,
)
)
chart = (
(heatmap + highlight + text)
.properties(
width=350,
height=380,
background=PAGE_BG,
title=alt.Title(
title_str,
subtitle=[
"Visibility tracks inversely with Cloud Cover (r ≈ −0.85) — the dominant structural link.",
"Warm colors = negative, cool = positive. Bold borders mark |r| ≥ 0.7.",
],
fontSize=14,
subtitleFontSize=11,
subtitleColor=INK_MUTED,
color=INK,
anchor="start",
offset=10,
),
padding={"left": 10, "right": 10, "top": 10, "bottom": 10},
)
.configure_axis(grid=False, domainColor=INK_SOFT, tickColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
.configure_view(fill=PAGE_BG, strokeWidth=0)
.configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)
# Save PNG — target: 2400 × 2400 (square, 1:1 for symmetric heatmap)
TW, TH = 2400, 2400
chart.save(f"plot-{THEME}.png", scale_factor=4.0)
_img = Image.open(f"plot-{THEME}.png").convert("RGB")
_w, _h = _img.size
if _w > TW or _h > TH:
raise SystemExit(
f"altair vl-convert produced {_w}×{_h}, exceeds target {TW}×{TH}. "
f"Shrink chart .properties(width=, height=) values and re-render."
)
if _w < TW or _h < TH:
_canvas = Image.new("RGB", (TW, TH), PAGE_BG)
_canvas.paste(_img, ((TW - _w) // 2, (TH - _h) // 2))
_canvas.save(f"plot-{THEME}.png")
# Save HTML
chart.save(f"plot-{THEME}.html")
Part of Basic Heatmap on anyplot.ai.
