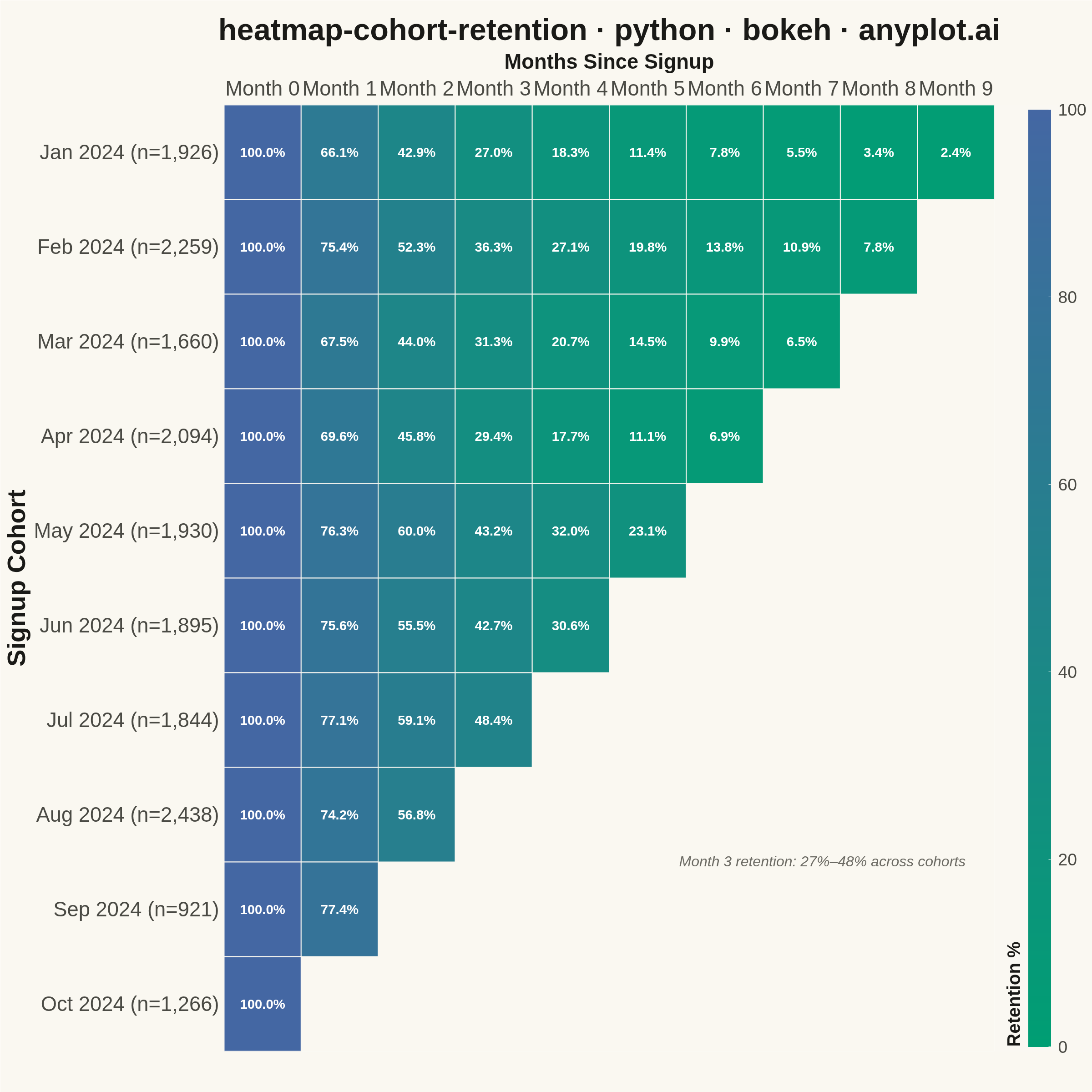

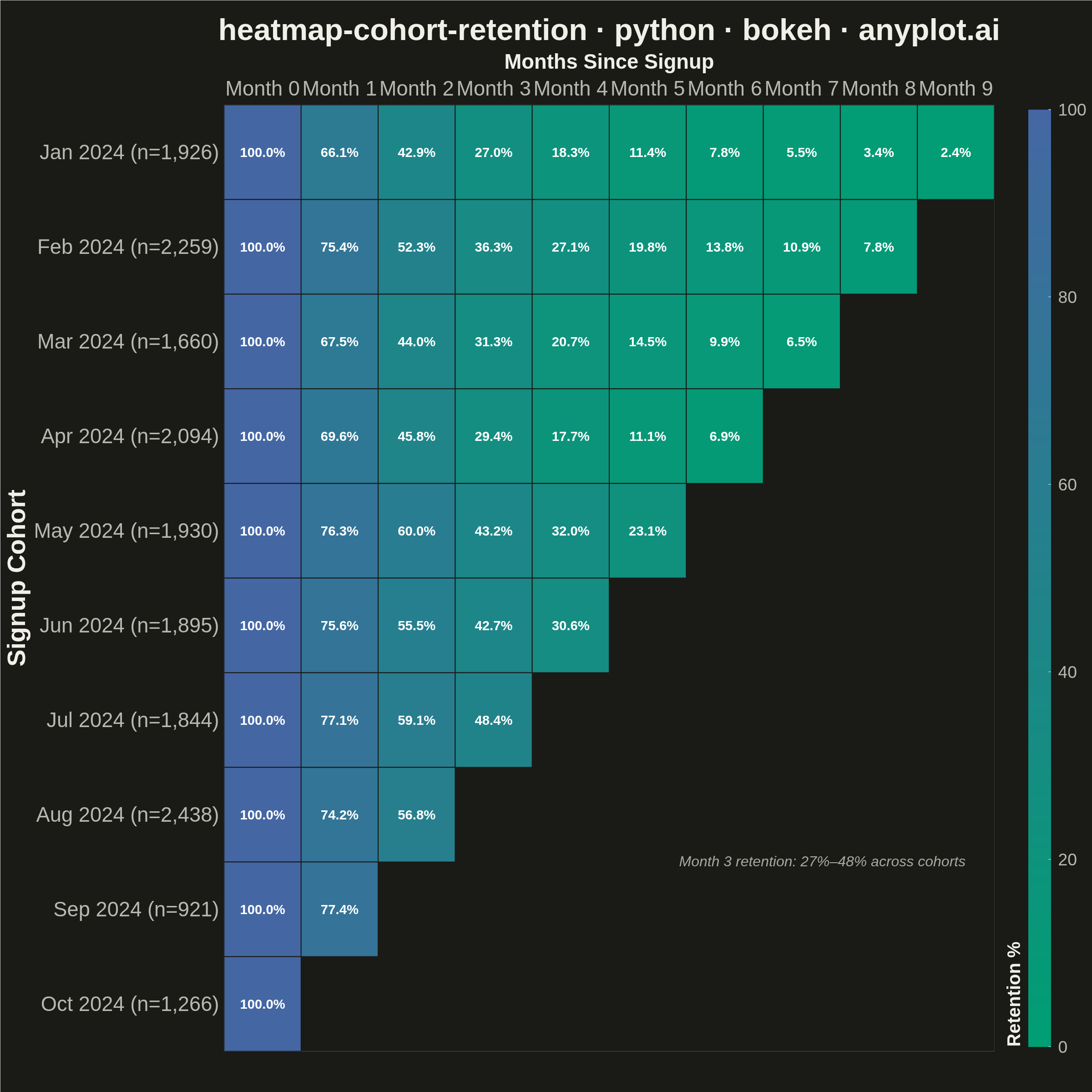

A triangular heatmap displaying user retention rates across signup cohorts and time periods. Each row represents a cohort (e.g., users who signed up in a specific month), each column represents periods since signup, and cell color intensity indicates the retention percentage. The triangular shape naturally emerges because more recent cohorts have fewer elapsed periods. This visualization reveals retention trends, highlights churn patterns, and enables comparison of cohort quality over time.
""" anyplot.ai
heatmap-cohort-retention: Cohort Retention Heatmap
Library: bokeh 3.9.1 | Python 3.13.14
Quality: 88/100 | Updated: 2026-06-20
"""
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import BasicTicker, ColorBar, ColumnDataSource, HoverTool, Label, LinearColorMapper
from bokeh.plotting import figure
from bokeh.transform import transform
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens — Imprint palette chrome
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
# Imprint sequential colormap (imprint_seq) — single-polarity continuous retention data
# Interpolates #009E73 (brand green) → #4467A3 (blue) across 256 stops
ANYPLOT_SEQ256 = [
"#{:02X}{:02X}{:02X}".format(round(68 * t / 255), round(158 - 55 * t / 255), round(115 + 48 * t / 255))
for t in range(256)
]
# Data: Monthly SaaS signup cohorts with retention tracking
np.random.seed(42)
cohort_labels = [
"Jan 2024",
"Feb 2024",
"Mar 2024",
"Apr 2024",
"May 2024",
"Jun 2024",
"Jul 2024",
"Aug 2024",
"Sep 2024",
"Oct 2024",
]
n_cohorts = len(cohort_labels)
n_periods = 10
cohort_sizes = np.random.randint(800, 2500, size=n_cohorts)
# Generate realistic triangular retention data
retention = np.full((n_cohorts, n_periods), np.nan)
for i in range(n_cohorts):
max_periods = n_periods - i
retention[i, 0] = 100.0
base_decay = np.random.uniform(0.65, 0.80)
for j in range(1, max_periods):
decay = base_decay + np.random.uniform(-0.05, 0.05)
retention[i, j] = retention[i, j - 1] * decay
retention[i, j] = max(retention[i, j], 2.0)
# Flatten into ColumnDataSource format
period_labels = [f"Month {i}" for i in range(n_periods)]
y_labels = [f"{label} (n={size:,})" for label, size in zip(cohort_labels, cohort_sizes, strict=True)]
x_coords, y_coords, values, text_vals = [], [], [], []
for i in range(n_cohorts):
for j in range(n_periods):
if not np.isnan(retention[i, j]):
x_coords.append(period_labels[j])
y_coords.append(y_labels[i])
values.append(retention[i, j])
text_vals.append(f"{retention[i, j]:.1f}%")
source = ColumnDataSource(data={"x": x_coords, "y": y_coords, "value": values, "text": text_vals})
# Color mapper using Imprint sequential palette
mapper = LinearColorMapper(palette=ANYPLOT_SEQ256, low=0, high=100)
# Figure — square 2400×2400 canvas for symmetric heatmap
TITLE = "heatmap-cohort-retention · python · bokeh · anyplot.ai"
W, H = 2400, 2400
p = figure(
width=W,
height=H,
x_range=period_labels,
y_range=list(reversed(y_labels)),
title=TITLE,
x_axis_location="above",
toolbar_location=None,
min_border_left=290,
min_border_right=130,
min_border_top=230,
min_border_bottom=90,
)
# Heatmap rectangles with Imprint sequential fill
rects = p.rect(
x="x",
y="y",
width=1,
height=1,
source=source,
fill_color=transform("value", mapper),
line_color=PAGE_BG,
line_width=2,
)
# HoverTool — Bokeh's distinctive interactive exploration feature
hover = HoverTool(renderers=[rects], tooltips=[("Cohort", "@y"), ("Period", "@x"), ("Retention", "@text")])
p.add_tools(hover)
# Cell text — white is readable against both Imprint seq endpoints (both mid-dark)
p.text(
x="x",
y="y",
text="text",
source=source,
text_align="center",
text_baseline="middle",
text_font_size="22pt",
text_color="white",
text_font_style="bold",
)
# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None
p.title.text_font_size = "50pt"
p.title.align = "center"
p.title.text_color = INK
p.title.text_font_style = "bold"
p.xaxis.axis_label = "Months Since Signup"
p.yaxis.axis_label = "Signup Cohort"
p.xaxis.axis_label_text_font_size = "34pt"
p.yaxis.axis_label_text_font_size = "42pt"
p.xaxis.axis_label_text_font_style = "bold"
p.yaxis.axis_label_text_font_style = "bold"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "34pt"
p.yaxis.major_label_text_font_size = "34pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.axis.axis_line_color = None
p.axis.major_tick_line_color = None
p.axis.minor_tick_line_color = None
p.grid.grid_line_color = None
# Insight annotation — Month 3 retention variance across cohorts
month3_retentions = {y_labels[i]: retention[i, 3] for i in range(n_cohorts) if not np.isnan(retention[i, 3])}
best_val = month3_retentions[max(month3_retentions, key=month3_retentions.get)]
worst_val = month3_retentions[min(month3_retentions, key=month3_retentions.get)]
p.add_layout(
Label(
x=1000,
y=400,
x_units="screen",
y_units="screen",
text=f"Month 3 retention: {worst_val:.0f}%–{best_val:.0f}% across cohorts",
text_font_size="24pt",
text_color=INK_MUTED,
text_font_style="italic",
)
)
# Color bar with theme-adaptive styling
color_bar = ColorBar(
color_mapper=mapper,
ticker=BasicTicker(desired_num_ticks=6),
label_standoff=16,
major_label_text_font_size="28pt",
major_label_text_color=INK_SOFT,
title="Retention %",
title_text_font_size="30pt",
title_text_font_style="bold",
title_text_color=INK,
title_standoff=20,
width=50,
location=(0, 0),
bar_line_color=None,
border_line_color=None,
background_fill_color=PAGE_BG,
)
p.add_layout(color_bar, "right")
# Save HTML (interactive artifact) then screenshot with headless Chrome
output_file(f"plot-{THEME}.html")
save(p)
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
# Use CDP to force exact viewport dimensions (avoids outer-window-vs-viewport discrepancy)
driver.execute_cdp_cmd(
"Emulation.setDeviceMetricsOverride", {"width": W, "height": H, "deviceScaleFactor": 1, "mobile": False}
)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
