Cohort Retention Heatmap — Seaborn

A triangular heatmap displaying user retention rates across signup cohorts and time periods. Each row represents a cohort (e.g., users who signed up in a specific month), each column represents periods since signup, and cell color intensity indicates the retention percentage. The triangular shape naturally emerges because more recent cohorts have fewer elapsed periods. This visualization reveals retention trends, highlights churn patterns, and enables comparison of cohort quality over time.

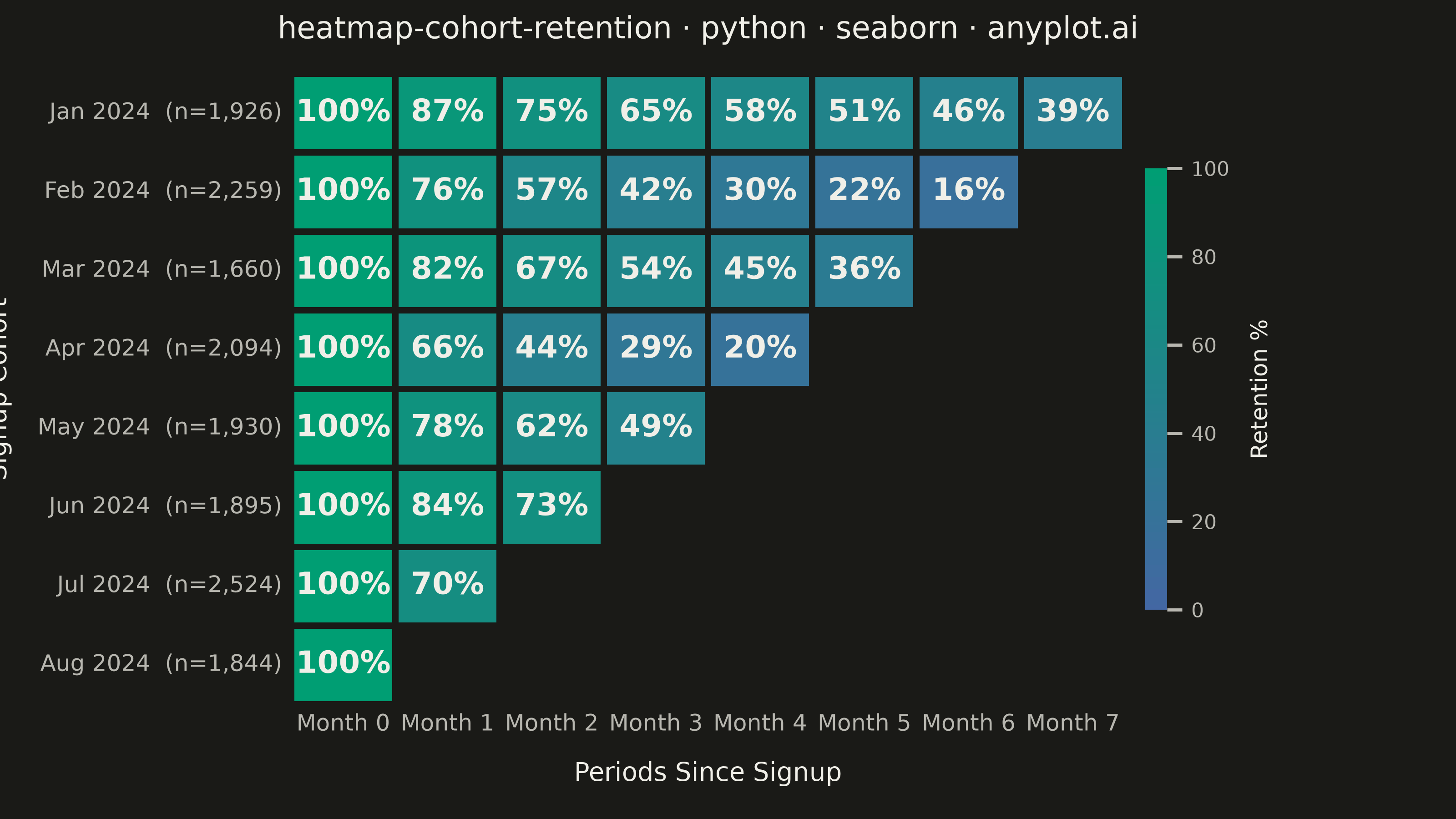

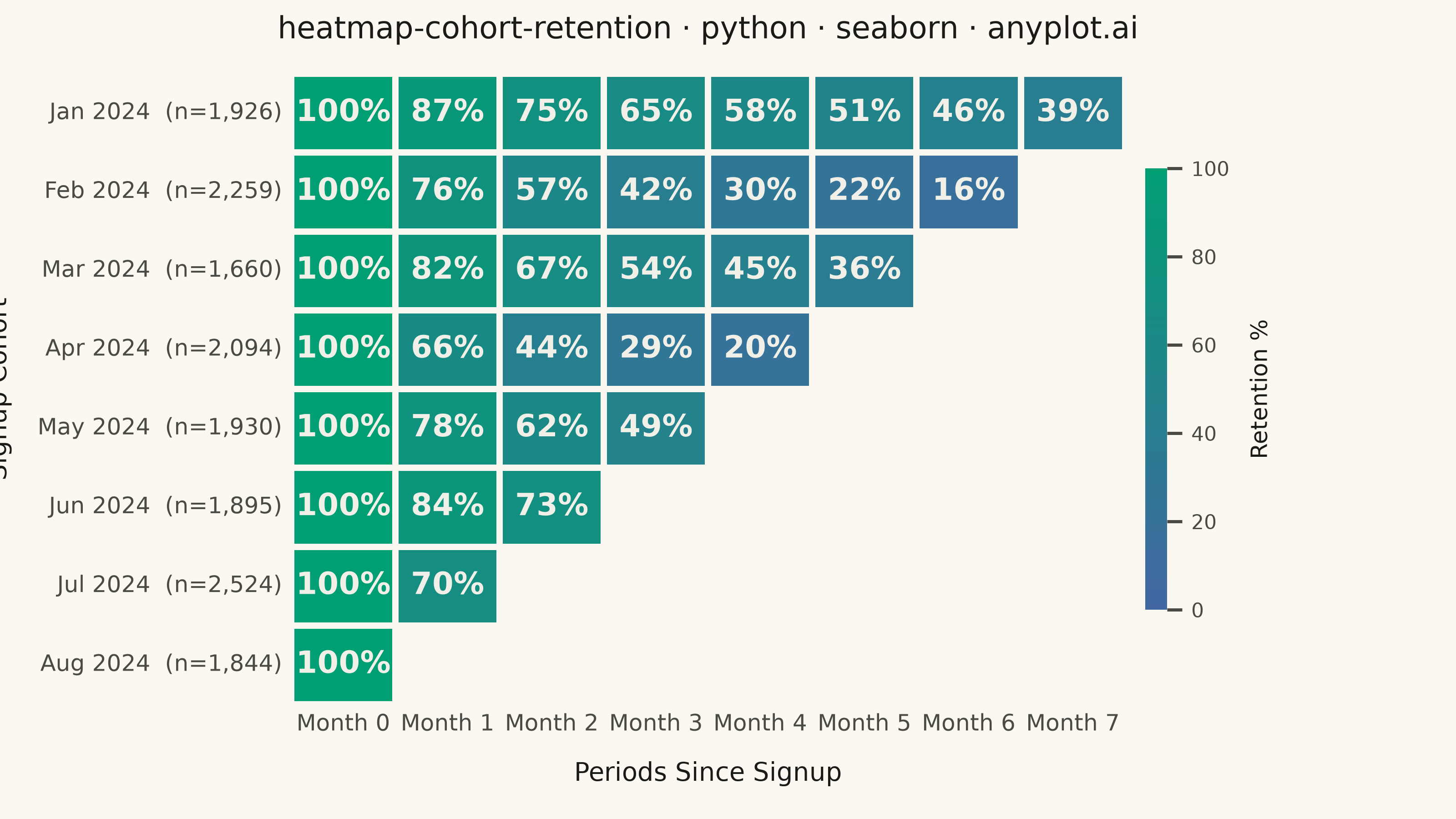

Cohort Retention Heatmap rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
heatmap-cohort-retention: Cohort Retention Heatmap
Library: seaborn 0.13.2 | Python 3.13.14
Quality: 90/100 | Updated: 2026-06-20
"""

import os

import matplotlib.colors as mcolors
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Imprint sequential colormap — blue (low retention) to green (high retention)
imprint_seq = mcolors.LinearSegmentedColormap.from_list("imprint_seq", ["#4467A3", "#009E73"])

# Theme-aware seaborn style
sns.set_theme(
    style="white",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
    },
)

# Data — 8 cohorts x 8 periods (triangular shape)
np.random.seed(42)

cohort_labels = ["Jan 2024", "Feb 2024", "Mar 2024", "Apr 2024", "May 2024", "Jun 2024", "Jul 2024", "Aug 2024"]
n_cohorts = len(cohort_labels)
n_periods = n_cohorts
cohort_sizes = np.random.randint(800, 2800, size=n_cohorts)

# Deliberately varied decay rates for distinct cross-cohort comparison
base_decays = [0.88, 0.74, 0.82, 0.67, 0.79, 0.86, 0.71, 0.90]
retention_data = np.full((n_cohorts, n_periods), np.nan)
for i in range(n_cohorts):
    max_periods = n_periods - i
    retention_data[i, 0] = 100.0
    for j in range(1, max_periods):
        prev = retention_data[i, j - 1]
        noise = np.random.uniform(-0.02, 0.02)
        decay = min(base_decays[i] + noise, 0.98)
        retention_data[i, j] = round(prev * decay, 1)

period_labels = [f"Month {i}" for i in range(n_periods)]
df_heatmap = pd.DataFrame(retention_data, index=cohort_labels, columns=period_labels)

# Plot — landscape canvas (3200 x 1800 px); wider cells accommodate annotations
fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400)
fig.set_facecolor(PAGE_BG)
ax.set_facecolor(PAGE_BG)

mask = df_heatmap.isna()
annot_strings = df_heatmap.map(lambda v: f"{v:.0f}%" if not np.isnan(v) else "")

sns.heatmap(
    df_heatmap,
    mask=mask,
    annot=annot_strings,
    fmt="",
    cmap=imprint_seq,
    vmin=0,
    vmax=100,
    linewidths=2.5,
    linecolor=PAGE_BG,
    ax=ax,
    annot_kws={"fontsize": 12, "fontweight": "bold", "color": "#F0EFE8"},
    cbar_kws={"label": "Retention %", "shrink": 0.7, "aspect": 20, "pad": 0.02},
    square=False,
)

# Style
y_labels = [f"{label}  (n={size:,})" for label, size in zip(cohort_labels, cohort_sizes, strict=True)]
ax.set_yticklabels(y_labels, rotation=0, fontsize=9)
ax.set_xticklabels(period_labels, rotation=0, fontsize=9)
ax.set_xlabel("Periods Since Signup", fontsize=10, labelpad=10)
ax.set_ylabel("Signup Cohort", fontsize=10, labelpad=10)

title = "heatmap-cohort-retention · python · seaborn · anyplot.ai"
ax.set_title(title, fontsize=12, fontweight="medium", pad=14)

# Colorbar styling
cbar = ax.collections[0].colorbar
cbar.ax.tick_params(labelsize=8, colors=INK_SOFT)
cbar.set_label("Retention %", fontsize=9, labelpad=8, color=INK)
cbar.outline.set_visible(False)

# Remove all spines; hide tick marks
sns.despine(ax=ax, top=True, right=True, bottom=True, left=True)
ax.tick_params(axis="both", length=0)

# Explicit layout control — no bbox_inches="tight" (causes canvas drift per seaborn.md)
fig.subplots_adjust(left=0.20, right=0.89, top=0.91, bottom=0.14)

# Save
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)
plt.close()

Part of Cohort Retention Heatmap on anyplot.ai.
