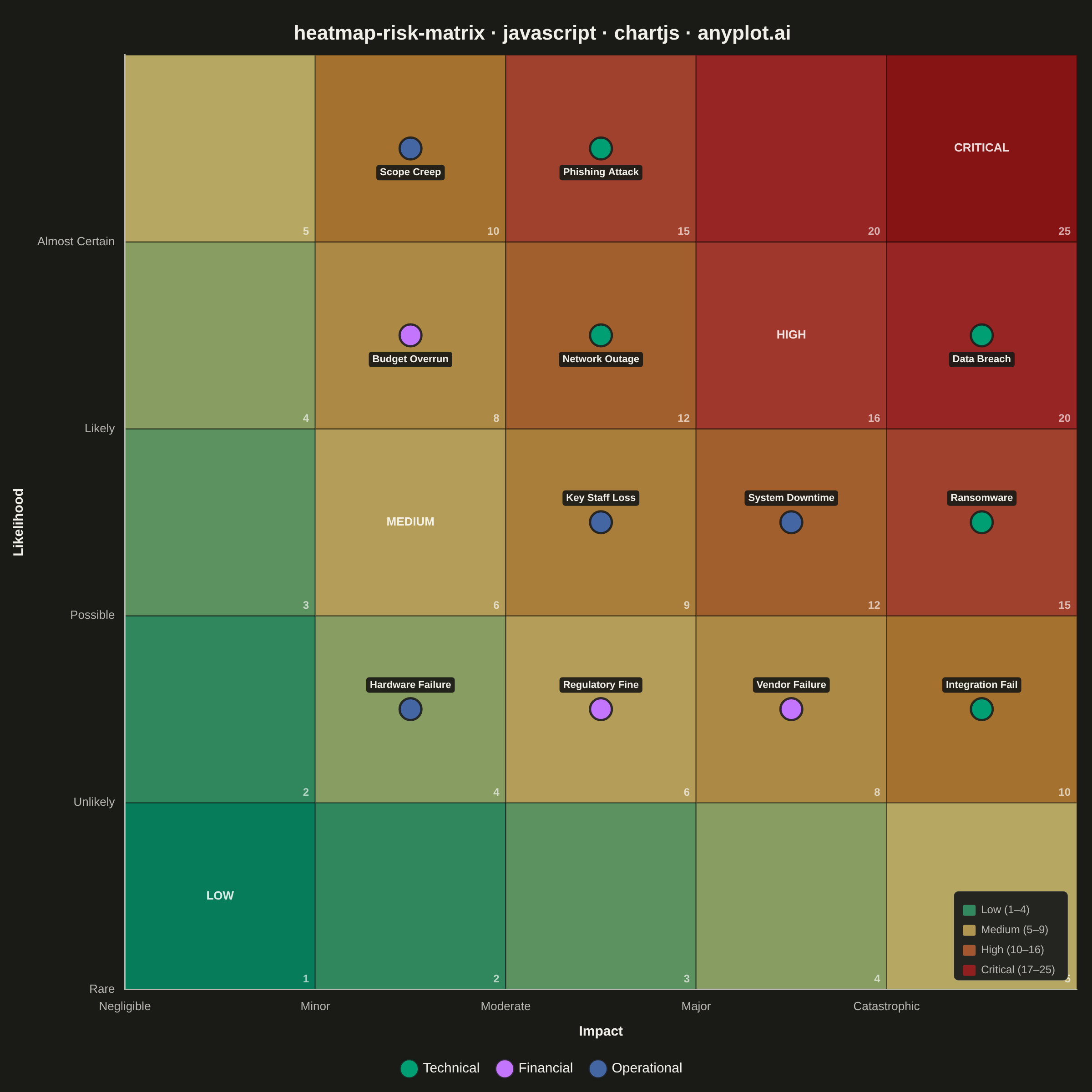

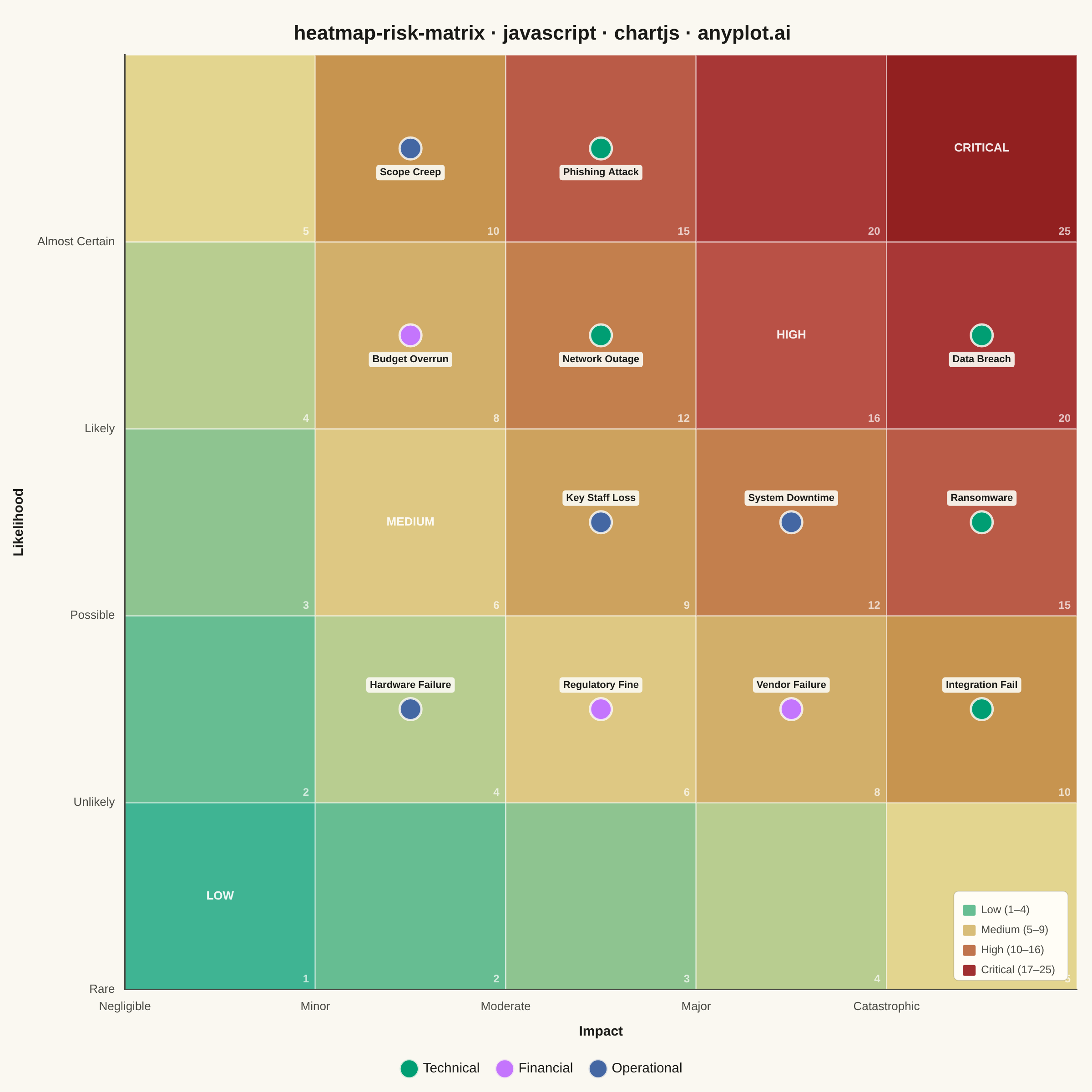

A 5x5 grid heatmap plotting risk likelihood against consequence severity, used to visualize and prioritize risks in project and enterprise risk management. Cells are color-coded from green (low risk) through yellow and orange to red (critical risk), with individual risk items plotted as labeled markers. The risk score for each cell is the product of likelihood and impact, and zones are labeled to indicate risk severity levels (Low, Medium, High, Critical).
// anyplot.ai
// heatmap-risk-matrix: Risk Assessment Matrix (Probability vs Impact)
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-20
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const THEME = window.ANYPLOT_THEME;
// --- Cell color: Imprint semantic anchors green → amber → ochre → red -------
function cellColor(score) {
const stops = [
{ s: 1, r: 0, g: 158, b: 115, a: 0.75 }, // #009E73 low risk
{ s: 5, r: 221, g: 204, b: 119, a: 0.80 }, // #DDCC77 medium risk
{ s: 10, r: 189, g: 130, b: 51, a: 0.85 }, // #BD8233 high risk
{ s: 17, r: 174, g: 48, b: 48, a: 0.90 }, // #AE3030 critical risk
{ s: 25, r: 140, g: 20, b: 20, a: 0.95 },
];
let lo = stops[0], hi = stops[stops.length - 1];
for (let i = 0; i < stops.length - 1; i++) {
if (score >= stops[i].s && score <= stops[i + 1].s) {
lo = stops[i]; hi = stops[i + 1]; break;
}
}
const f = lo.s === hi.s ? 0 : (score - lo.s) / (hi.s - lo.s);
const a = +(lo.a + (hi.a - lo.a) * f).toFixed(2);
return `rgba(${Math.round(lo.r + (hi.r - lo.r) * f)},${Math.round(lo.g + (hi.g - lo.g) * f)},${Math.round(lo.b + (hi.b - lo.b) * f)},${a})`;
}
// --- Data: IT security risk register ----------------------------------------
// 12 risks, all in unique cells — no jitter needed
const risks = [
{ name: "Data Breach", likelihood: 4, impact: 5, cat: 0 },
{ name: "Ransomware", likelihood: 3, impact: 5, cat: 0 },
{ name: "Integration Fail", likelihood: 2, impact: 5, cat: 0 },
{ name: "Phishing Attack", likelihood: 5, impact: 3, cat: 0 },
{ name: "Network Outage", likelihood: 4, impact: 3, cat: 0 },
{ name: "Vendor Failure", likelihood: 2, impact: 4, cat: 1 },
{ name: "Regulatory Fine", likelihood: 2, impact: 3, cat: 1 },
{ name: "Budget Overrun", likelihood: 4, impact: 2, cat: 1 },
{ name: "System Downtime", likelihood: 3, impact: 4, cat: 2 },
{ name: "Key Staff Loss", likelihood: 3, impact: 3, cat: 2 },
{ name: "Scope Creep", likelihood: 5, impact: 2, cat: 2 },
{ name: "Hardware Failure", likelihood: 2, impact: 2, cat: 2 },
];
const catConfig = [
{ label: "Technical", color: t.palette[0] }, // #009E73
{ label: "Financial", color: t.palette[1] }, // #C475FD
{ label: "Operational", color: t.palette[2] }, // #4467A3
];
const datasets = catConfig.map((cat, ci) => ({
label: cat.label,
data: risks
.filter(r => r.cat === ci)
.map(r => ({ x: r.impact, y: r.likelihood, name: r.name })),
backgroundColor: cat.color,
borderColor: THEME === "light" ? "rgba(250,248,241,0.85)" : "rgba(26,26,23,0.85)",
borderWidth: 2.5,
pointRadius: 12,
pointHoverRadius: 14,
}));
// --- Plugin: draw 5×5 colored risk matrix background -----------------------
const matrixBg = {
id: "matrixBg",
beforeDraw(chart) {
const { ctx, scales: { x, y }, chartArea: ca } = chart;
ctx.save();
ctx.beginPath();
ctx.rect(ca.left, ca.top, ca.right - ca.left, ca.bottom - ca.top);
ctx.clip();
for (let imp = 1; imp <= 5; imp++) {
for (let lik = 1; lik <= 5; lik++) {
const score = imp * lik;
const x0 = x.getPixelForValue(imp - 0.5);
const x1 = x.getPixelForValue(imp + 0.5);
const y0 = y.getPixelForValue(lik + 0.5);
const y1 = y.getPixelForValue(lik - 0.5);
const w = x1 - x0, h = y1 - y0;
// Colored fill
ctx.fillStyle = cellColor(score);
ctx.fillRect(x0, y0, w, h);
// Cell grid border
ctx.strokeStyle = THEME === "light" ? "rgba(255,255,255,0.45)" : "rgba(0,0,0,0.35)";
ctx.lineWidth = 1.5;
ctx.strokeRect(x0, y0, w, h);
// Risk score in bottom-right corner
ctx.font = "bold 12px sans-serif";
ctx.fillStyle = THEME === "light" ? "rgba(255,255,255,0.70)" : "rgba(255,255,255,0.65)";
ctx.textAlign = "right";
ctx.textBaseline = "bottom";
ctx.fillText(String(score), x1 - 7, y1 - 5);
}
}
// Zone labels in free cells representative of each zone
const zones = [
{ label: "LOW", imp: 1, lik: 1 }, // score 1
{ label: "MEDIUM", imp: 2, lik: 3 }, // score 6
{ label: "HIGH", imp: 4, lik: 4 }, // score 16
{ label: "CRITICAL", imp: 5, lik: 5 }, // score 25
];
zones.forEach(({ label, imp, lik }) => {
const cx = (x.getPixelForValue(imp - 0.5) + x.getPixelForValue(imp + 0.5)) / 2;
const cy = (y.getPixelForValue(lik + 0.5) + y.getPixelForValue(lik - 0.5)) / 2;
ctx.font = "bold 13px sans-serif";
ctx.textAlign = "center";
ctx.textBaseline = "middle";
ctx.fillStyle = THEME === "light" ? "rgba(255,255,255,0.90)" : "rgba(255,255,255,0.85)";
ctx.fillText(label, cx, cy);
});
ctx.restore();
},
};
// --- Plugin: draw risk item name labels near each marker --------------------
const riskLabels = {
id: "riskLabels",
afterDraw(chart) {
const { ctx, scales: { x, y } } = chart;
ctx.save();
chart.data.datasets.forEach(ds => {
ds.data.forEach(pt => {
const px = x.getPixelForValue(pt.x);
const py = y.getPixelForValue(pt.y);
const label = pt.name;
const above = pt.y <= 3; // high likelihood → point near top → label below
ctx.font = "600 11px sans-serif";
const tw = ctx.measureText(label).width;
const th = 13, pad = 4;
const bw = tw + pad * 2, bh = th + pad;
const bx = px - bw / 2;
const by = above ? py - 18 - bh : py + 18;
// Background pill for legibility
ctx.fillStyle = THEME === "light" ? "rgba(250,248,241,0.92)" : "rgba(26,26,23,0.92)";
ctx.beginPath();
ctx.roundRect(bx, by, bw, bh, 3);
ctx.fill();
ctx.fillStyle = THEME === "light" ? "#1A1A17" : "#F0EFE8";
ctx.textAlign = "center";
ctx.textBaseline = "middle";
ctx.fillText(label, px, by + bh / 2);
});
});
ctx.restore();
},
};
// --- Plugin: zone severity legend box ---------------------------------------
const zoneLegend = {
id: "zoneLegend",
afterDraw(chart) {
const { ctx, chartArea: ca } = chart;
ctx.save();
const entries = [
{ label: "Low (1–4)", score: 2 },
{ label: "Medium (5–9)", score: 7 },
{ label: "High (10–16)", score: 13 },
{ label: "Critical (17–25)", score: 22 },
];
ctx.font = "12px sans-serif";
const maxW = Math.max(...entries.map(e => ctx.measureText(e.label).width));
const swW = 14, swH = 12, gap = 6, lineH = 22, pad = 10;
const boxW = pad * 2 + swW + gap + maxW + 4;
const boxH = pad * 2 + entries.length * lineH - (lineH - swH);
const bx = ca.right - boxW - 10;
const by = ca.bottom - boxH - 10;
// Legend box background
ctx.fillStyle = t.elevatedBg;
ctx.strokeStyle = THEME === "light" ? "rgba(26,26,23,0.15)" : "rgba(240,239,232,0.15)";
ctx.lineWidth = 1;
ctx.beginPath();
ctx.roundRect(bx, by, boxW, boxH, 5);
ctx.fill();
ctx.stroke();
entries.forEach((entry, i) => {
const rowY = by + pad + i * lineH;
// Color swatch
ctx.fillStyle = cellColor(entry.score);
ctx.beginPath();
ctx.roundRect(bx + pad, rowY + (lineH - swH) / 2, swW, swH, 2);
ctx.fill();
// Zone label text
ctx.font = "12px sans-serif";
ctx.fillStyle = THEME === "light" ? "#4A4A44" : "#B8B7B0";
ctx.textAlign = "left";
ctx.textBaseline = "middle";
ctx.fillText(entry.label, bx + pad + swW + gap, rowY + lineH / 2);
});
ctx.restore();
},
};
// --- Mount ------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart ------------------------------------------------------------------
const IMPACT_LABELS = ["", "Negligible", "Minor", "Moderate", "Major", "Catastrophic"];
const LIKELIHOOD_LABELS = ["", "Rare", "Unlikely", "Possible", "Likely", "Almost Certain"];
new Chart(canvas, {
type: "scatter",
data: { datasets },
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "heatmap-risk-matrix · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22, weight: "600" },
padding: { top: 16, bottom: 10 },
},
legend: {
display: true,
position: "bottom",
labels: {
color: t.ink,
font: { size: 15 },
padding: 20,
usePointStyle: true,
pointStyle: "circle",
},
},
tooltip: { enabled: false },
},
scales: {
x: {
type: "linear",
min: 0.5,
max: 5.5,
ticks: {
color: t.inkSoft,
font: { size: 13 },
stepSize: 1,
callback(val) {
const v = Math.round(val);
return v >= 1 && v <= 5 ? IMPACT_LABELS[v] : "";
},
maxRotation: 0,
},
grid: { display: false },
border: { color: t.inkSoft, width: 1.5 },
title: {
display: true,
text: "Impact",
color: t.ink,
font: { size: 15, weight: "600" },
padding: { top: 8 },
},
},
y: {
type: "linear",
min: 0.5,
max: 5.5,
ticks: {
color: t.inkSoft,
font: { size: 13 },
stepSize: 1,
callback(val) {
const v = Math.round(val);
return v >= 1 && v <= 5 ? LIKELIHOOD_LABELS[v] : "";
},
},
grid: { display: false },
border: { color: t.inkSoft, width: 1.5 },
title: {
display: true,
text: "Likelihood",
color: t.ink,
font: { size: 15, weight: "600" },
padding: { bottom: 8 },
},
},
},
layout: {
padding: { top: 8, right: 16, bottom: 8, left: 8 },
},
},
plugins: [matrixBg, riskLabels, zoneLegend],
});
Part of Risk Assessment Matrix (Probability vs Impact) on anyplot.ai.
