Basic Histogram — Apache ECharts

A histogram displays the distribution of a single continuous variable by dividing the data range into bins and showing the frequency (count) of observations in each bin. It reveals the shape of the data distribution, including central tendency, spread, and presence of outliers or multiple modes.

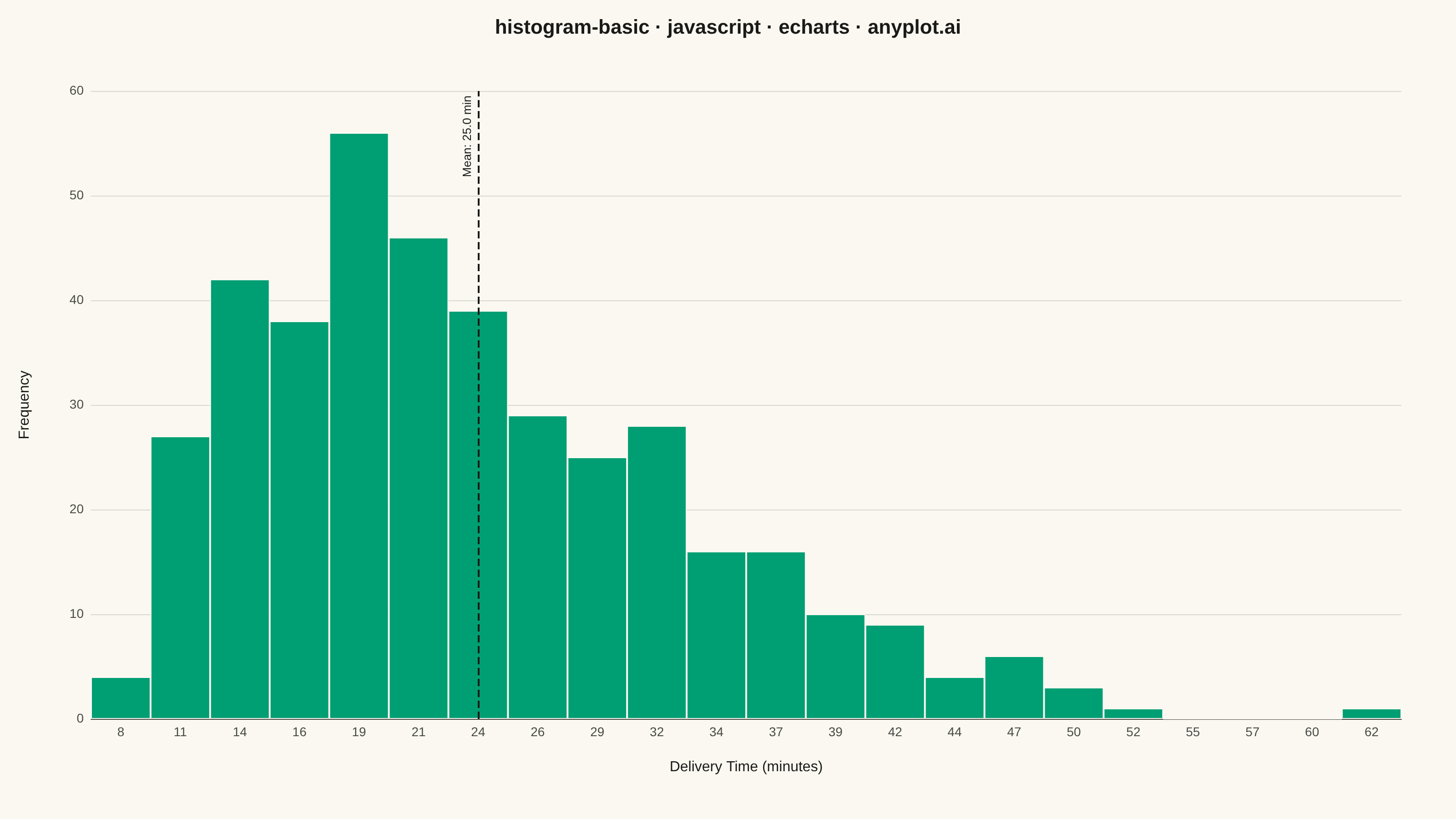

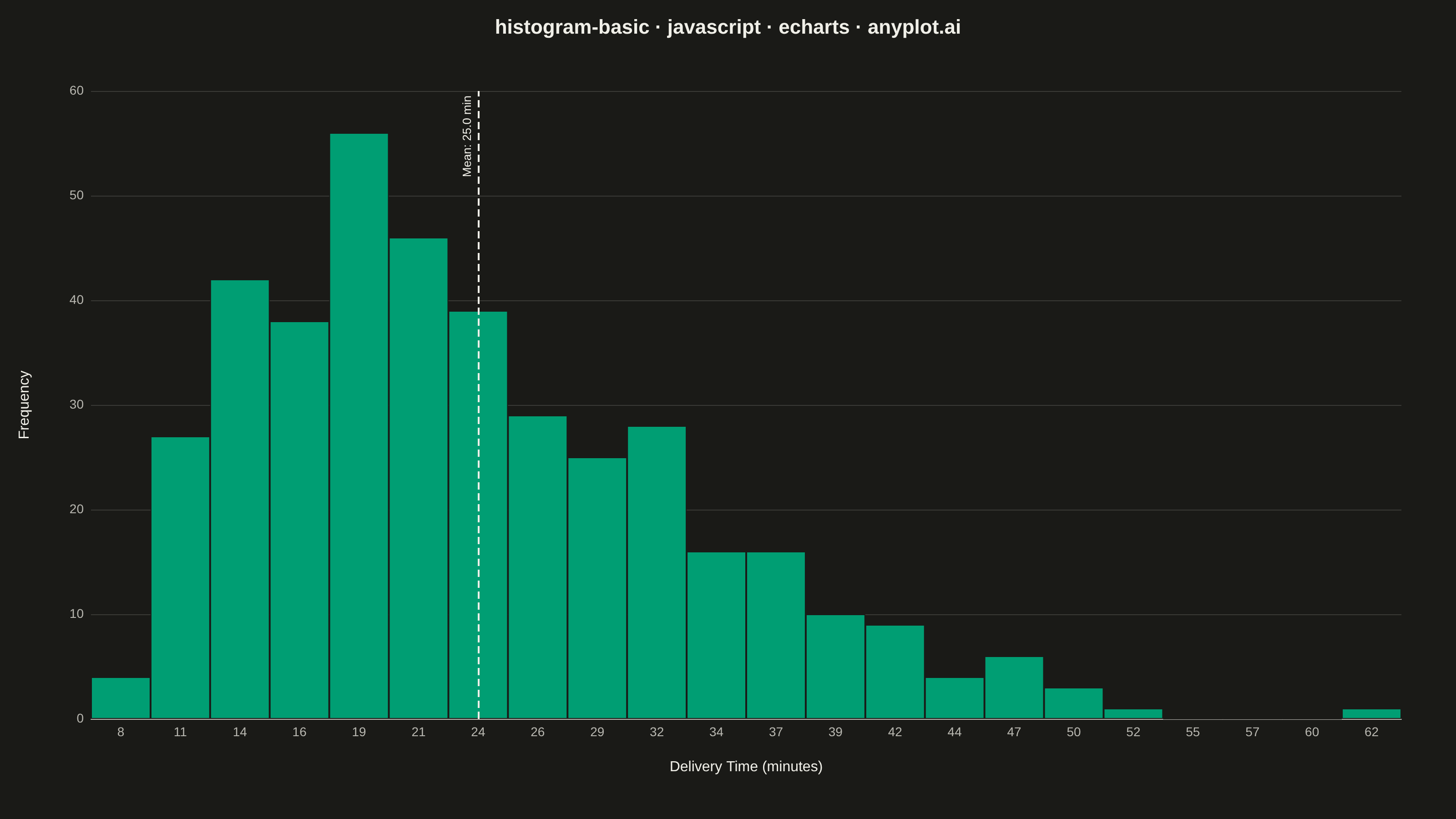

Basic Histogram rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// histogram-basic: Basic Histogram
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-08-26

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ---------------------------------------
// Parcel delivery times (minutes) — right-skewed: most deliveries are quick,
// a long tail of delayed ones (Erlang-distributed via a fixed-seed LCG).
function makeLcg(seed) {
  let state = seed;
  return function random() {
    state = (state * 1664525 + 1013904223) % 4294967296;
    return state / 4294967296;
  };
}
const random = makeLcg(42);

const sampleCount = 400;
const deliveryTimes = [];
for (let i = 0; i < sampleCount; i++) {
  let erlangSum = 0;
  for (let j = 0; j < 3; j++) {
    erlangSum += -Math.log(random());
  }
  deliveryTimes.push(8 + erlangSum * 6);
}

const binCount = 22;
const minValue = Math.min(...deliveryTimes);
const maxValue = Math.max(...deliveryTimes);
const binWidth = (maxValue - minValue) / binCount;
const binCounts = new Array(binCount).fill(0);
deliveryTimes.forEach((value) => {
  const index = Math.min(
    Math.floor((value - minValue) / binWidth),
    binCount - 1,
  );
  binCounts[index]++;
});
const binLabels = binCounts.map((_, i) => Math.round(minValue + i * binWidth));

const mean = deliveryTimes.reduce((sum, v) => sum + v, 0) / deliveryTimes.length;
const meanBinIndex = Math.min(
  Math.floor((mean - minValue) / binWidth),
  binCount - 1,
);

// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option -----------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "histogram-basic · javascript · echarts · anyplot.ai",
    left: "center",
    textStyle: { color: t.ink, fontSize: 22 },
  },
  grid: { left: 100, right: 60, top: 100, bottom: 110 },
  xAxis: {
    type: "category",
    data: binLabels,
    name: "Delivery Time (minutes)",
    nameLocation: "middle",
    nameGap: 45,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14, interval: "auto" },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    min: 0,
    name: "Frequency",
    nameLocation: "middle",
    nameGap: 65,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      type: "bar",
      data: binCounts,
      barCategoryGap: "0%",
      itemStyle: { color: t.palette[0], borderColor: t.pageBg, borderWidth: 1 },
      markLine: {
        symbol: "none",
        silent: true,
        lineStyle: { color: t.ink, type: "dashed", width: 2 },
        label: {
          formatter: `Mean: ${mean.toFixed(1)} min`,
          color: t.ink,
          fontSize: 13,
          position: "insideEndTop",
        },
        data: [{ xAxis: meanBinIndex }],
      },
    },
  ],
});

Part of Basic Histogram on anyplot.ai.
