Histogram with KDE Overlay — Chart.js

A histogram with kernel density estimate (KDE) overlay combines discrete binning with continuous density estimation to visualize the distribution of continuous data. The histogram bars show frequency counts in each bin while the smooth KDE curve reveals the underlying probability density, making it easier to perceive the true shape of the distribution without binning artifacts.

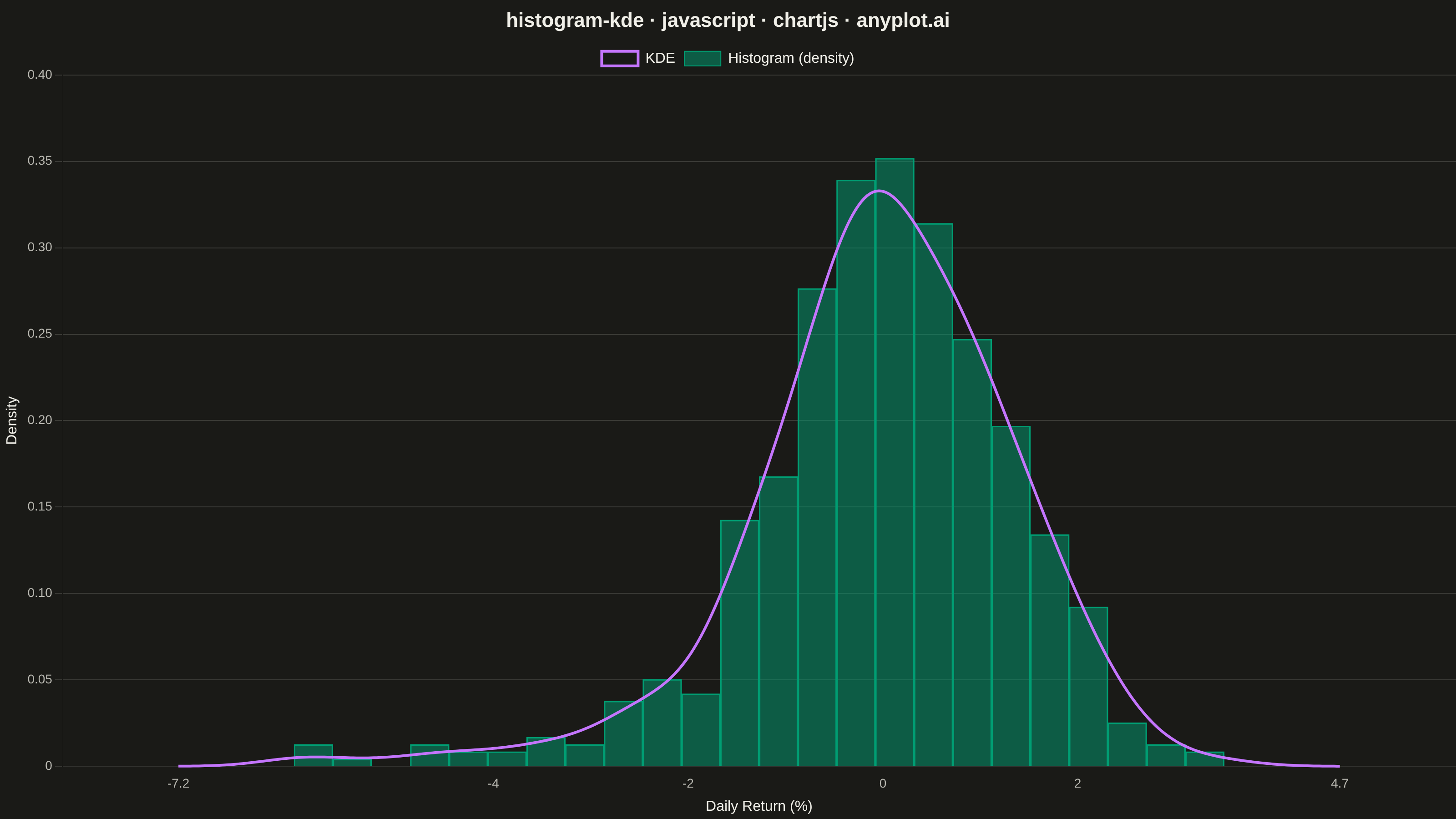

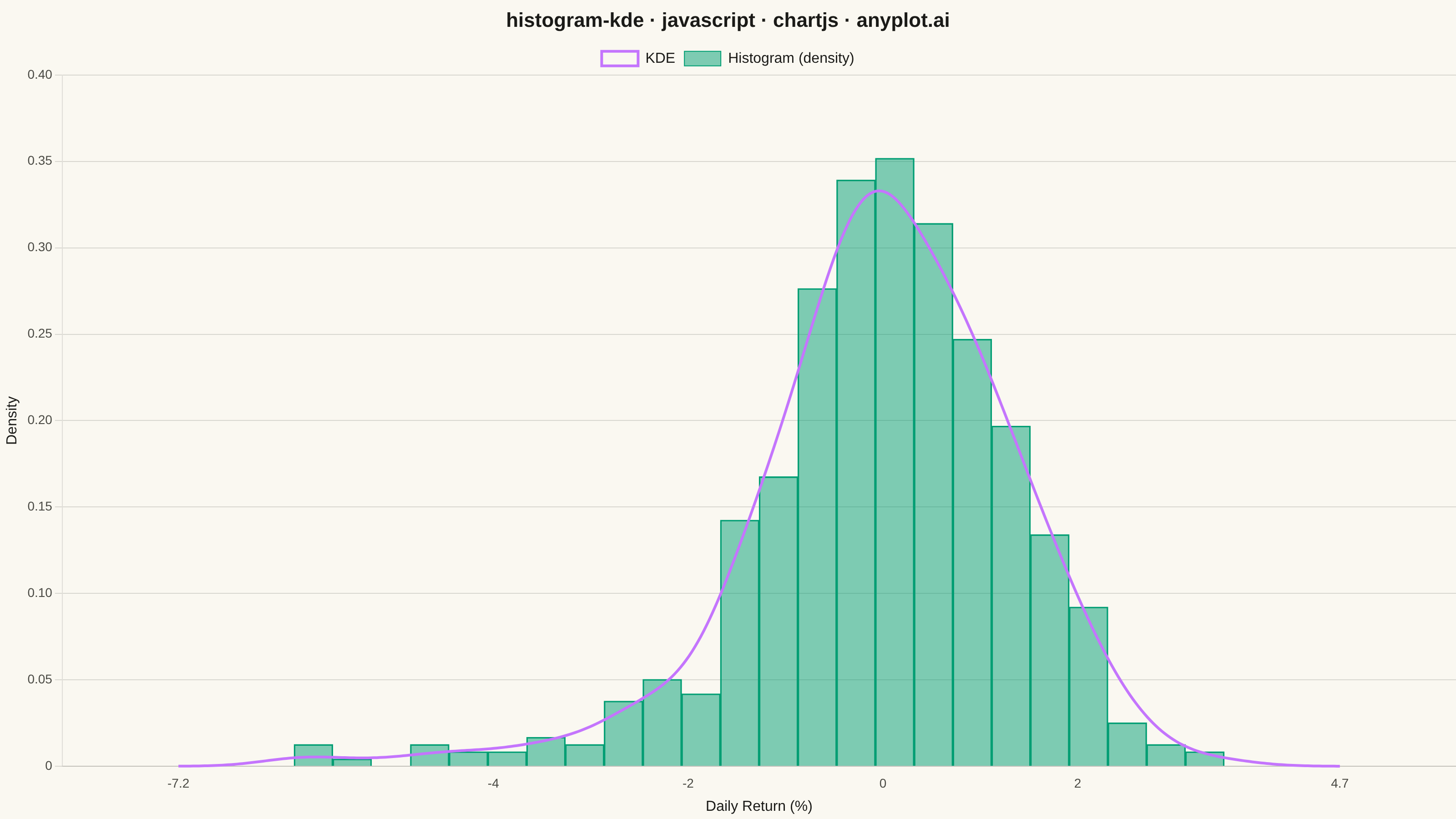

Histogram with KDE Overlay rendered with Chart.js

JavaScript source (Chart.js)

// anyplot.ai
// histogram-kde: Histogram with KDE Overlay
// Library: chartjs 4.4.7 | JavaScript 22.23.1
// Quality: 83/100 | Created: 2026-08-05

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// --- Data: simulated daily portfolio returns (%), deterministic LCG ---------
function makeLcg(seed) {
  let state = seed >>> 0;
  return function rand() {
    state = (state * 1664525 + 1013904223) >>> 0;
    return state / 4294967296;
  };
}
const rand = makeLcg(42);

function randNormal() {
  let u = 0;
  let v = 0;
  while (u === 0) u = rand();
  while (v === 0) v = rand();
  return Math.sqrt(-2 * Math.log(u)) * Math.cos(2 * Math.PI * v);
}

const n = 600;
const returns = [];
for (let i = 0; i < n; i++) {
  // 92% calm-market days, 8% drawdown days (fat left tail)
  const isDrawdown = rand() < 0.08;
  returns.push(
    isDrawdown ? -3.2 + randNormal() * 2.0 : 0.15 + randNormal() * 1.1,
  );
}

// --- Histogram (density-scaled) ---------------------------------------------
const dataMin = Math.min(...returns);
const dataMax = Math.max(...returns);
const binCount = 24;
const binWidth = (dataMax - dataMin) / binCount;
const counts = new Array(binCount).fill(0);
returns.forEach((v) => {
  const idx = Math.min(binCount - 1, Math.floor((v - dataMin) / binWidth));
  counts[idx] += 1;
});
const histData = counts.map((c, i) => ({
  x: dataMin + (i + 0.5) * binWidth,
  y: c / (n * binWidth),
}));

// --- KDE overlay (Gaussian kernel, Silverman's rule bandwidth) --------------
const mean = returns.reduce((a, b) => a + b, 0) / n;
const variance = returns.reduce((a, b) => a + (b - mean) ** 2, 0) / (n - 1);
const std = Math.sqrt(variance);
const bandwidth = 1.06 * std * Math.pow(n, -1 / 5);

function gaussianKernel(z) {
  return Math.exp(-0.5 * z * z) / Math.sqrt(2 * Math.PI);
}
function kde(x) {
  let sum = 0;
  for (let i = 0; i < n; i++)
    sum += gaussianKernel((x - returns[i]) / bandwidth);
  return sum / (n * bandwidth);
}

const gridPoints = 200;
const gridMin = dataMin - 3 * bandwidth;
const gridMax = dataMax + 3 * bandwidth;
const gridStep = (gridMax - gridMin) / (gridPoints - 1);
const kdeData = Array.from({ length: gridPoints }, (_, i) => {
  const x = gridMin + i * gridStep;
  return { x, y: kde(x) };
});

// --- Mount -------------------------------------------------------------------
function hexToRgba(hex, alpha) {
  const r = parseInt(hex.slice(1, 3), 16);
  const g = parseInt(hex.slice(3, 5), 16);
  const b = parseInt(hex.slice(5, 7), 16);
  return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}

const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart -------------------------------------------------------------------
new Chart(canvas, {
  data: {
    datasets: [
      {
        type: "bar",
        label: "Histogram (density)",
        data: histData,
        backgroundColor: hexToRgba(t.palette[0], 0.5),
        borderColor: t.palette[0],
        borderWidth: 1,
        barPercentage: 1.0,
        categoryPercentage: 1.0,
        order: 1,
      },
      {
        type: "line",
        label: "KDE",
        data: kdeData,
        borderColor: t.palette[1],
        backgroundColor: "transparent",
        borderWidth: 3,
        pointRadius: 0,
        tension: 0.3,
        order: 0,
      },
    ],
  },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    plugins: {
      title: {
        display: true,
        text: "histogram-kde · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22 },
      },
      legend: {
        labels: { color: t.ink, font: { size: 16 } },
      },
    },
    scales: {
      x: {
        type: "linear",
        min: gridMin,
        max: gridMax,
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { display: false },
        title: {
          display: true,
          text: "Daily Return (%)",
          color: t.ink,
          font: { size: 16 },
        },
      },
      y: {
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
        title: {
          display: true,
          text: "Density",
          color: t.ink,
          font: { size: 16 },
        },
        beginAtZero: true,
      },
    },
  },
});

Part of Histogram with KDE Overlay on anyplot.ai.
