Histogram with KDE Overlay — Highcharts

A histogram with kernel density estimate (KDE) overlay combines discrete binning with continuous density estimation to visualize the distribution of continuous data. The histogram bars show frequency counts in each bin while the smooth KDE curve reveals the underlying probability density, making it easier to perceive the true shape of the distribution without binning artifacts.

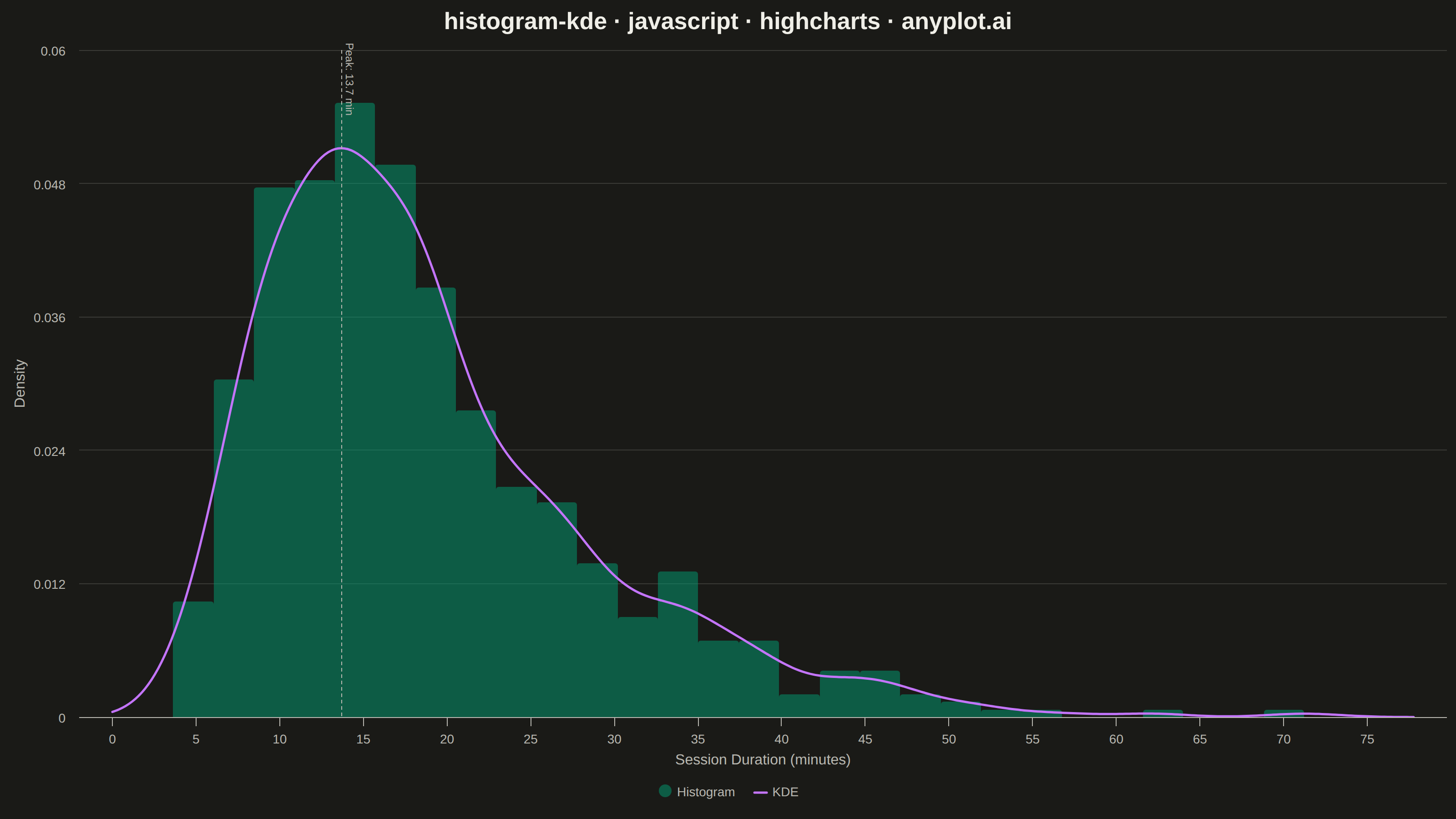

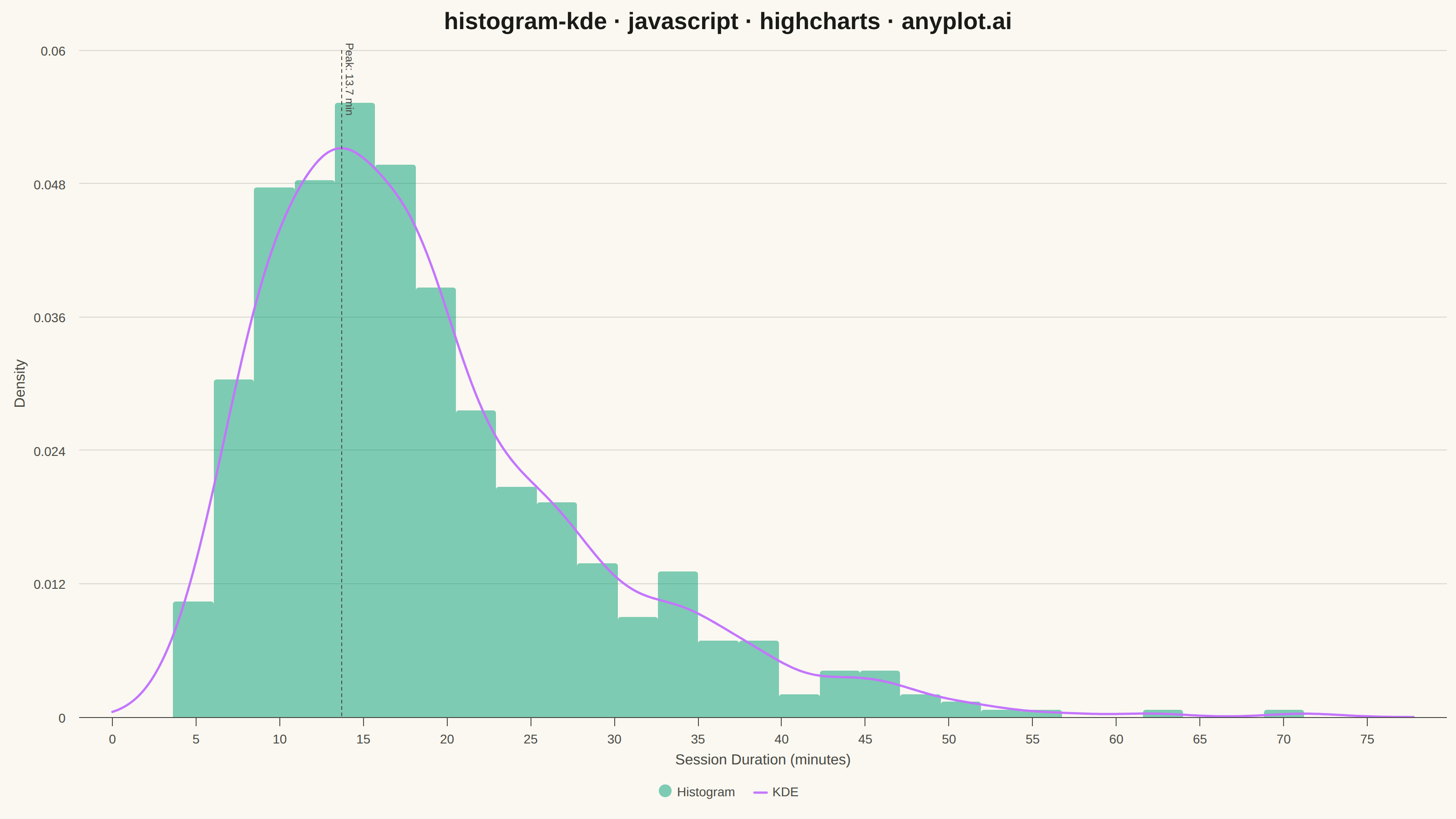

Histogram with KDE Overlay rendered with Highcharts

JavaScript source (Highcharts)

// anyplot.ai
// histogram-kde: Histogram with KDE Overlay
// Library: highcharts 12.6.0 | JavaScript 22.23.1
// Quality: 90/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Tiny LCG PRNG + Box-Muller — the browser has no seeded RNG.
function makeLcg(seed) {
  let state = seed >>> 0;
  return function () {
    state = (1103515245 * state + 12345) >>> 0;
    return state / 4294967296;
  };
}
const rand = makeLcg(42);
function randNormal() {
  let u1 = 0;
  while (u1 === 0) u1 = rand();
  const u2 = rand();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

// Marketing analytics scenario: right-skewed customer session durations.
const sampleSize = 600;
const sessionDurations = [];
for (let i = 0; i < sampleSize; i++) {
  sessionDurations.push(Math.exp(2.85 + 0.5 * randNormal()));
}

// --- Histogram (density-scaled, not counts) ---------------------------------
const dataMin = Math.min(...sessionDurations);
const dataMax = Math.max(...sessionDurations);
const binCount = 28;
const binWidth = (dataMax - dataMin) / binCount;
const counts = new Array(binCount).fill(0);
sessionDurations.forEach((v) => {
  const idx = Math.min(binCount - 1, Math.floor((v - dataMin) / binWidth));
  counts[idx]++;
});
const histogramData = counts.map((count, i) => [
  dataMin + (i + 0.5) * binWidth,
  count / (sampleSize * binWidth),
]);

// --- Kernel density estimate (Gaussian kernel, Silverman's rule bandwidth) --
const mean = sessionDurations.reduce((a, b) => a + b, 0) / sampleSize;
const variance =
  sessionDurations.reduce((a, b) => a + (b - mean) ** 2, 0) / (sampleSize - 1);
const std = Math.sqrt(variance);
const sorted = [...sessionDurations].sort((a, b) => a - b);
function quantile(arr, q) {
  const pos = (arr.length - 1) * q;
  const base = Math.floor(pos);
  const rest = pos - base;
  return arr[base + 1] !== undefined
    ? arr[base] + rest * (arr[base + 1] - arr[base])
    : arr[base];
}
const iqr = quantile(sorted, 0.75) - quantile(sorted, 0.25);
const bandwidth =
  0.9 * Math.min(std, iqr / 1.34) * Math.pow(sampleSize, -0.2);

const gridPoints = 200;
const kdeMin = Math.max(0, dataMin - 3 * bandwidth);
const kdeMax = dataMax + 3 * bandwidth;
const kdeData = [];
let peakIdx = 0;
for (let i = 0; i < gridPoints; i++) {
  const x = kdeMin + ((kdeMax - kdeMin) * i) / (gridPoints - 1);
  let sum = 0;
  for (let j = 0; j < sampleSize; j++) {
    const u = (x - sessionDurations[j]) / bandwidth;
    sum += Math.exp(-0.5 * u * u);
  }
  kdeData.push([x, sum / (sampleSize * bandwidth * Math.sqrt(2 * Math.PI))]);
  if (kdeData[i][1] > kdeData[peakIdx][1]) peakIdx = i;
}
const peakX = kdeData[peakIdx][0];

// --- Chart -------------------------------------------------------------------
function hexToRgba(hex, alpha) {
  const r = parseInt(hex.slice(1, 3), 16);
  const g = parseInt(hex.slice(3, 5), 16);
  const b = parseInt(hex.slice(5, 7), 16);
  return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}

Highcharts.chart("container", {
  chart: {
    type: "column",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "histogram-kde · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "26px", fontWeight: "600" },
  },
  xAxis: {
    type: "linear",
    title: {
      text: "Session Duration (minutes)",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineWidth: 0,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    plotLines: [
      {
        value: peakX,
        color: t.inkSoft,
        dashStyle: "Dash",
        width: 1,
        zIndex: 5,
        label: {
          text: `Peak: ${peakX.toFixed(1)} min`,
          style: { color: t.inkSoft, fontSize: "12px" },
          y: -8,
        },
      },
    ],
  },
  yAxis: {
    title: {
      text: "Density",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    gridLineColor: t.grid,
    lineColor: t.inkSoft,
    tickAmount: 6,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  tooltip: {
    headerFormat: "",
    pointFormat: "{series.name}: <b>{point.y:.3f}</b>",
  },
  plotOptions: {
    series: { animation: false },
    column: { pointPadding: 0, groupPadding: 0, borderWidth: 0 },
  },
  series: [
    {
      name: "Histogram",
      type: "column",
      data: histogramData,
      pointRange: binWidth,
      color: hexToRgba(t.palette[0], 0.5),
    },
    {
      name: "KDE",
      type: "spline",
      data: kdeData,
      color: t.palette[1],
      lineWidth: 2.5,
      marker: { enabled: false },
    },
  ],
});
