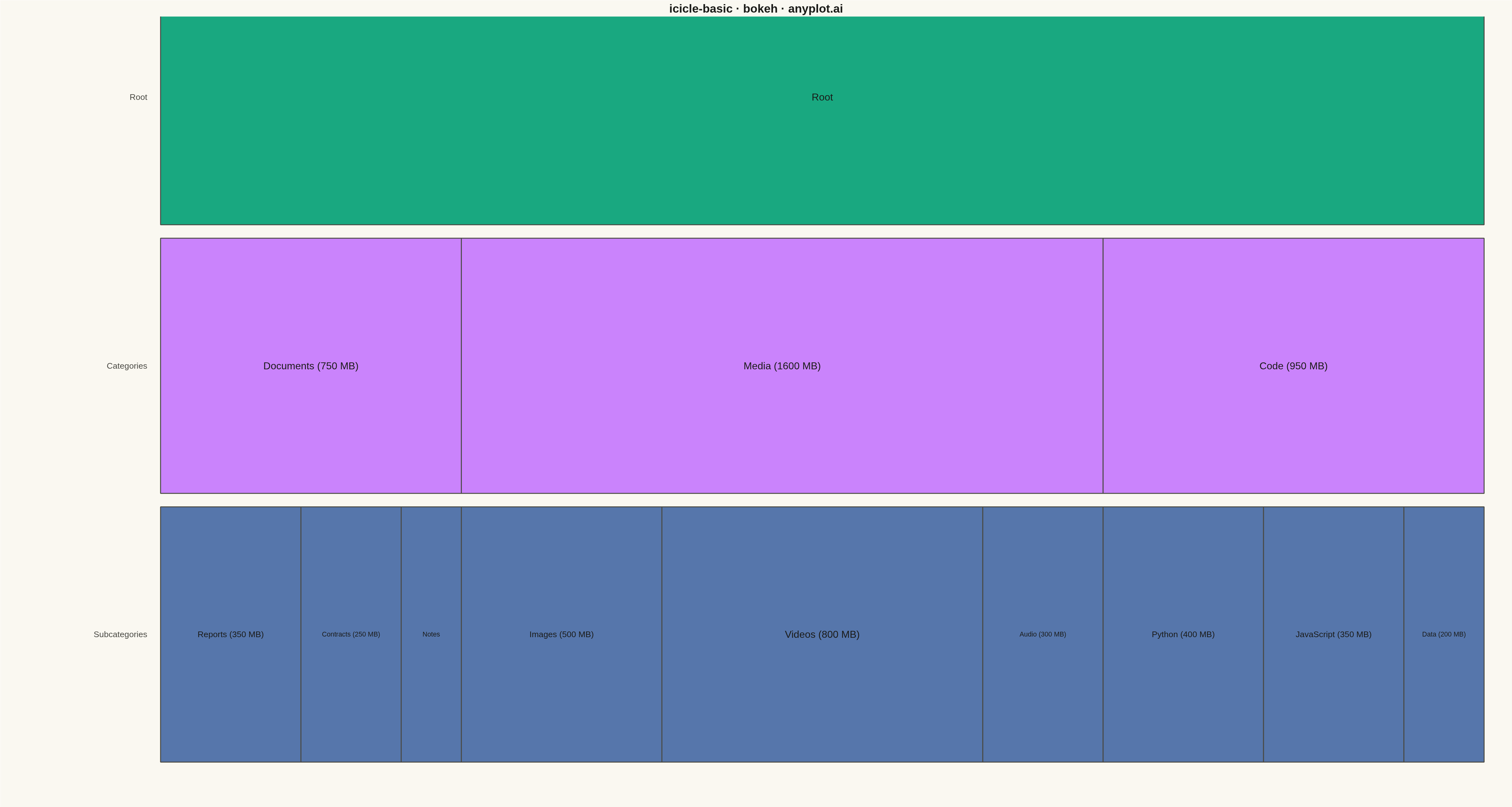

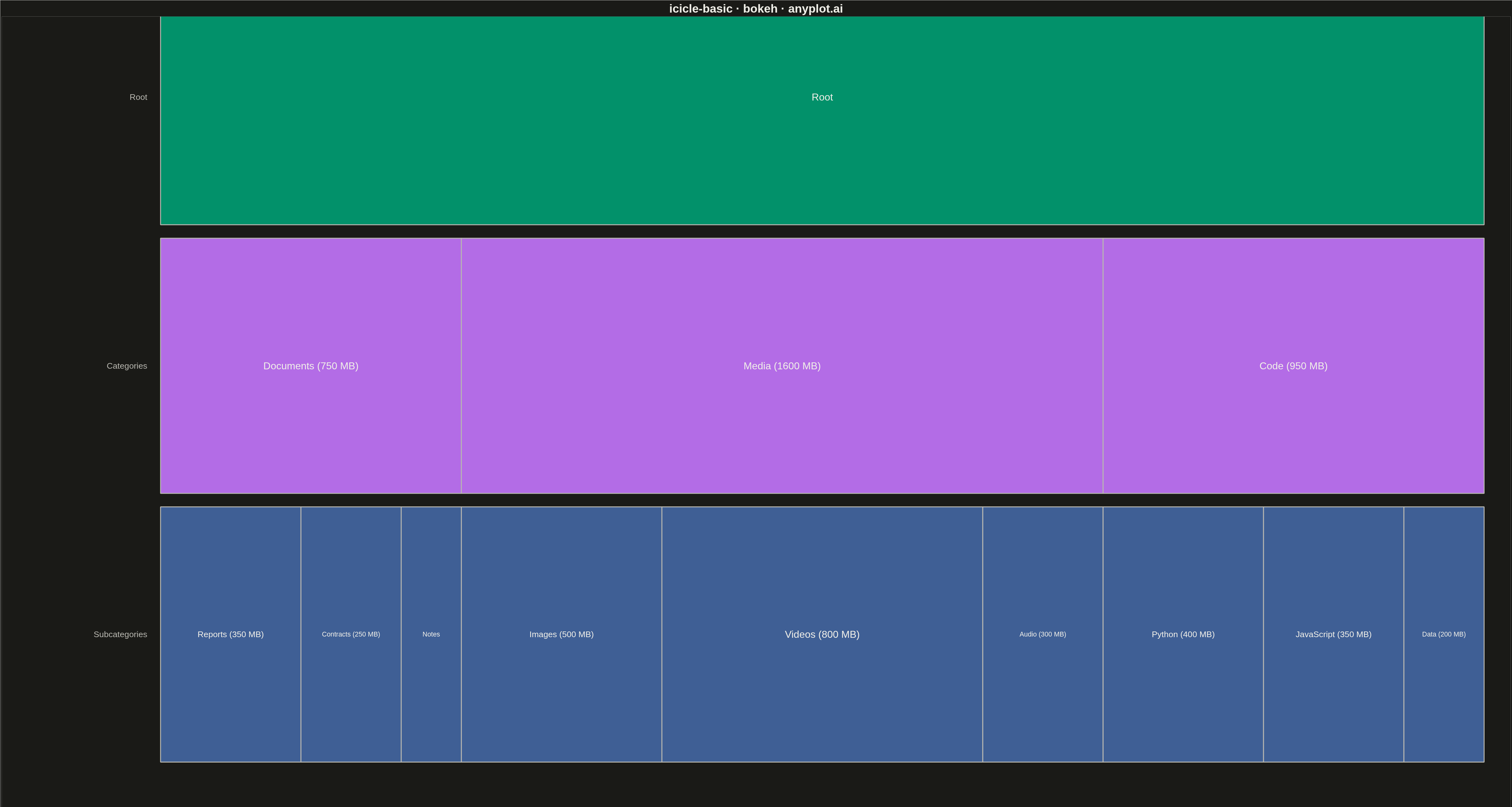

An icicle chart displaying hierarchical data as adjacent rectangles in a layered structure, where each rectangle's size represents its value in the hierarchy. Unlike treemaps that nest rectangles, icicle charts stack them in rows (horizontal) or columns (vertical), making parent-child relationships explicitly visible through spatial adjacency. This layout excels at showing both the hierarchy levels and the proportional values simultaneously.
""" anyplot.ai
icicle-basic: Basic Icicle Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-13
"""
import os
import time
from pathlib import Path
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, Label
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]
# Data - File system hierarchy with nested folders and file sizes
nodes = [
{"name": "Root", "parent": None, "value": 0},
{"name": "Documents", "parent": "Root", "value": 0},
{"name": "Media", "parent": "Root", "value": 0},
{"name": "Code", "parent": "Root", "value": 0},
{"name": "Reports", "parent": "Documents", "value": 350},
{"name": "Contracts", "parent": "Documents", "value": 250},
{"name": "Notes", "parent": "Documents", "value": 150},
{"name": "Images", "parent": "Media", "value": 500},
{"name": "Videos", "parent": "Media", "value": 800},
{"name": "Audio", "parent": "Media", "value": 300},
{"name": "Python", "parent": "Code", "value": 400},
{"name": "JavaScript", "parent": "Code", "value": 350},
{"name": "Data", "parent": "Code", "value": 200},
]
# Build lookup and children map
node_dict = {n["name"]: n for n in nodes}
children = {n["name"]: [] for n in nodes}
for n in nodes:
if n["parent"]:
children[n["parent"]].append(n["name"])
# Calculate leaf values for parent nodes (sum of children) - inline recursion
def calc_value(name):
if children[name]:
return sum(calc_value(c) for c in children[name])
return node_dict[name]["value"]
for n in nodes:
n["computed_value"] = calc_value(n["name"])
# Assign levels (depth in tree) - inline recursion
def assign_level(name, level):
node_dict[name]["level"] = level
for c in children[name]:
assign_level(c, level + 1)
assign_level("Root", 0)
max_level = max(n["level"] for n in nodes)
# Assign colors by level using Okabe-Ito palette
level_colors = []
for i in range(max_level + 1):
level_colors.append(IMPRINT[i % len(IMPRINT)])
# Calculate icicle layout (horizontal, top-down)
def layout_icicle(name, x_start, x_end, rects):
node = node_dict[name]
level = node["level"]
rect = {
"name": name,
"level": level,
"x_start": x_start,
"x_end": x_end,
"y_start": max_level - level,
"y_end": max_level - level + 1,
"value": node["computed_value"],
"color": level_colors[min(level, len(level_colors) - 1)],
}
rects.append(rect)
if children[name]:
total_child_value = sum(node_dict[c]["computed_value"] for c in children[name])
current_x = x_start
for c in children[name]:
child_value = node_dict[c]["computed_value"]
child_width = (x_end - x_start) * (child_value / total_child_value)
layout_icicle(c, current_x, current_x + child_width, rects)
current_x += child_width
rects = []
layout_icicle("Root", 0, 100, rects)
# Prepare data for Bokeh
x_centers = [(r["x_start"] + r["x_end"]) / 2 for r in rects]
y_centers = [(r["y_start"] + r["y_end"]) / 2 for r in rects]
widths = [r["x_end"] - r["x_start"] for r in rects]
heights = [0.95 for r in rects]
colors = [r["color"] for r in rects]
names = [r["name"] for r in rects]
values = [r["value"] for r in rects]
source = ColumnDataSource(
data={
"x": x_centers,
"y": y_centers,
"width": widths,
"height": heights,
"color": colors,
"name": names,
"value": values,
}
)
# Create figure
p = figure(
width=4800,
height=2700,
title="icicle-basic · bokeh · anyplot.ai",
x_range=(-12, 102),
y_range=(-0.3, max_level + 0.8),
tools="",
toolbar_location=None,
)
# Draw rectangles
p.rect(
x="x",
y="y",
width="width",
height="height",
source=source,
fill_color="color",
line_color=INK_SOFT,
line_width=3,
fill_alpha=0.9,
)
# Add labels for rectangles with sufficient width
for r in rects:
rect_width = r["x_end"] - r["x_start"]
x_center = (r["x_start"] + r["x_end"]) / 2
y_center = (r["y_start"] + r["y_end"]) / 2
if rect_width > 4:
font_size = "24pt" if rect_width > 20 else ("20pt" if rect_width > 10 else "16pt")
label_text = r["name"]
if r["level"] > 0 and rect_width > 6:
label_text = f"{r['name']} ({r['value']} MB)"
label = Label(
x=x_center,
y=y_center,
text=label_text,
text_align="center",
text_baseline="middle",
text_font_size=font_size,
text_color=INK,
)
p.add_layout(label)
# Styling
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.title.align = "center"
# Hide axes
p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.visible = False
p.ygrid.visible = False
# Theme-adaptive background and outline
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None
# Add level labels on the left
level_labels = ["Root", "Categories", "Subcategories"]
for i, label_text in enumerate(level_labels[: max_level + 1]):
label = Label(
x=-1,
y=max_level - i + 0.5,
text=label_text,
text_align="right",
text_baseline="middle",
text_font_size="20pt",
text_color=INK_SOFT,
)
p.add_layout(label)
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Basic Icicle Chart on anyplot.ai.
